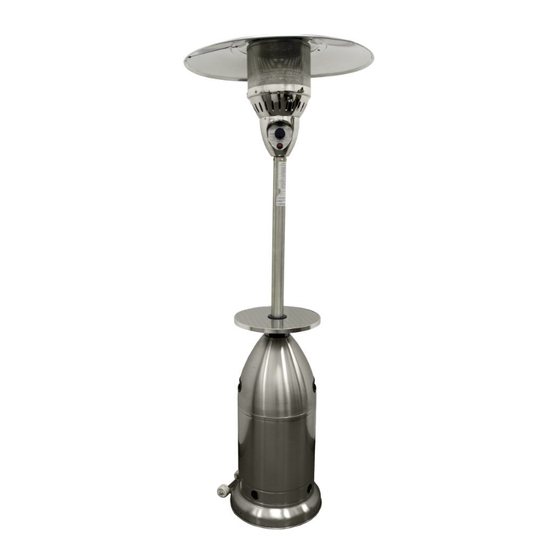

Outdoor patio heater

Advertisement

Quick Links

ANS Z83.26-2014/CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heaters
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-775-1330, 7 a.m. - 4 p.m., PST, Monday - Friday.
Purchase Date

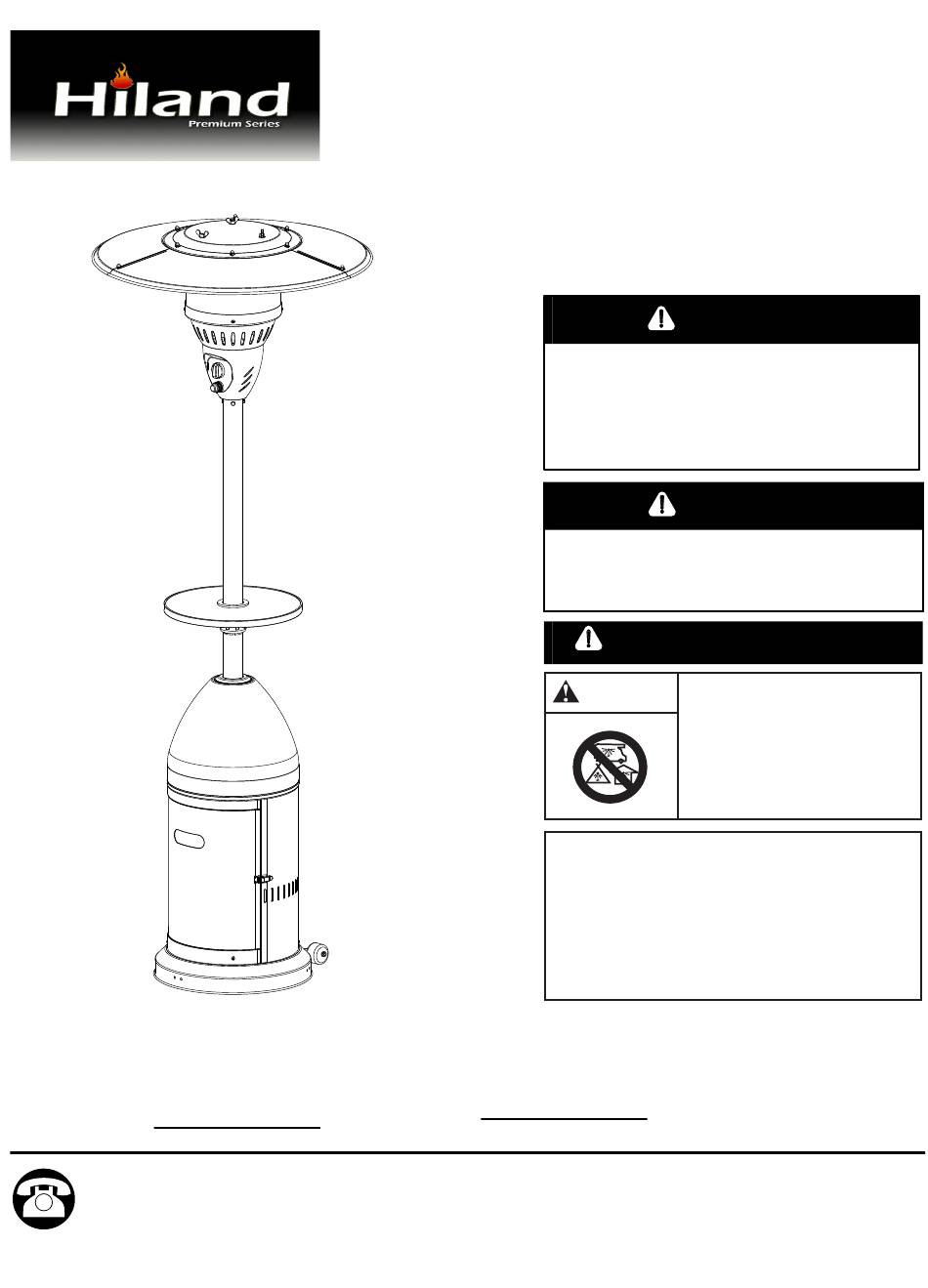

1
OUTDOOR
PATIO HEATER
MODEL #HLDS01-TSST
DANGER
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call you gas supplier or fire department.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING:
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent or home.
Precaution!
The Powder Coating paint process has become the most
common widely used application in the outdoor furniture
category. Unfortunately powder coating is extremely
sensitive to Humidity and Moisture. A simple process to
protect your furniture, especially flat surfaces is to apply a
simple coat of good quality car wax prior to using. If this
process is done every few months it will protect your
furniture for years to come.
HLDS01-TCGT
HLDS01-TMT
For Outdoor Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premium HLDS01-TSST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hiland Premium HLDS01-TSST

  • Page 1 OUTDOOR PATIO HEATER MODEL #HLDS01-TSST HLDS01-TCGT HLDS01-TMT DANGER FOR YOUR SAFETY If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call you gas supplier or fire department. WARNING Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 2: Package Contents

    PACKAGE CONTENTS QUANTITY Reflector Panel Reflector Plate Reflector Stud Head Assembly Screw Coupler Tabletop Tightening Spacer Fastening Nut Deck Ring Reinforced Ring Cylinder Housing Post Gas Hose Regulator Base Wheel Kit...
  • Page 3: Safety Information

    HARDWARE CONTENTS (shown actual size) Screw Flange Small flat Washer Φ6 M5 X 8 Bolt Bolt M6 X 10 washer Φ6 Qty. 9 Washer Φ8 Qty. 4 Reflector M8 x 16 Qty. 2 Qty. 4 Qty. 4 Qty. 9 spacer Qty.
  • Page 4 SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This heater is a combustion appliance. All paper or cardboard, a safe distance away from the combustion appliances produce carbon monoxide heater as recommended by the instructions.
  • Page 5: Burn Hazard

    SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”...
  • Page 6 ASSEMBLY INSTRUCTIONS 1. Attach wheel assembly (P) to base (O). Line up holes in wheel bracket with corresponding holes in base, insert two bolts M8 x 16 (BB) through holes, and finger tighten two M8 flange nuts (AA). Be sure that the wheel assembly is parallel to the base, and fully tighten bolts.
  • Page 7 ASSEMBLY INSTRUCTIONS 4. Attach post to cylinder housing using the reinforced ring (NN), four M6 X 10 bolts (DD) and small flat washers Φ6 (EE). Fasten them and cover with the deck ring (OO). Hardware Used Bolt M6 X 10 Small flat washer Φ6 Reinforced ring Deck ring...
  • Page 8 ASSEMBLY INSTRUCTIONS 6. Attach reflector spacers (FF) and three washers Ø8 (GG) to screen cover. Tighten the reflector spacers. Hardware Used Reflector Spacer Washer Φ8 7. Attach head assembly to post. 7-1. Unscrew four stainless steel bolts (LL). Hardware Used Stainless steel bolt 7-2.
  • Page 9 ASSEMBLY INSTRUCTIONS 8. WARNING:Remove protective cover before assembling. Note: If necessary for proper alignment of reflector sections, loosen each bolt prior to further assembly and retighten after sections are aligned. 9. 9-1.Slide two reflector panels together. Insert one screw M6 X 10 (II). Slide one washer Φ 6 (HH) over threaded end of screw M6 X 10 (II) and...
  • Page 10 ASSEMBLY INSTRUCTIONS 10. Support heater. Slide three washers washer Φ8 (GG) over threaded end of spacer. Locate reflector assembly on 3 spacers. Install three washers Φ8 on spacers and securely tighten wing nuts (KK) but do not overtighten. Hardware Used Washer Φ8 Wing nut 11.
  • Page 11 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
  • Page 12 OPERATION INSTRUCTIONS Leak Check WARNING • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the heater until all connections have been leak tested and do not leak. Regulator / Cylinder connection 1.
  • Page 13 OPERATION INSTRUCTIONS DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed.
  • Page 14 OPERATION INSTRUCTIONS 5. Push and release the igniter button until pilot flame is visible through viewing hole. 6. Once the pilot is lit, continue to depress the control knob for 30 seconds. 7. If the pilot does not stay lit, repeat steps 4 to 6. 8.
  • Page 15: For Your Safety

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When heater is ON: Emitter screen will become bright red due to intense heat.
  • Page 16: Care And Maintenance

    OPERATION INSTRUCTIONS 9. Heater is away from gasoline or other flammable liquids or vapors. 10. Heater is away from windows, air intake openings, sprinklers and other water sources. 11. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials. 12.
  • Page 17 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Heater does NOT reach the desired temperature. Heater glow is excessively uneven. Heater makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use.
  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Cylinder valve is closed Open valve Clean or replace orifice or Blockage in orifice or pilot tube pilot tube Open gas line and bleed it Pilot won’t light Air in gas line (pressing control knob in) for not more than 1 - 2 minutes or until you smell gas Low gas pressure with cylinder valve...
  • Page 19 ONE-YEAR LIMITED WARRANTY CUSTOMERS IN USA Do not return this product to the store where you purchased it. Please call 1-888-775-1330 for assistance. CUSTOMERS IN CANADA Only return this product to the store if it was purchased within 90 days. If you have problems after 90 days of purchase, please CALL 1-888-775-1330.
  • Page 20: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-775-1330, 7 a.m. - 4 p.m., PST, Monday - Friday. QUANTITY Reflector Panel Reflector Plate Reflector Stud Head Assembly Screw Coupler Tabletop Tightening Spacer Fastening Nut Deck Ring Reinforced Ring Cylinder Housing Post...
