Hiland HLDS032 Quick Manual

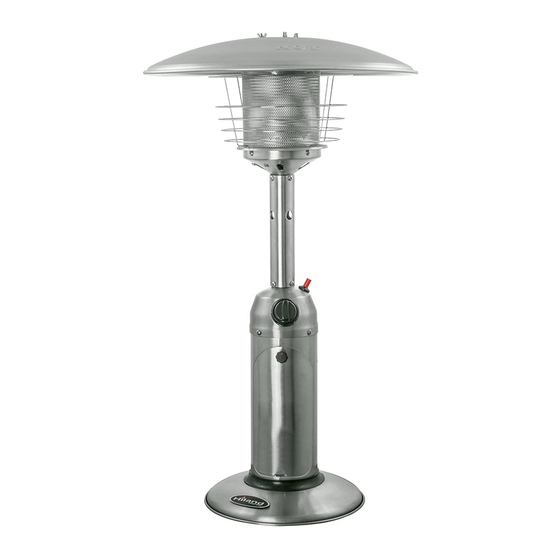

Premium series tabletop patio heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

TABLETOP
PATIO HEATER
MODEL # HLDS032
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-775-1330, 8 a.m. - 4 p.m., PST, Monday - Friday.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HLDS032 and is the answer not in the manual?

Questions and answers

Related Manuals for Hiland HLDS032

Summary of Contents for Hiland HLDS032

  • Page 1 TABLETOP PATIO HEATER MODEL # HLDS032 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-775-1330, 8 a.m. - 4 p.m., PST, Monday - Friday.

  • Page 2: Package Contents

    PACKAGE CONTENTS QUANTITY QUANTITY Reflector Emitter Wire Guard Access Panel Base Ring Weight Post with Burner Assembly Heater Housing...

  • Page 3: Safety Information

    HARDWARE CONTENTS (shown actual size) Castle Nuts Washer M5 X 8 3/16 in. Washers Nuts Qty. 3 Qty. 1 Bolt Stainless Qty. 6 Qty. 3 Qty. 1 Bolts Reflector Qty. 8 spacers M6 X 20 Bolt Qty. 3 Qty. 4 M5 Nuts Wrench Qty.

  • Page 4: Carbon Monoxide Hazard

    SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This heater is a combustion appliance. All paper or cardboard, a safe distance away from the combustion appliances produce carbon monoxide heater as recommended by the instructions.

  • Page 5: Burn Hazard

    SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”...
  • Page 6 ASSEMBLY INSTRUCTIONS 1. Attach post with burner assembly (G) onto heater housing (H), using four 3/16 in. Stainless bolts (FF) and M5X8 bolt (GG) M5 nut (II) washer (HH). Keep the access panel (D) open. Hardware Used 3/16 in. Stainless Bolts M5X8 Bolt M5 Nut Washer...
  • Page 7 ASSEMBLY INSTRUCTIONS 4. Insert ends of wire guard (C) into holes in (G). 5. Put 3 washers (CC) into the top of support bolts. Attach reflector to emitter assembly, using 3 nuts (AA) and 3 washers (CC). Hardware Used Castle Nuts Washers 6.
  • Page 8 ASSEMBLY INSTRUCTIONS 7. Gas Tank Assembly The propane gas and cylinder are sold separately. Use a standard 1.02 lb. propane cylinder only. Store the appliance indoors only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated orientation to provide area out of the reach of children.
  • Page 9 ASSEMBLY INSTRUCTIONS Move the burner control knob to the off position. Fix the 1.02 lb. propane cylinder to the regulator (rotate the propane cylinder clockwise toward the regulator connecting until tight). Close the door plate and lock it with the handle. Disconnect the cylinder when the appliance is not used.
  • Page 10 OPERATION INSTRUCTIONS Portable Heater Location CEILING 1. This portable heater is intended for outdoor use only. Always ensure adequate fresh air ventilation. 24 in. 2. Always maintain proper clearance to combustible materials: a minimum of 24 in. from the top and 36 in. from the sides 36 in.

  • Page 11: Care And Maintenance

    OPERATION INSTRUCTIONS Turning ON the Heater 1. Turn on the valve on the gas supply cylinder completely. 2. Firmly press down and turn the variable control knob approximately 45° (counterclockwise). 3. Press down the variable control knob and hold for 20 seconds. While holding down the variable control knob, press the igniter button several times until the pilot flame comes on.After lighting the pilot, wait 15 seconds to heat the thermocouple, before releasing the control knob.
  • Page 12 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Heater does NOT reach the desired temperature. Heater glow is excessively uneven. Heater makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use.

  • Page 13: Troubleshooting

    TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-888-775-1330, 8 a.m. - 4 p.m. (PST), Monday - Friday. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Cylinder valve is closed Open valve Clean or replace orifice or Blockage in orifice or pilot tube pilot tube Open gas line and bleed it...
  • Page 14 ONE-YEAR LIMITED WARRANTY CUSTOMERS IN USA Do not return this product to the store where you purchased it. Please call 1-888-775-1330 for assistance. IMPORTANT This product is inspected, tested and carefully packaged to minimize the chance of damage during shipment. If a part (excluding light bulbs and fuses*) within one year from the date of purchase proves to be defective in material or fabrication under normal use, the part will be repaired or replaced.

  • Page 15: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-775-1330, 8 a.m. - 4 p.m., PST, Monday - Friday. QUANTITY QUANTITY Castle Nuts 3/16 in. Stainless Bolts Post with Burner Assembly Reflector Washers M5 X 8 Bolt Reflector Spacers Washer Emitter...
