Precaution!
The Powder Coating paint process has become the
most common widely used application in the outdoor
furniture category. Unfortunately powder coating is
extremely sensitive to Humidity and Moisture. A
simple process to protect your furniture, especially
flat surfaces is to apply a simple coat of good quality
car wax prior to using. If this process is done every
few months it will protect your furniture for years
to come.
INSTALLER/ASSEMBLER: Leave this
manual with consumer.
CONSUMER: Keep this manual for
future reference.
Distributor: AZ PATIO HEATERS LLC
8601 W. Jefferson St Suite 200, Tolleson, AZ 85353
ANS Z83.26-2014 • CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heater
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-775-1330, 7 a.m. - 4 p.m., PST, Monday - Friday.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
DANGER
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
Purchase Date
1

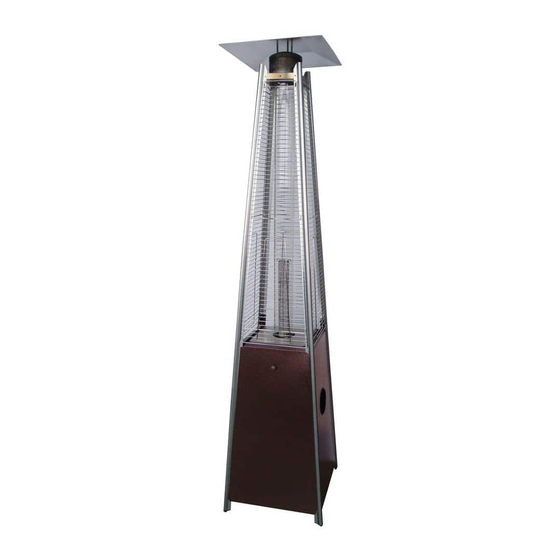

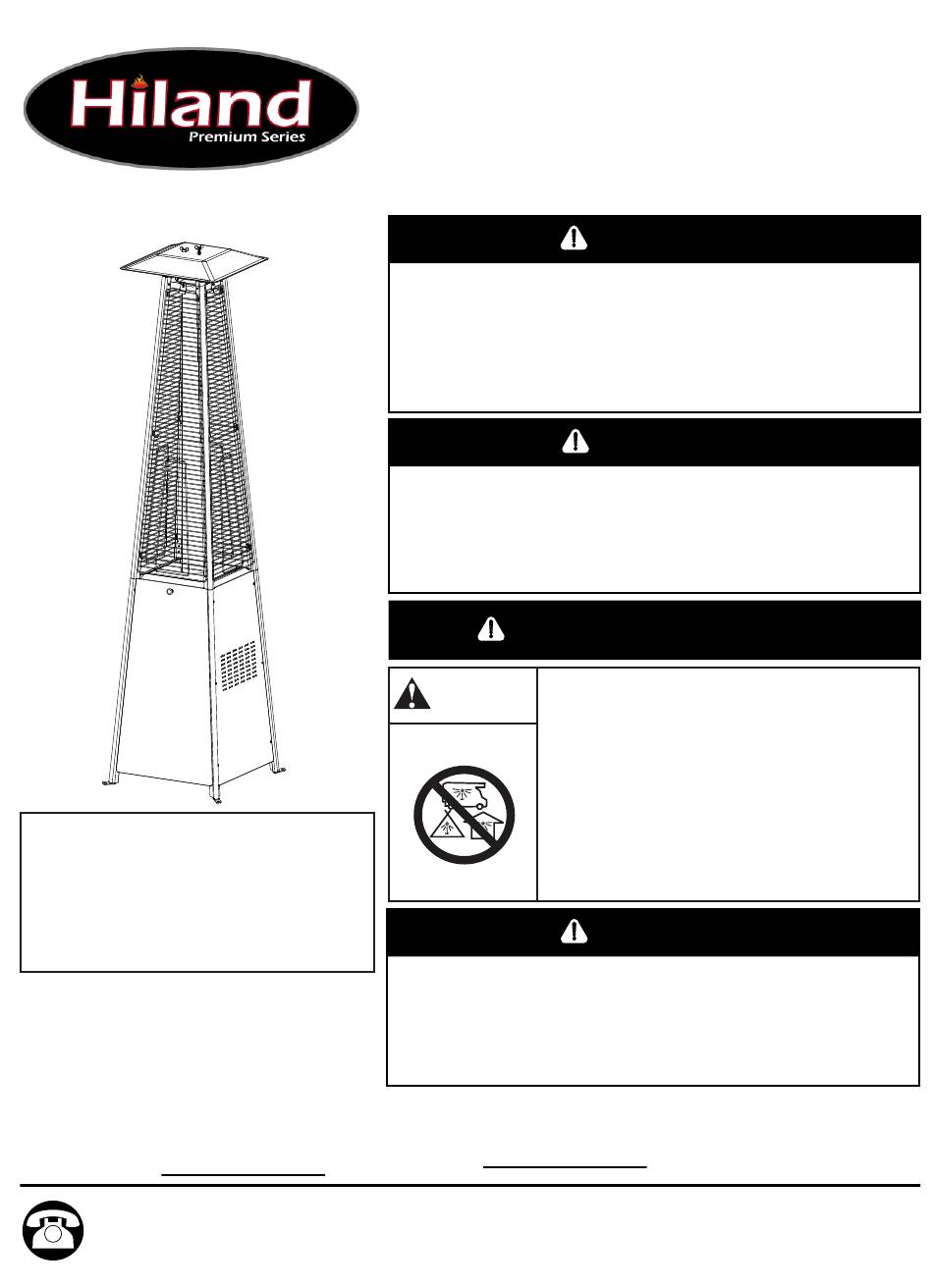

FLAME PATIO HEATER
MODEL #HLDS01-GTHG
DANGER
WARNING
WARNING:
For Outdoor Use Only
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
WARNING
Owner's
Manual
HLDS01-GTSS
HLDS01-GTCB
WH19/02
