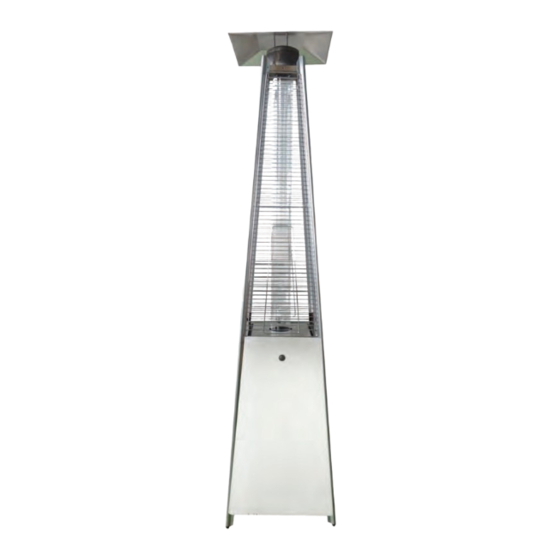

- Page 1 User Manual of Product 1: Hiland HLDSO1-WGTHG Pyramid Glass Tube Propane Patio Heater w/Wheels, 40,000 BTU, Hammered Bronze...
- Page 2 Quartz Tube Patio Heater • Read these instructions before using this appliance. The appliance must be installed in accordance with the instructions and local regulations. The use of this appliance in enclosed areas can be dangerous and is PROHIBITED. • Do the leak test after each changing of LPG cylinder.
- Page 3 36 in /91.4cm and sides 24 in /60.9 cm. 36 in /91.4cm 24 in/60.9cm 1-888-775-1330.
- Page 4 TWO SIDED BOLTS WITH WING NUTS STABILITY RING ATTACH TO BASE Please call us at 1-888-775-1330 (English only) for missing parts.
- Page 5 Please call us at 1-888-775-1330 (English only) for missing parts.
- Page 6 STEP 3: Mount the stabilty ring(PART H) to the STEP 6: Open the flame screen carton, take out the flame base of the heater. screen (PART AA) to the top of the aluminium tubes using hardware provided (PART B 8PCS) STEP 4: Open the aluminium tube carton, take out STEP 7: Take out 3 two sided bolts (Part A) out of all of the aluminium tubes (PART CC) Connect two...
- Page 7 STEP 8.1 : Slide the other side of stainless steel STEP 8.4: Before inserting the assembled tube, please ring (PART DD) into the second glass tube(PART EE) make sure the tubes are fully connected. A bad by squeezing the stainless steel ring connection may cause damage to the glass tubes.
- Page 8 STEP 9: Open the mesh guard carton, take out OPERATION mesh guard(Part BB). Hang the screens on the four sides of aluminium tubes(Part U) and connect top parts and bottom parts with small steel connector tubes(Part E) from glass tube box. B-4PCS 1.
- Page 9 DO NOT store in a location that will exceed120 degrees F/48.8 Celsius.
- Page 10 ITM. / ART.639564 PH08-SSB / HLDS01-GTSS -11.7KW/HR Input rate: 40000BTU/HR Gas: Propane Gas supply pressure: 25 to 250PSI / 3.5-10.5Kg/cm² Manifold pressure: 11"WC-2.74KPA INJECTOR SIZE: 1.95mm-0.07 in 3177588 Any repairs to the patio heater must be carred out by a qualified person. For futher assistance, contact AZ Patio Heaters at 1-888-775-1330 (English only).
