Precaution!
The Powder Coating paint process has become the most
common widely used application in the outdoor furniture
category. Unfortunately powder coating is extremely
sensitive to Humidity and Moisture. A simple process to
protect your furniture, especially flat surfaces is to apply a
simple coat of good quality car wax prior to using. If this
process is done every few months it will protect your
furniture for years to come.
ANS Z83.26-2014 • CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heaters
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-775-1330, 7 a.m. - 4 p.m., PST, Monday - Friday.
Purchase Date
1
OWNER'S MANUAL

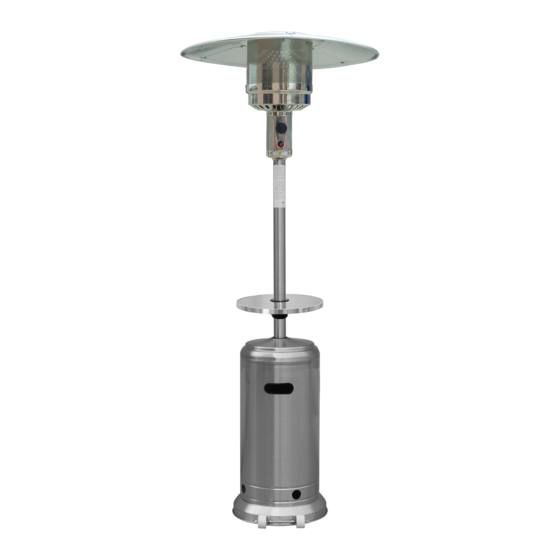

PATIO HEATER
MODEL # HLDS01
DANGER
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call you gas supplier or fire department.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING:
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this
equipment.
Français p. 22
p. 43
For Outdoor Use Only
WH16/01
Advertisement
Table of Contents
Related Manuals for Hiland HLDS01
Summary of Contents for Hiland HLDS01
- Page 1 OWNER’S MANUAL PATIO HEATER MODEL # HLDS01 Français p. 22 p. 43 DANGER FOR YOUR SAFETY If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call you gas supplier or fire department.
-
Page 2: Package Contents
PACKAGE CONTENTS QUANTITY Reflector Panel Reflector Plate Head Assembly Screw Coupler Table Tightening Spacer Fastening Nut Cylinder Housing Door (preassembled) Post Gas Hose Regulator Base Bucket (preassembled) Wheel Kit... -
Page 3: Safety Information
HARDWARE CONTENTS (shown actual size) M5 x 8 mm Flange Φ6 Φ6 Washer Screw M6 x 10 mm M8 x 16 mm Small Flat Qty. 9 Φ8 Washer Qty. 4 Reflector Bolt Bolt Qty. 2 Washer Qty. 9 Spacer Qty. 2 Qty. - Page 4 SAFETY INFORMATION DANGER DANGER • CARBON MONOXIDE HAZARD • EXPLOSION - FIRE HAZARD • This heater is a combustion appliance. All • Keep solid combustibles, such as building combustion appliances produce carbon materials, paper or cardboard, a safe distance monoxide (CO) during the combustion away from the heater as recommended by the process.
-
Page 5: Burn Hazard
SAFETY INFORMATION WARNING WARNING We cannot foresee every use that may be Do not store or use gasoline or other flammable made of our heaters. vapors and liquids in the vicinity of this or any Check with your local fire safety authority if you other appliance.An LP-cylinder not connected have questions about heater use. -
Page 6: Service Safety
SAFETY INFORMATION WARNING WARNING • This product is fueled by propane gas. Propane • Alert children and adults to the hazards of gas is invisible, odorless, and flammable. An high surface temperatures. Stay away from odorant is normally added to help detect leaks these surfaces to avoid burning skin or and can be described as a “rotten egg”... - Page 7 ASSEMBLY INSTRUCTIONS 1. Line up holes on the bracket of wheel assembly (O) with the corresponding holes on base (M), then insert M8 x 16 mm bolts (BB) through holes. Hand tighten with Fill sand M8 flange nuts (AA). Be sure the wheel assembly (O) is parallel to the base (M).
- Page 8 ASSEMBLY INSTRUCTIONS 4. Secure post (J) to cylinder housing (H) using the reinforced ring (NN), M6 x 10 mm bolts (DD) and Φ6 small flat washers (EE). Fasten and cover with the deck ring (OO). Hardware Used M6 x 10 mm Bolt Φ6 Small Flat Washer Reinforced Ring Deck Ring...
- Page 9 ASSEMBLY INSTRUCTIONS 7. Attach reflector spacers (FF) and Ø8 washers (GG) to the top of head assembly (C). Tighten the reflector spacers (FF). Hardware Used Reflector Spacer Φ8 Washer 8. Unscrew stainless steel bolts (LL) from head assembly (C). Hardware Used Stainless Steel Bolt 9.
- Page 10 ASSEMBLY INSTRUCTIONS 10. Remove protective cover from reflector panel (A) and reflector plate (B). Note: In order to achieve proper alignment of reflector sections, it may be necessary to loosen the preassembled bolts prior to assembly and retighten once complete. 11.
- Page 11 ASSEMBLY INSTRUCTIONS 13. Slide Φ8 washers (GG) over the threaded ends of reflectors spacers (FF). Attach reflector assembly to head assembly (C). Place Φ8 washers (GG) over threaded ends of reflector spacers (FF) sticking out through reflector assembly and secure with wing nuts (KK). Note: Do not overtighten.
- Page 12 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
- Page 13 OPERATION INSTRUCTIONS To check for a leak: WARNING 1. Make 2-3 oz. leak check solution (one part liquid dishwashing detergent and three parts • Perform all leak tests outdoors. water). • Extinguish all open flames. 2. Apply several drops of solution where •...
- Page 14 OPERATION INSTRUCTIONS DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed.
- Page 15 OPERATION INSTRUCTIONS 5. Push and release the igniter button until pilot flame is visible through viewing hole. 6. Once the pilot is lit, continue to depress the control knob for 30 seconds. 7. If the pilot does not stay lit, repeat steps 4 to 6. 8.
-
Page 16: Operation Checklist
OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When Heater is ON: Emitter screen will become bright red due to intense heat. -
Page 17: Care And Maintenance
OPERATION INSTRUCTIONS Heater is away from gasoline or other flammable liquids or vapors. Heater is away from windows, air intake openings, sprinklers and other water sources. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials. Heater is on a hard and level surface. - Page 18 CARE AND MAINTENANCE Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles. Carbon deposits may create a fire hazard.
-
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. Cylinder valve is closed 1. Open valve 2. Blockage in orifice or pilot tube 2. Clean or replace orifice or pilot tube 3. Air in gas line 3. Open gas line and bleed it Pilot won’t light (pressing control knob in) for not more than 1 - 2 minutes or until... -
Page 20: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY CUSTOMERS IN USA Do not return this product to the store where you purchased it. Please call 1-888-775-1330 for assistance. CUSTOMERS IN CANADA Only return this product to the store if it was purchased within 90 days. If you have problems after 90 days of purchase, please CALL 1-888-775-1330. -
Page 21: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-775-1330, 7 a.m. - 4 p.m., PST, Monday - Friday. QUANTITY Reflector Panel Reflector Plate Head Assembly Screw Coupler Table Tightening Spacer Fastening Nut Cylinder Housing Door (preassembled) Post Gas Hose Regulator...
