Precaution!
The Powder Coating paint process has become the most
common widely used application in the outdoor furniture
category. Unfortunately powder coating is extremely
sensitive to Humidity and Moisture. A simple process to
protect your furniture, especially flat surfaces is to apply a
simple coat of good quality car wax prior to using. If this
process is done every few months it will protect your
furniture for years to come.
ANS Z83.26-2014 • CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heaters
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? For small parts please call 1-888-775-1330 for
assistance, 8 a.m. - 4 p.m., MST, Monday - Friday. For damaged product, you may have to
return to the retailer.
Purchase Date
1
OWNER'S MANUAL

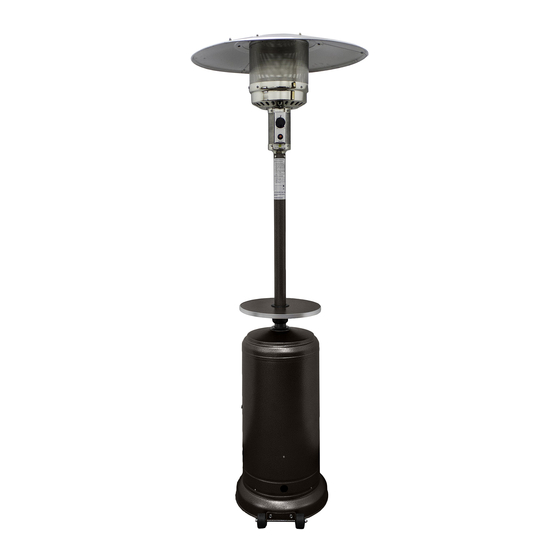

PATIO HEATER
MODEL # HLDS01
SSHGT, SSBLT, SSHST
DANGER
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call you gas supplier or fire department.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING:
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this
equipment.
CGT, CBT, BST
AZPH-GB
For Outdoor Use Only
WH16/01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hiland HLDS01-CGT
Summary of Contents for Hiland HLDS01-CGT
- Page 1 OWNER’S MANUAL PATIO HEATER MODEL # HLDS01 CGT, CBT, BST SSHGT, SSBLT, SSHST AZPH-GB DANGER FOR YOUR SAFETY If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call you gas supplier or fire department.
-
Page 2: Package Contents
PACKAGE CONTENTS QUANTITY Reflector Panel Reflector Plate Reflector Stud Head Assembly Table Table connector Regulator Deck Ring Cylinder Housing Post Base Wheel Kit Bucket (preassembled) - Page 3 HARDWARE CONTENTS (shown actual size) Flange Bolt Qty. 2 Bolt M6 X 10 Washer Φ8 Reflector M8 x 16 Qty. 4 Qty. 4 Qty. spacer Qty. 2 Qty. 3 Wing nut Wrench Screw Stainless Qty. 3 Cap nut Qty. 1 Deck ring M6 X 8 steel bolt...
-
Page 4: Safety Information
SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This heater is a combustion appliance. All paper or cardboard, a safe distance away from the combustion appliances produce carbon monoxide heater as recommended by the instructions. -
Page 5: Burn Hazard
SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”... - Page 6 ASSEMBLY INSTRUCTIONS 1. Line up holes on the bracket of wheel assembly (J) with the corresponding holes on base (I), then insert M8 x 16 mm bolts (BB) through holes. Hand tighten with M8 flange nuts (AA). Be sure the wheel assembly (J) is Fill sand parallel to the base (I).
- Page 7 ASSEMBLY INSTRUCTIONS 3. Table Installation. 3-1. Attached the table connector (E) to the table (D) 3-2. Turn the handle of connector in a clockwise direction, put the hole in the middle of the table through the pole. Turn the table in a clockwise direction to tighten and in a counter-clockwise direction to loosen.
- Page 8 ASSEMBLY INSTRUCTIONS 4. Attach reflector spacers (FF) to screen cover. Tighten the reflector spacers. Hardware Used Reflector Spacer 5. Attach head assembly to post. 5-1. Unscrew the four stainless steel bolts (LL). Hardware Used Stainless steel bolt 5-2. Load head assembly by inserting hose into post. Insert head assembly into post.
- Page 9 ASSEMBLY INSTRUCTIONS 6. WARNING:Remove blue protective wrap before assembling. Note: If necessary for proper alignment of reflector sections, loosen each bolt prior to further assembly and re-tighten after sections are aligned. 7. 7-1.Slide two reflector panels together. Insert one screw M6 X 8 (II) and screw on cap nut (JJ) loosely.
- Page 10 ASSEMBLY INSTRUCTIONS 8 . Support heater. Slide three washers washer Φ8 (GG) over threaded end of spacer. Locate reflector assembly on 3 spacers. Install three washers Φ8 on spacers and securely tighten wing nuts (KK) but do not overtighten. Hardware Used Washer Φ8 Wing nut 9 .
- Page 11 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
- Page 12 OPERATION INSTRUCTIONS Leak Check WARNING • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the heater until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder connection connection...
-
Page 13: Carbon Monoxide Hazard
OPERATION INSTRUCTIONS DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed. - Page 14 OPERATION INSTRUCTIONS 5. Push and release the igniter button until pilot flame is visible through viewing hole. 6. Once the pilot is lit, continue to depress the control knob for 30 seconds. 7. If the pilot does not stay lit, repeat steps 4 to 6. 8.
-
Page 15: For Your Safety
OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When heater is ON: Emitter screen will become bright red due to intense heat. -
Page 16: Care And Maintenance
OPERATION INSTRUCTIONS 9. Heater is away from gasoline or other flammable liquids or vapors. 10. Heater is away from windows, air intake openings, sprinklers and other water sources. 11. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials. 12. - Page 17 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Heater does NOT reach the desired temperature. Heater glow is excessively uneven. Heater makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use.
-
Page 18: Troubleshooting
TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-888-775-1330, 8 a.m. - 4 p.m. (MST), Monday - Friday. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Cylinder valve is closed Open valve Clean or replace orifice or Blockage in orifice or pilot tube pilot tube Open gas line and bleed it... -
Page 19: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY CUSTOMERS IN USA For small parts please call 1-888-775-1330 for assistance. For damaged product, you may have to return to the retailer. CUSTOMERS IN CANADA Only return this product to the store if it was purchased within 90 days. If you have problems after 90 days of purchase, please CALL 1-888-775-1330. -
Page 20: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-775-1330, 8 a.m. - 4 p.m., MST, Monday - Friday. QUANTITY Reflector Panel Reflector Plate Reflector Stud Head Assembly Table Table connector Regulator Deck Ring Cylinder Housing Post Base Wheel Kit Bucket (preassembled)
