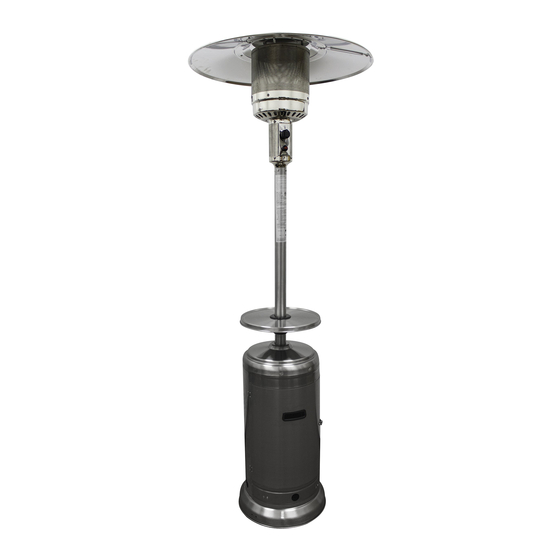

Hiland HLDS01 CG Owner's Manual
  1. Manuals
  2. Brands
  3. Hiland Manuals
  4. Patio Heater
  5. HLDS01
  6. Owner's manual

Hiland HLDS01 CG Owner's Manual

Hide thumbs Also See for HLDS01 CG:
Table of Contents

Advertisement

Quick Links

Precaution!
The Powder Coating paint process has become the
most common widely used application in the outdoor
furniture category. Unfortunately powder coating is
extremely sensitive to Humidity and Moisture. A
simple process to protect your furniture, especially
flat surfaces is to apply a simple coat of good quality
car wax prior to using. If this process is done every
few months it will protect your furniture for years
to come.
INSTALLER/ASSEMBLER: Leave this
manual with consumer.
CONSUMER: Keep this manual for
future reference.
Distributor: AZ PATIO HEATERS LLC
8601 W. Jefferson St Suite 200, Tolleson, AZ 85353
ANS Z83.26-2014 • CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heater
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? For small parts please call 1-888-775-1330 for
assistance, 8 a.m. - 4 p.m., MST, Monday - Friday. For damaged product, you may have to
return to the retailer.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
WARNING:
DANGER
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
Purchase Date
1
OWNER'S MANUAL
PATIO HEATER
DANGER
WARNING
For Outdoor Use Only
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
WARNING
MODEL #HLDS01
CG, CB, BS
AZPH-GS
WH19/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HLDS01 CG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hiland HLDS01 CG

Summary of Contents for Hiland HLDS01 CG

  • Page 1 OWNER’S MANUAL PATIO HEATER MODEL #HLDS01 CG, CB, BS AZPH-GS DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.

  • Page 2: Package Contents

    PACKAGE CONTENTS QUANTITY Reflector Panel Reflector Plate Reflector Stud Head Assembly Tabletop Table connector Regulator Deck Ring Reinforced Ring Cylinder Housing Post Base Wheel Kit Bucket (preassembled)

  • Page 3: Safety Information

    HARDWARE CONTENTS (shown actual size) Screw Flange Small flat Washer Φ6 M5 X 8 Bolt Bolt M6 X 10 washer Φ6 Qty. 9 Washer Φ8 Qty. 8 Reflector M8 x 16 Qty. 2 Qty. 4 Qty. 4 Qty. 9 spacer Qty.
  • Page 4 SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This heater is a combustion appliance. All paper or cardboard, a safe distance away from the combustion appliances produce carbon monoxide heater as recommended by the instructions.

  • Page 5: Burn Hazard

    SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”...
  • Page 6 ASSEMBLY INSTRUCTIONS 1. Line up holes on the bracket of wheel assembly (J) with the corresponding holes on base (I), then insert M8 x 16 mm bolts (BB) through holes. Hand tighten with Fill sand M8 flange nuts (AA). Be sure the wheel assembly (J) is parallel to the base (I).
  • Page 7 ASSEMBLY INSTRUCTIONS 4. Attach post to cylinder housing using the reinforced ring (NN), four M6 X 10 bolts (DD) and small flat washers Φ6 (EE). Fasten them and cover with the deck ring (OO). Hardware Used Bolt M6 X 10 Small flat washer Φ6 Reinforced ring Deck ring...
  • Page 8 ASSEMBLY INSTRUCTIONS 6. Attach reflector spacers (FF) and three washers Ø8 (GG) to screen cover. Tighten the reflector spacers. Hardware Used Reflector Spacer Washer Φ8 7. Attach head assembly to post. 7-1. Unscrew four stainless steel bolts (LL). Hardware Used Stainless steel bolt 7-2.
  • Page 9 ASSEMBLY INSTRUCTIONS 8. WARNING:Remove protective cover before assembling. Note: If necessary for proper alignment of reflector sections, loosen each bolt prior to further assembly and retighten after sections are aligned. 9. 9-1.Slide two reflector panels together. Insert one screw M6 X 10 (II). Slide one washer Φ 6 (HH) over threaded end of screw M6 X 10 (II) and...
  • Page 10 ASSEMBLY INSTRUCTIONS 10. Support heater. Slide three washers washer Φ8 (GG) over threaded end of spacer. Locate reflector assembly on 3 spacers. Install three washers Φ8 on spacers and securely tighten wing nuts (KK) but do not overtighten. Hardware Used Washer Φ8 Wing nut 11.
  • Page 11 ASSEMBLY INSTRUCTIONS The knob on the LP tank must be closed. Make sure that the knob is turned clockwise to a full stop. The cylinder supply system must be arranged for vapor withdrawal. Check that the control knob on the control unit is turned off.
  • Page 12 OPERATION INSTRUCTIONS Leak Check WARNING • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the heater until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder connection connection...
  • Page 13 OPERATION INSTRUCTIONS DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed.
  • Page 14 OPERATION INSTRUCTIONS 5. Push and release the igniter button until pilot flame is visible through viewing hole. 6. Once the pilot is lit, continue to depress the control knob for 30 seconds. 7. If the pilot does not stay lit, repeat steps 4 to 6. 8.

  • Page 15: For Your Safety

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When heater is ON: Emitter screen will become bright red due to intense heat.

  • Page 16: Care And Maintenance

    OPERATION INSTRUCTIONS Heater is away from gasoline or other flammable liquids or vapors. Heater is away from windows, air intake openings, sprinklers and other water sources. Heater is at least 36" on top and at least 36" on sides from combustible materials. Heater is on a hard and level surface.
  • Page 17 CARE AND MAINTENANCE Visually checking portions of the hose assembly located within the confines of the heater post. Inspect the entire hose assembly at least annually, disassembling the reflector and burner. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak tested. Then assembling the reflector and burner again following with step 7 and 10.

  • Page 18: Troubleshooting

    TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-888-775-1330, 8 a.m. - 4 p.m. (MST), Monday - Friday. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Cylinder valve is closed Open valve Clean or replace orifice or Blockage in orifice or pilot tube pilot tube Open gas line and bleed it...
  • Page 19 ONE-YEAR LIMITED WARRANTY CUSTOMERS IN USA For small parts please call 1-888-775-1330 for assistance. For damaged product, you may have to return to the retailer. CUSTOMERS IN CANADA Only return this product to the store if it was purchased within 90 days. If you have problems after 90 days of purchase, please CALL 1-888-775-1330.

  • Page 20: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-775-1330, 8 a.m. - 4 p.m., MST, Monday - Friday. QUANTITY Reflector Panel Reflector Plate Reflector Stud Head Assembly Tabletop Table connector Regulator Deck Ring Reinforced Ring Cylinder Housing Post Base Wheel Kit...
