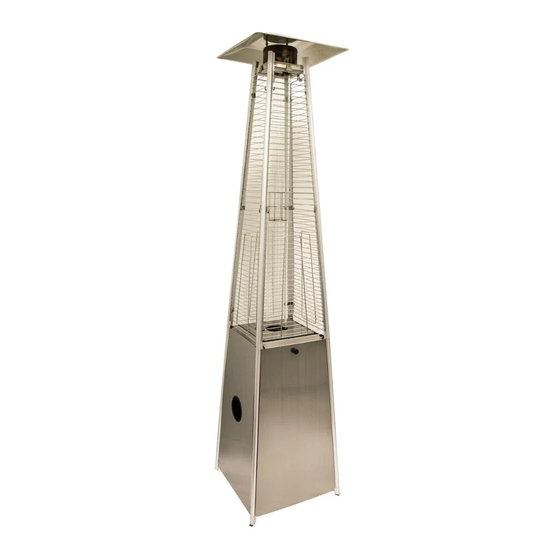

Hiland HLDS01-GTSS Owner's Manual

Flame patio heater
Hide thumbs Also See for HLDS01-GTSS:
Table of Contents

Advertisement

Quick Links

Precaution!
The Powder Coating paint process has become the most
common widely used application in the outdoor furniture
category. Unfortunately powder coating is extremely
sensitive to Humidity and Moisture. A simple process to
protect your furniture, especially flat surfaces is to apply a
simple coat of good quality car wax prior to using. If this
process is done every few months it will protect your
furniture for years to come.
ANS Z83.26-2014 • CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heaters
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-775-1330, 7 a.m. - 4 p.m., PST, Monday - Friday.
Purchase Date
1
OWNER'S MANUAL
FLAME PATIO HEATER
MODEL #HLDS01-GTHG
DANGER
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call you gas supplier or fire department.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING:
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this
equipment.
HLDS01-GTSS
For Outdoor Use Only
WH16/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HLDS01-GTSS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hiland HLDS01-GTSS

Summary of Contents for Hiland HLDS01-GTSS

  • Page 1 OWNER’S MANUAL FLAME PATIO HEATER MODEL #HLDS01-GTHG HLDS01-GTSS DANGER FOR YOUR SAFETY If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call you gas supplier or fire department.

  • Page 2: Package Contents

    PACKAGE CONTENTS Reflector Flame Screen Glass Tube Upper Support Protective Guard Black Silicone Ring Control Box Assy Side Panel Lower Support Front Panel Block Belt Wheel Assembly Gas Hose & Regulator Bottom Plate QUANTITY QUANTITY Reflector Block Belt Flame Screen Wheel Assembly Glass Tube Bottom Plate...

  • Page 3: Safety Information

    HARDWARE CONTENTS (shown actual size) Wing nut Stud Flange Small flat 3/16” Screw Bolt M6 X 12 Qty. 3 Qty. 3 washer Φ6 Qty. 42 Qty. 4 Qty. 4 Qty. 6 Wrench Philips Screw Screw Knob Qty. 1 screwdriver M4 X 10 Fixing Bracket M5 X 12 Qty.
  • Page 4 SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This heater is a combustion appliance. All paper or cardboard, a safe distance away from the combustion appliances produce carbon monoxide heater as recommended by the instructions.

  • Page 5: Burn Hazard

    SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”...
  • Page 6 ASSEMBLY INSTRUCTIONS 1. Assemble the wheel assembly to the bottom plate. Fix the wheel assembly to the bottom plate using 4pcs bolt M6X12 and 4pcs flange nut Hardware Used Bolt M6 X 12 M6 Flange nut Wrench 2-1. Unscrew the switch button, load small battery, tighten the switch button.
  • Page 7 ASSEMBLY INSTRUCTIONS 3.Assemble block belt. Fix the block belt to the 2pcs of lower support behind the front door,using 2pcs screw M5X12. Hardware Used Screw M5 X 12 Philips screwdriver 4. Assemble the middle support. Insert the 4pcs upper support to the lower support.
  • Page 8 ASSEMBLY INSTRUCTIONS 5. Assebmle the flame screen to the upper support. Secure the flame screen to the upper support using 8pcs screw 3/16”. Hardware Used 3/16” Screw Philips screwdriver 6. Assemble the reflector onto the flame screen. Screw the 3pcs stud on the flame screen, put 3pcs washer Φ6 onto the top of stud, then put the reflector onto the stud, secure them with 3pcs washer Φ6 and 3pcs wing...
  • Page 9 ASSEMBLY INSTRUCTIONS 7. Carefully install the glass tube by lifting up and inserting through the center hole in the upper plate. Ensure the black silicone ring is attached to the lower edge of the glass tube as illustrated. Slide the glass tube through the hole of the lower plate cover and onto the To aid in installation middle plate.
  • Page 10 ASSEMBLY INSTRUCTIONS 9. Attach the three side panels to the heater using 18pcs screw 3/16”. Note : Do not cover the front side where the control knob is. Hardware Used 3/16” Screw x 18 Philips screwdriver 10. Install the knob to M4x10 screw. Hang the chain to the hole on the control box assy and put the pothook of front panel to the holes of bottom plate.
  • Page 11 ASSEMBLY INSTRUCTIONS 11. Screw gas hose and regulator to propane cylinder (not included). Do not cross-thread. WARNING: Use a standard 20 lb. propane cylinder only. Use this heater only with a propane vapor withdrawal supply system. See chapter 5 of the standard for storage and handling of liquefied petroleum gas, ANS/NFPA 58.
  • Page 12 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your propane supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
  • Page 13 OPERATION INSTRUCTIONS Leak Check WARNING • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the heater until all connections have been leak tested and do not leak. Hose / Regulator connection Regulator / Cylinder connection...

  • Page 14: Carbon Monoxide Hazard

    OPERATION INSTRUCTIONS DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed.
  • Page 15 OPERATION INSTRUCTIONS 4. Push and release the igniter button until pilot flame is visible through the glass tube. 5. Once the pilot is lit, continue to depress the control knob for 30 seconds. 6. If the pilot does not stay lit, repeat steps 4 to 6. 7.

  • Page 16: For Your Safety

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When heater is ON: The flame should be blue with straight yellow tops.

  • Page 17: Care And Maintenance

    OPERATION INSTRUCTIONS 9. Heater is away from gasoline or other flammable liquids or vapors. 10. Heater is away from windows, air intake openings, sprinklers and other water sources. 11. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials. 12.
  • Page 18 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Heater does NOT reach the desired temperature. Heater glow is excessively uneven. Heater makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use.

  • Page 19: Troubleshooting

    TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-877-483-6759 PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Cylinder valve is closed Open valve Clean or replace orifice or Blockage in orifice or pilot tube pilot tube Open gas line and bleed it Pilot won’t light Air in gas line (pressing control knob in) for not...

  • Page 20: One-Year Limited Warranty

    ONE-YEAR LIMITED WARRANTY CUSTOMERS IN USA Do not return this product to the store where you purchased it. Please call 1-888-775-1330 for assistance. CUSTOMERS IN CANADA IMPORTANT Only return this product to the store if it was purchased within 90 days. If you have problems after 90 days of purchase, please CALL 1-888-775-1330 DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE.

  • Page 21: Replacement Parts List

    REPLACEMENT PARTS LIST Reflector Flame Screen Glass Tube Upper Support Protective Guard Black Silicone Ring Control Box Assy Side Panel Lower Support Front Panel Block Belt Wheel Assembly Gas Hose & Regulator Bottom Plate QUANTITY QUANTITY Reflector Block Belt Flame Screen Wheel Assembly Glass Tube Bottom Plate...
