Precaution!
The Powder Coating paint process has become the
most common widely used application in the outdoor
furniture category. Unfortunately powder coating is
extremely sensitive to Humidity and Moisture. A
simple process to protect your furniture, especially
flat surfaces is to apply a simple coat of good quality
car wax prior to using. If this process is done every
few months it will protect your furniture for years
to come.
INSTALLER/ASSEMBLER: Leave this
manual with consumer.
CONSUMER: Keep this manual for
future reference.
Distributor: AZ PATIO HEATERS LLC
8601 W. Jefferson St Suite 200, Tolleson, AZ 85353
ANS Z83.26-2014 • CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heater
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? For small parts please call 1-888-775-1330 for
assistance, 8 a.m. - 4 p.m., MST, Monday - Friday. For damaged product, you may have to
return to the retailer.

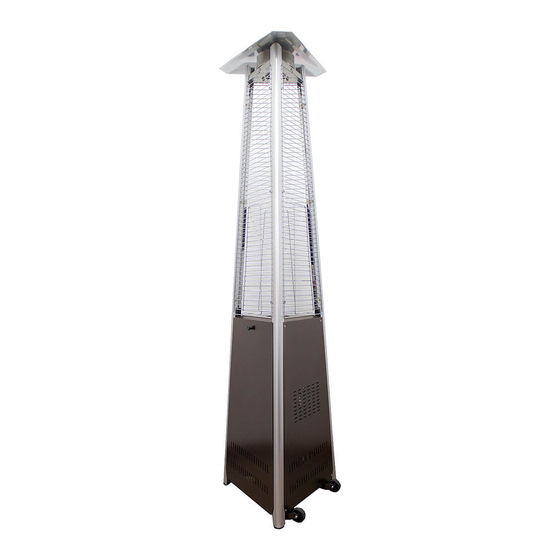

COMMERCIAL FLAME PATIO HEATER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
WARNING:
DANGER
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
Purchase Date
1
Owner's Manual
MODEL # HLDS01-CGTHG
DANGER
WARNING
For Outdoor Use Only
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
WARNING
HLDS01-CGTSS
HLDS01-CGTCB
AZPH-GS
WH19/02
Advertisement
Table of Contents
Related Manuals for Hiland HLDS01-CGTHG
Summary of Contents for Hiland HLDS01-CGTHG
- Page 1 Owner’s Manual COMMERCIAL FLAME PATIO HEATER MODEL # HLDS01-CGTHG HLDS01-CGTSS HLDS01-CGTCB AZPH-GS DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 2: Package Contents
PACKAGE CONTENTS For replacement parts, call our customer service department at 1-888-775-1330, 8 a.m. - 4 p.m., MST, Monday - Friday. Reflector Mesh Glass Tube Fixer Top Plate Upper Support (Long) Protective Guard Glass Tube Side Panel Black Silicone Ring Control Box Assembly Lower Support (Short) Block Belt... -
Page 3: Safety Information
HARDWARE CONTENTS (shown actual size) Wing nut Stud Small Flat M5 x 12 mm Screw M6 x 12 mm Bolt Qty. 3 Qty. 3 Washer Qty. 35 Qty. 8 Qty. 6 Chain M4 x 6 mm Knob Qty.1 Screw Qty. 1 Fixing Bracket Qty.1 Qty. -
Page 4: Service Safety
SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This heater is a combustion appliance. All paper or cardboard, a safe distance away from the combustion appliances produce carbon monoxide heater as recommended by the instructions. -
Page 5: Burn Hazard
SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”... - Page 6 ASSEMBLY INSTRUCTIONS Unscrew the switch button, load AAA 1-1. battery, tighten the switch button. 1-2.Insert the hoods of bottom plate (O) to the lower holes of the three lower supports (K) Insert the hoods of control box assembly (J) AA Battery (1.5 V) to the upper holes of the three lower support (K).
- Page 7 ASSEMBLY INSTRUCTIONS Use Phillips screwdriver (LL) to fasten the control box assembly (J) and the bottom plate (O) with M5 x 12 mm screws (DD). Hardware Used M5 x 12 mm Screw Phillips Screwdriver 4.Use Phillips screwdriver (LL) to secure the top plate (D) to the upper supports (E) with M5 x 12 mm screws (DD).
- Page 8 ASSEMBLY INSTRUCTIONS 5. Using wrench (KK) to assemble the wheel assembly (N) to the bottom plate (O) with M6 x 12 mm bolts (EE). Hardware Used M6 x 12 mm Bolt Wrench 6. Use Phillips screwdriver (LL) to secure the block belt (L) to the lower supports (K) with M5 x 12 mm screws (DD).
- Page 9 ASSEMBLY INSTRUCTIONS 7. Carefully install the glass tube (4" x 49.5") (G) between the center of top plate (D) and control box assembly (J). Make sure the end of the glass tube (G) is inserted securely into the To aid in installation three clips of the control box assembly (J).
- Page 10 ASSEMBLY INSTRUCTIONS 9. Assebmly the protective guard and mesh Insert the hooks of protective guard (F) to the holes of upper supports (E). Put the mesh (B) on the top plate (D). Make sure the screw holes align the holes of top plate (D). Use Phillips screwdriver (LL) to secure the mesh (B) and protective guard (F) to the top...
- Page 11 ASSEMBLY INSTRUCTIONS 11. Install the knob (GG) to M4x6 screw (HH) . Hang the chain (II) to the hole on the control box assembly (J) and put the pothook of front panel to the holes of bottom plate. Hardware Used Knob Screw M4 X 6 Chain...
- Page 12 ASSEMBLY INSTRUCTIONS 13. Screw gas hose and regulator to propane cylinder (not included). Do not cross-thread. Every part of the heater shall be secure against displacement and shall be constructed to maintain a fixed relationship between essential parts under normal and reasonable conditions of handling and usage.
- Page 13 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
- Page 14 OPERATION INSTRUCTIONS Leak Check WARNING • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER smoke while carrying out the leak test. • Do not use the heater until all connections have been leak tested and do not leak. Hose / Regulator connection Regulator / Cylinder...
- Page 15 OPERATION INSTRUCTIONS DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed.
- Page 16 OPERATION INSTRUCTIONS 4. Push and release the igniter button until pilot flame is visible through the glass tube. 5. Once the pilot is lit, continue to depress the control knob for 60 seconds. 6. If the pilot does not stay lit, repeat steps 4 to 6. 7.
-
Page 17: For Your Safety
OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control knob for more than 20 seconds before igniting the gas will cause a ball of flame upon ignition. When heater is ON: The pilot light should be blue. -
Page 18: Care And Maintenance
OPERATION INSTRUCTIONS 9. Heater is away from gasoline or other flammable liquids or vapours. 10. Heater is away from windows, air intake openings, sprinklers and other water sources. 11. Heater is located at least 24" (top) / 36" (sides) from combustible materials. 12. -
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Cylinder valve is closed Open valve Clean or replace orifice or Blockage in orifice or pilot tube pilot tube Open gas line and bleed it Pilot won’t light Air in gas line (pressing control knob in) for no more than 1 - 2 minutes or until you smell gas Low gas pressure with cylinder valve... - Page 20 CARE AND MAINTENANCE Visually checking portions of the hose assembly located within the confines of the heater post. Inspect the entire hose assembly at least annually, disassembling the reflector and burner. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak tested. Then assembling the reflector and burner again following with step 11 and 12 Spiders and insects can nest in burner or orifices.
- Page 21 ONE-YEAR LIMITED WARRANTY CUSTOMERS IN USA For small parts please call 1-888-775-1330 for assistance. For damaged product, you may have to return to the retailer. CUSTOMERS IN CANADA Only return this product to the store if it was purchased within 90 days. If you have problems after 90 days of purchase, please CALL 1-888-775-1330.
-
Page 22: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-775-1330, 8 a.m. - 4 p.m., MST, Monday - Friday. Reflector Mesh Glass Tube Fixer Top Plate Upper Support (Long) Protective Guard Glass Tube Side Panel Black Silicone Ring Control Box Assembly Lower Support (Short) Block Belt...
