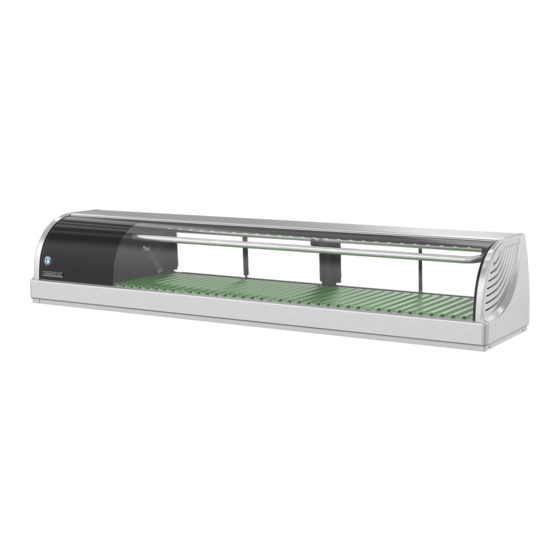

- Page 1 COUNTER SHOWCASE INSTRUCTION MANUAL HNC-120BA-L/R-S HNC-150BA-L/R-S HNC-180BA-L/R-S HNC-210BA-L/R-S L1S014101 (111510)
- Page 2 Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, write, or send an e-mail message to the Hoshizaki Technical Support Department for assistance. HOSHIZAKI AMERICA, INC.
-
Page 3: Table Of Contents
This manual should be read carefully before the product is installed and operated. Only qualified service technicians should install, service, and maintain the product. Read the warnings contained in this booklet carefully as they give important information regarding safety. Please retain this booklet for any further reference that may be necessary. -
Page 4: General Information
I. GENERAL INFORMATION 1. CONSTRUCTION Power Switch (Ground Fault Interrupter) Condenser Air Filter Louver Sliding Glass Door *Note: Always attach the plug(s) to the drain holes located in the showcase. Nameplate Plug* Food Mount Fig. 1 Joint Hose Slider... -
Page 5: Installation And Operating Instructions
II. INSTALLATION AND OPERATING INSTRUCTIONS 1. CHECKS BEFORE INSTALLATION * Visually inspect the exterior of the shipping container, and any severe damage noted should be reported to the carrier. Remove shipping carton, evaporator spacer, tape(s) and packing. If packing material is left in the showcase, it will not work properly. Remove shipping tape holding the door. -
Page 6: Set Up
,I WKH IRXQGDWLRQ LV QRW ¿UP HQRXJK LW PD\ warp and cause some space between its center and the showcase bottom. In this case, provide a support to keep the foundation level. * Avoid a site where dripping is not allowed. * Do not expose the showcase to direct sunlight or higher temperatures to prevent damage to the plastic housing. -
Page 7: Electrical Connections
2) Position the showcase in a selected site. Clean the interior with soap and water and rinse thoroughly. 3) Level the showcase in both the left-to-right and the front-to-rear directions. 4) The perimeter where the machine touches the counter should be sealed with silicone. 4. -
Page 8: Final Check List
6. FINAL CHECK LIST 1) Is the showcase level? 2) Is the showcase in a site where the ambient temperature is within 50°F (10°C) to 80°F (27 °C) all year around? 3) Have all shipping carton, evaporator spacer, tape(s) and packing been removed from the showcase? 4) Have all electrical and piping connections been made? 5) Has the power supply voltage been tested or checked against the nameplate rating? -
Page 9: Start Up
Since frost on the evaporator pipe reduces refrigeration performance, the showcase cannot be used continuously. After business hours, return sushi materials to a refrigerator and turn off the showcase. Leave the showcase off for at least 1 to 2 hours to defrost. Failure to defrost the showcase will result in improper operating temperatures. - Page 10 7. The maximum safe height for displaying food products is 3.5” (9cm) above the interior bottom. Food products should not be placed above this height as they may not remain cold enough to avoid spoilage. 8. If the showcase is turned off, wait for at least 3 minutes before restarting the showcase.
-
Page 11: Maintenance And Cleaning Instructions
2. DRAIN PIPE CLEANING (LWKHU PL[ JDO OLWHU RI ZDWHU ZLWK À R] PO RI rite solution in a suitable container, or the recommended Hoshizaki sanitizer as directed. 2) Disconnect the hose from the joint. -
Page 12: Air Filter
3. AIR FILTER $ SODVWLF PHVK DLU ¿OWHU UHPRYHV GLUW RU GXVW IURP WKH DLU DQG NHHSV WKH FRQGHQVHU IURP JHWWLQJ FORJJHG $V WKH ¿OWHU JHWV FORJJHG WKH VKRZFDVH¶V SHUIRUPDQFH ZLOO EH UHGXFHG Check the filter at least twice a month. When clogged, use warm water and a neutral FOHDQHU WR ZDVK WKH ¿OWHU 1) Hold the tabs located at the bottom of the louver, and lift them up to release the louver from the body.
