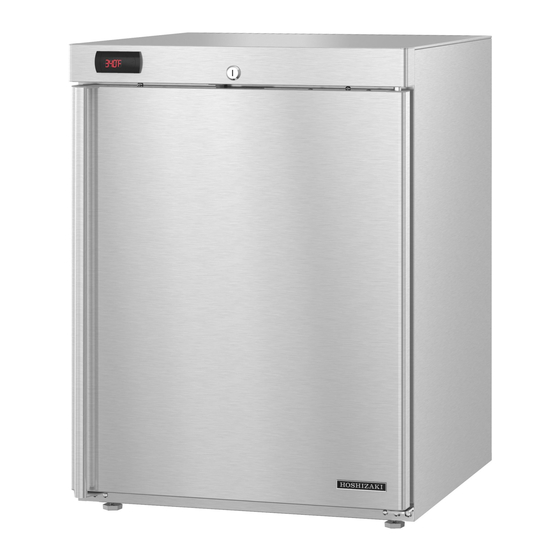

Hoshizaki HR24C Instruction Manual
  1. Manuals
  2. Brands
  3. Hoshizaki Manuals
  4. Refrigerator
  5. HR24C
  6. Instruction manual

Hoshizaki HR24C Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Refrigerator
Model
HR24C
Number: MAN-328-R
Issued: 03-14-2019
Revised: 03-22-2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR24C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoshizaki HR24C

Summary of Contents for Hoshizaki HR24C

  • Page 1 Refrigerator Model HR24C Number: MAN-328-R Issued: 03-14-2019 Revised: 03-22-2019...
  • Page 2 Hoshizaki provides this manual primarily to assist qualified service technicians in the installation, maintenance, and service of the appliance. Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, send an e-mail message, or write to the Hoshizaki Technical Support Department for assistance.

  • Page 3: Table Of Contents

    IMPORTANT This manual should be read carefully before the appliance is installed and operated. Read the warnings and guidelines contained in this manual carefully as they provide essential information for the continued safe use and maintenance of the appliance. Retain this manual for any further reference that may be necessary.

  • Page 4: Introduction

    INTRODUCTION This manual contains instructions for installation, operation and general maintenance of your unit. Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, damage to the appliance, or damage to property. Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury.
  • Page 5 WARNING This appliance should be destined only to the use for which it has been expressly conceived. Any other use should be considered improper and therefore dangerous. The manufacturer cannot be held responsible for injury or damage resulting from improper, incorrect, and unreasonable use. Failure to install, operate, and maintain the appliance in accordance with this manual will adversely affect safety, performance, component life, and warranty coverage.
  • Page 6 WARNING, continued • This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...

  • Page 7: General Safety

    WARNING, continued • Do not allow children to climb, step or hang onto the shelves inside the cooler. That could damage the unit and cause serious injuries to them. • Do not touch the cold surfaces of the cooler with your hands wet or moist.

  • Page 8: Know Your Equipment

    KNOW YOUR EQUIPMENT DOOR CONTROL MODULE POWER CORD PULL OUT SHELF LEVELING LEG FIG. 1...

  • Page 9: Check For Shipping Damage

    CHECK FOR SHIPPING DAMAGE Prior to leaving the factory, each cabinet is throughly inspected and performance tested to assure proper operating temperatures. Check the crate thoroughly for signs of shipping damage. If external damage exists, internal damage is also probable. Uncrating should be done while the carrier´s representative is present.

  • Page 10: Handling The Cabinet

    HANDLING THE CABINET 1. Always move the unit in an upright position. Do not set it on its side or upside down as you may damage the cabinet and cause the oil to migrate from the compressor. 2. If lifting the unit, hold it from its base. It is recommended to use a dolly. 3.

  • Page 11: Electrical Installation

    ELECTRICAL INSTALLATION Electrical Connection WARNING • Electrical connection must meet national, state, and local electrical code requirements. Failure to meet these code requirements could result in death, electric shock, serious injury, fire, or severe damage to equipment. • This appliance requires an independent power supply of proper capacity.

  • Page 12: Installing The Shelves

    INSTALLING THE SHELVES Loading tips and suggestions Your appliance is equipped with a shelf system, composed of three reinforced heavy duty shelves and twelve shelf clips (four per shelf), which provides maximum adjustability. WARNING Never try to move a loaded shelf, remove everything from the shelf before moving.

  • Page 13: Door Reversal

    DOOR REVERSAL If you would like to reverse the door swing, follow the steps below. Otherwise, skip to section “Controls and adjustments”. TOOLS PHILLIPS # 2 SCREWDRIVER INSTRUCTIONS Step 1. Remove the four SC-48-SS screws and the Exterior top. See figure 3. Exterior top SC-48-SS screw (use screwdriver)
  • Page 14 Step 2. While maintaining a hold on the door, remove the SC-48-SS screws, the HA-609-SS Lower Hinge and the HA-608-SS Upper Hinge, then remove the door. See figure 4. HA-608-SS Upper Hinge SC-48-SS Screw HA-609-SS (use screwdriver) Lower Hinge FIG. 4 Step 3.
  • Page 15 Step 4. Attach the Hinges to the left side of the cabinet. See figure 6. HA-608-SS Upper Hinge HA-609-SS Lower Hinge FIG. 6 Step 5. Finally attach the Exterior Top. See figure 7. Exterior Top FIG. 7...

  • Page 16: Controls And Adjustments

    CONTROLS AND ADJUSTMENTS DEFROST SELECTOR STEPS TO CHANGE SETPOINT 1. To access the menu press the “Set” button until the value “0” is displayed on the screen. 2. Release the “Set” button. 3. Press the “Up” button repeatedly until the value 22 is displayed on the screen.

  • Page 17: Alarm Indicators

    To obtain the name and phone number of your local Hoshizaki Certified Service Representative, visit www.hoshizaki.com ALARM INDICATORS CONTROLLER DISPLAY Sound alarms off DEFROST SELECTOR If the cabinet temperature is displayed, the cooler is working properly; if an alarm code is displayed, see the information below...

  • Page 18: Cleaning And Maintenance Instructions

    2. Power Supply Connection: If the plug or power cord is damaged, contact your local Hoshizaki Certified Service Representative immediately and ask for repairs. All other service should be performed in accordance with the Hoshizaki Service Manual by a qualified service technician.

  • Page 19: Preparing The Appliance For Periods Of Non-Use

    PREPARING THE APPLIANCE FOR PERIODS OF NON-USE Shutdown and Long Storage When shutting down the appliance for more than one week, follow the instructions below. WARNING When preparing the appliance for long storage, prevent the door from closing to reduce the risk of children getting trapped. Leave the shelves in place so that children may not easily climb inside.
  • Page 20 618 Hwy. 74 South, Peachtree City, GA 30269 USA (P) 770.487.2331 (F) 770.487.3360 hoshizakiamerica.com...
