Summary of Contents for Hoshizaki HR24B

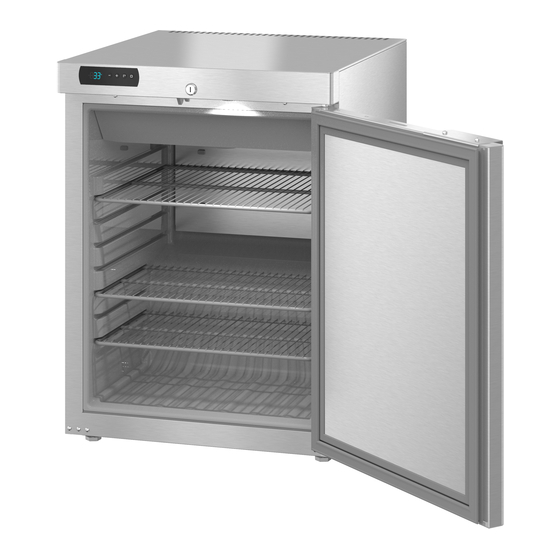

- Page 1 Instruction Manual Undercounter Refrigerator Models HR24B hoshizakiamerica.com Issued: 5-11-2018...
- Page 2 Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, send an e-mail message, or write to the Hoshizaki Technical Support Department for assistance. Phone: 1-800-233-1940; (770) 487-2331 Fax: 1-800-843-1056;...
-
Page 3: Table Of Contents
IMPORTANT This manual should be read carefully before the appliance is installed and operated. Read the warnings and guidelines contained in this manual carefully as they provide essential information for the continued safe use and maintenance of the appliance. Retain this manual for any further reference that may be necessary. CONTENTS Important Safety Information .................... -
Page 4: Important Safety Information
Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, damage to the appliance, or damage to property. Indicates a hazardous situation that, if not avoided, will result in DANGER death or serious injury. - Page 5 • THE APPLIANCE MUST BE WARNING GROUNDED. The appliance is equipped The appliance should be destined only to with a NEMA 5-15 three-prong grounding the use for which it has been expressly plug to reduce the risk of potential conceived. Any other use should be shock hazards.
- Page 6 • Food storage and handling must comply WARNING, continued with applicable codes and regulations. • Children should be properly supervised • All foods should be wrapped in plastic around the appliance. film or stored in sealed containers. • Do not climb, stand, or hang on the Otherwise foods may dry up, pass their appliance or door or allow children or smells onto other foods, cause frost...
-
Page 7: Installation Instructions
I. Installation Instructions WARNING • The appliance must be installed in accordance with applicable national, state, and local codes and regulations. • The appliance is heavy. Use care when lifting or positioning. Work in pairs when needed to prevent injury or damage. •... -
Page 8: Built-In Installation Site
Installation Space Model Height Width Depth HR24B 32-1/2" (826 mm) minimum 24" (610 mm) minimum 24-1/2" (623 mm) minimum Between Two Cabinets Between a Cabinet and the End of a Counter Min. 32-1/2"... -
Page 9: Door Reversal
C. Door Reversal If you would like to reverse the door swing, follow the steps below. Otherwise, skip to section "II.D. Setup." 1) Make sure the appliance is off and unplugged. 2) Remove the fasteners securing the top panel. See Fig. 1. Being careful not to pull on the wires to the control panel and door switch, lift off the top panel. -
Page 10: Setup
D. Setup 1. Install the Top Trim To achieve a built-in look when installing in a cabinet application, the top trim can be installed. Two top trims are included; use the one of the appropriate height to fill the gap between the top of the unit and bottom of the counter in your installation. -
Page 11: Electrical Connection
E. Electrical Connection WARNING • Electrical connection must meet national, state, and local electrical code requirements. Failure to meet these code requirements could result in death, electric shock, serious injury, fire, or severe damage to equipment. • The appliance requires an independent power supply of proper capacity. See the nameplate for electrical specifications. -
Page 12: Final Checklist
F. Final Checklist 1) Is the appliance level? 2) Is the appliance in a site where the ambient temperature is within 61°F to 86°F (16°C to 30°C) all year around? 3) Is there at least 3/4" (2 cm) clearance at top? Is air able to circulate freely under, behind, and above the appliance? 4) Have the shipping carton, tape, and packing material been removed from the appliance? Has the protective plastic film been removed from both the exterior panels... -
Page 13: Operating Instructions
II. Operating Instructions A. Important Notes About Usage • The appliance is not intended for use by DANGER persons (including children) with reduced Risk of Fire or Explosion physical, sensory, or mental capabilities, Flammable Refrigerant Used or lack of experience and knowledge, unless they have been given supervision •... - Page 14 NOTICE WARNING, continued • Protect the floor when moving the • Do not block air inlets or outlets, otherwise appliance to prevent damage to the floor. cooling performance may be reduced. • Keep ventilation openings, in the • Do not tightly pack the cabinet. Allow appliance enclosure or in the built-in some space between items to ensure structure, clear of obstruction.
-
Page 15: Startup
B. Startup WARNING All parts are factory-adjusted. Improper adjustments may adversely affect safety, performance, component life, and warranty coverage. IMPORTANT At startup, there is a 2-minute delay before the compressor starts. 1) Plug the appliance into the electrical outlet. WARNING! If you have to slide the appliance back for a built-in installation, make sure you do not damage or pinch the power cord. -
Page 16: Display Icons
For high temperature, low temperature, and door alarms, the appliance beeps in addition to displaying the alarm icon and alarm code. To obtain the name and phone number of your local Hoshizaki Certified Service Representative, visit www.hoshizaki.com. -
Page 17: Control Panel Lockout
1. Silencing High Temperature, Low Temperature, and Door Alarms To silence the alarm, press the "-" or "+" button. d (door) alarm, the alarm clears once the door is closed or the "-" or "+" button is pressed. 2. Clearing High Temperature and Low Temperature Alarms For AH and AL alarms, the red alarm icon and AH or AL continue to alternate with cabinet temperature after alarm is silenced. -
Page 18: Defrost
H. Defrost DANGER Risk of Fire or Explosion Flammable Refrigerant Used • Do not use mechanical devices to defrost. • Do not puncture refrigerant tubing. Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. Risque De Feu Ou D'Explosion Le Frigorigène Est Inflammable •... -
Page 19: Power Outage
K. Power Outage In the event of a power outage, the appliance will come back on if it was on at the time of the power outage. The appliance will stay off if it was off at the time of the power outage. -
Page 20: Cleaning And Maintenance Instructions
III. Cleaning and Maintenance Instructions A. Cleaning WARNING • Before cleaning the appliance, turn off and unplug the appliance to prevent electric shock by unexpected entrance of water into the appliance or injury by moving parts. • Before cleaning the appliance, move all items into another refrigerator. •... -
Page 21: Maintenance
2. Power Supply Connection If the plug or power cord is damaged, contact your local Hoshizaki Certified Service Representative immediately and ask for repairs. All other service should be performed in accordance with the Hoshizaki Service Manual... -
Page 22: Preparing The Appliance For Periods Of Non-Use
IV. Preparing the Appliance for Periods of Non-Use A. Shutdown and Long Storage When shutting down the appliance for more than one week, follow the instructions below. WARNING When preparing the appliance for long storage, prevent the door from closing to reduce the risk of children getting trapped. -
Page 23: Disposal
V. Disposal DANGER Risk of Fire or Explosion Flammable Refrigerant Used • Follow handling instructions carefully in compliance with U.S. government regulations. • Do not puncture refrigerant tubing. Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. •... - Page 24 618 Hwy. 74 South, Peachtree City, GA 30269 USA (P) 770.487.2331 (F) 770.487.3360 hoshizakiamerica.com 1A4856-012...
