DO GUIDE
HD-EXT3-C
4K HDMI over HDBaseT Extender with IR and RS-232
® ®

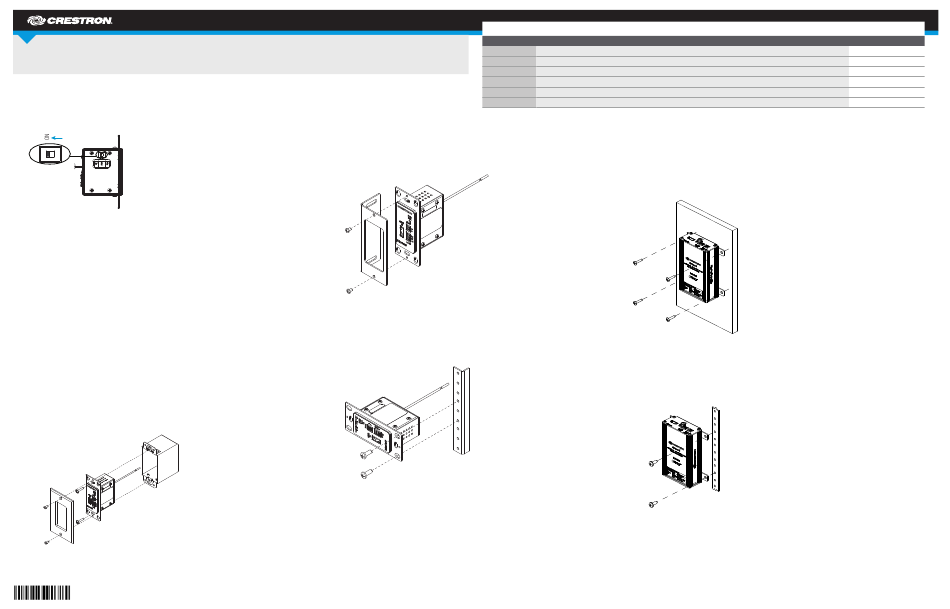

DO Verify the SW1 DIP Switch Setting on the HD-TX3-C
The Crestron HD-TX3-C includes the SW1 DIP switch, which controls the hot plug detect (HPD)
®
signal. Before installing the HD-TX3-C, locate the DIP switch on the unit and verify that the switch is
set in the ON position (default setting). When the switch is set to ON, the HPD signal is sent from the
display device on the HD-RX3-C to the source device on the HD-TX3-C.
NOTE: The OFF position of the SW1 DIP switch is reserved for factory use only.
DO Install the Device
Install the HD-TX3-C and HD-RX3-C as appropriate for the application.
Installing the HD-TX3-C
Install the HD-TX3-C in any of the following ways:
• Into a 1-gang electrical box
• Onto a flat surface
• Onto a rack rail
Installing the HD-TX3-C into a 1-Gang Electrical Box
NOTE: The recommended depth of the electrical box (not included) is a minimum of 2.5 inches
(64 mm).
NOTE: Before installing the HD-TX3-C into an electrical box, connect the ground wire to earth
ground and connect the HDBaseT ® OUT port. Refer to the "DO Connect the Device" section for
additional information.
Install the HD-TX3-C into a 1-gang electrical box as follows:
1. Using the two included #6-32 x 3/4-inch combo head screws, attach the HD-TX3-C to the
electrical box.
2. Attach the desired decorator style faceplate (faceplate and hardware not included).
DO Check the Box
QUANTITY
1
2
2
1
2
2
Installing the HD-TX3-C onto a Flat Surface
Install the HD-TX3-C onto a flat surface as follows:
1. Using the appropriate hardware (not included), attach the included mounting bracket to a flat
surface.
2. Using the two included #6-32 x 3/16-inch Phillips head screws, attach the device to the bracket.
Installing the HD-TX3-C onto a Rack Rail
Install the HD-TX3-C onto the front or rear rail of a rack as follows:
1. Position the device horizontally so that the holes of the left or right mounting flange align with the
holes in the rack rail.
2. Secure the device to the rack rail using two rack mounting screws (not included).
PRODUCT
Bracket (for Interface Module)
Connector, 2-Pin
Connector, 3-Pin
Power Pack, 24 Vdc 0.75 A, 100-240 Vac
Screw, 06-32 x 3/16", Pan Head, Phillips
Screw, 06-32 x 3/4", Truss Head, Combo
Installing the HD-RX3-C
Install the HD-RX3-C in either of the following ways:
• Onto a flat surface
• Onto a rack rail
Installing the HD-RX3-C onto a Flat Surface
Using four mounting screws (not included), attach the HD-RX3-C to a flat surface. Mounting onto a
wall is shown below.
Installing the HD-RX3-C onto a Rack Rail
Install the HD-RX3-C onto the front or rear rail of a rack as follows:
1. Position the left or right mounting flanges of the device so that the holes align with the holes in
the rack rail.
2. Secure the device to the rack rail using two rack mounting screws (not included).
COLOR PART NUMBER
Black 2016054
2003574
2003575
2045865
Black 2007203
Black 2009211
