Further expansion

Transmitter cascading

As mentioned earlier, the AV100,
AV104 and AV200 transmitters
are all capable of supporting
additional transmitter modules (and
their subsequent receivers). This
is achieved using the video and
audio out ports
to provide the
PC
VIDEO
AUDIO
inputs into the
next transmitter
module, and so
on. A limit of
three cascade
connections
(comprising both
transmitter and/or
receiver cascades)
is possible within
any branch of the
system.

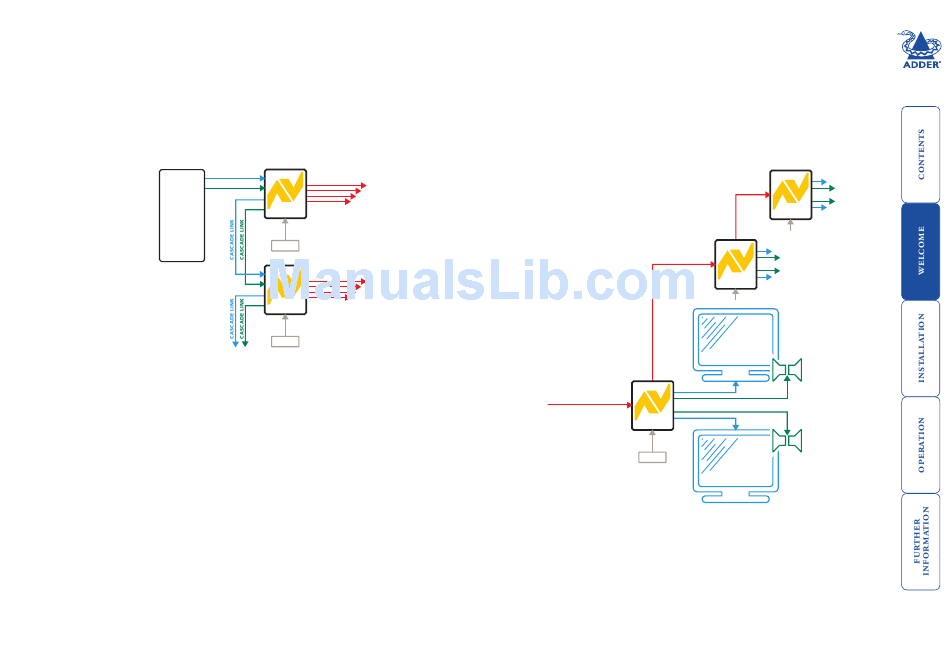

Any of the AV transmitters can be connected in cascade to
provide further audio and video expansion opportunities
STANDARD LINKS
TRANSMITTER
POWER
STANDARD LINKS
TRANSMITTER
POWER

Receiver cascading

This method of expansion is limited
to the AV101 receivers as only they
are equipped with the necessary
cascade port. Using
LINK OUT
the port, the video and
LINK OUT
audio signals are transferred via
CATx cabling to the next
receiver. This receiver can
then drive its own dual
display/speaker sets as well
as provide a further
LINK
to a third and final
OUT
AV101 receiver. A limit of
three cascade connections
CASCADE LINK
(comprising both
transmitter and/or receiver
cascades) is possible within
any branch of the system.
101
STANDARD LINK
RECEIVER
POWER
The AdderLink AV101 receivers offer the further
benefit of receiver cascading to provide multiple
audio and video outputs on every branch
101
CASCADE
LINK
RECEIVER
101
RECEIVER
