Using the optional rack mount chassis

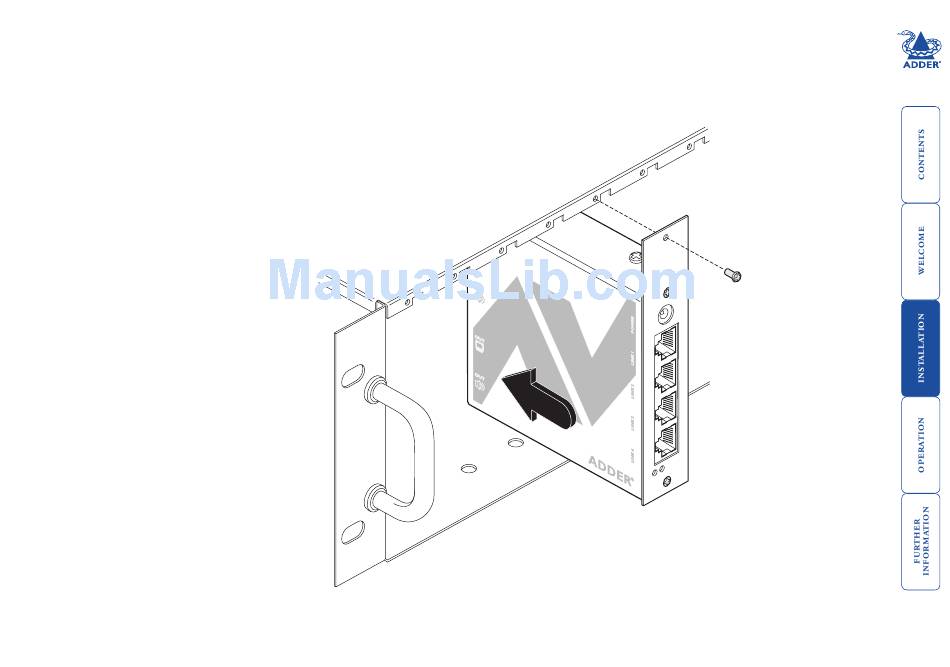

1 Place the optional rack plate onto the front of the transmitter or receiver
module and secure it with the countersunk screws.
2 Orient the module on its side so that its labelled face is the correct way up
and the securing plate is facing away from the rack.
3 Slide the module into the required rack position.
4 The rack mount chassis has a series of holes in its floor that are spaced
to accommodate the screws on the module's lower edge. Ensure that the
screws correctly locate into the holes of the chosen slot. The rack securing
plate on the module should now be flush with the front of the rack mount
chassis.
5 Use the supplied (pan-head) screws, in the top hole of the rack securing
plate to fasten the module to the rack.
