Summary of Contents for Atlona AT-HD4-SI40SR

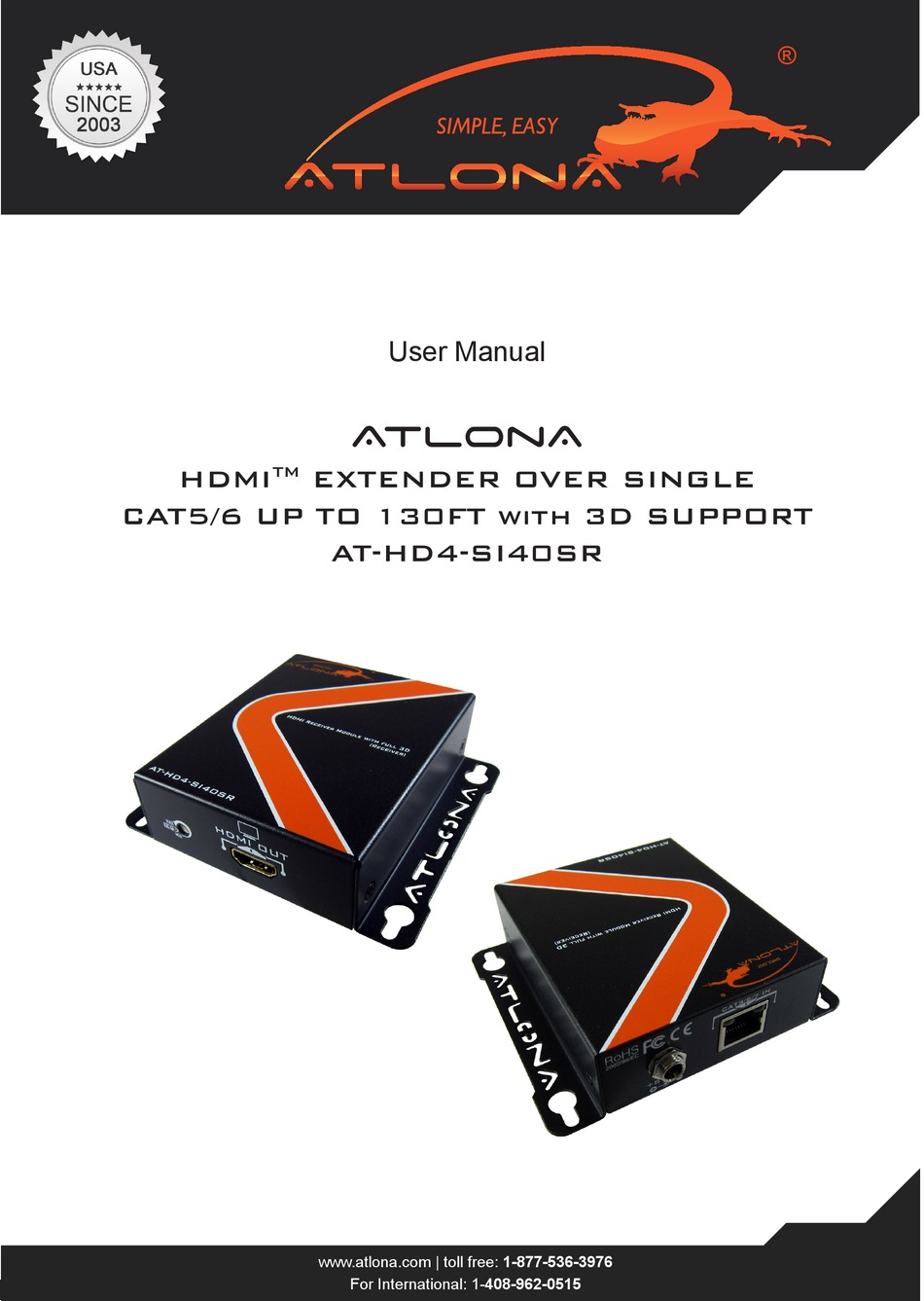

- Page 1 User Manual AtlonA HDMI EXTENDER OVER SINGLE CAT5/6 UP TO 130FT with 3D SUPPORT AT-HD4-SI40SR www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
8. Pin Definition ..........8.1. HDMI ..........8.2. CAT5 [RJ45] ..........9. Connection Diagram ..........10. Performance Guide ..........11. Notice ..........12. Safety Information ..........13. Warranty ..........14. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
The AT-HD4-SI40SR boosts up your video/audio transmission distance up to 60m (200ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV 1080p with 36-bit color depth. AT-HD4-SI40SR also supports the most advanced 3D video format complaint with HDMI 1.4 specification and therefore guarantees... -
Page 4: Specification
Package 1.7 lbs (780g) Fixedness Wall-mounting case with screws Power supply 5V 2A DC Power consumption 1.5 W Operation temperature 32~104°F (0~40°C) Storage temperature -4~140°F (-20~60°C) Relative humidity 20~90% RH (no condensation) www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Panel Descriptions
HDMI male-male cable 5.1.2. Rear Panel 1. +5V DC: Connect to 5V DC power supply. 2. CAT5/6/7 OUT: Plug in a Cat-5/5e/6/7 cable that needs to be linked to the Transmitting module. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Receiving Module
HDMI male-male cable. 5.2.2. Rear Panel 1. +5V DC: Connect to 5V DC power supply. 2. CAT5/6/7 IN: Plug in a Cat-5/5e/6/7 cable that needs to be linked to the Receiving module. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 7: Installation
4. Make sure this Cat-5/5e/6 cable is tightly connected and not loose. 5. Plug in 5V DC power supply module to the power jack of the receiving module of AT-HD4-SI40SR. 6. Plug in 5V DC power supply module to the power jack of the transmitting module of AT-HD4-SI40SR. -
Page 8: Pin Definition
Function PAIR3 TX0- TX0- TX0+ PAIR2 PAIR1 PAIR4 TX0+ TX1- TX1- TX2- TX2- W-BL TX2+ TX2+ TX1+ W-BL W-O O W-G G W-BR W-BR TXC- TX1+ JACK POSITION TXC+ TXC- W-BR TXC+ www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 9: Connection Diagram
Performance rating Type of category cable Wiring Shielding CAT5 CAT5e CAT6 Solid Unshielded (UTP) **** ***** Shielded (STP) **** Stranded Unshielded (UTP) Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at any time www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 10: Notice
Please try Learning EDID of the AVR while the AVR HDMI out is connected to the display (both AVR and Display should be ON) b. Select “MODE” on the transmitter to # 0, #2 or # 4 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 11: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 12: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
