Page 1: User Manual
Atlona HDBaseT HDMI Rental/ Staging Box w/etherCON AT-HDTX-ROADNET & AT-HDRX-ROADNET User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
Rear Panel ..................4 6. Captive Screw Connection ..................5 7. Connection and Installation ..................6 8. Specifications ..................7 9. Safety Information ..................8 10. Warranty ..................9 11. Atlona Product Registration ..................10 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Atlona’s HDBaseT Roadnet Extenders were created for rental and staging applications that need reliability over long distances. Using HDBaseT technology the Roadnet extenders combine audio, video, power (PoCc ), Ethernet, RS-232, and IR control up to 328 feet (100 meters) over a single category cable. -

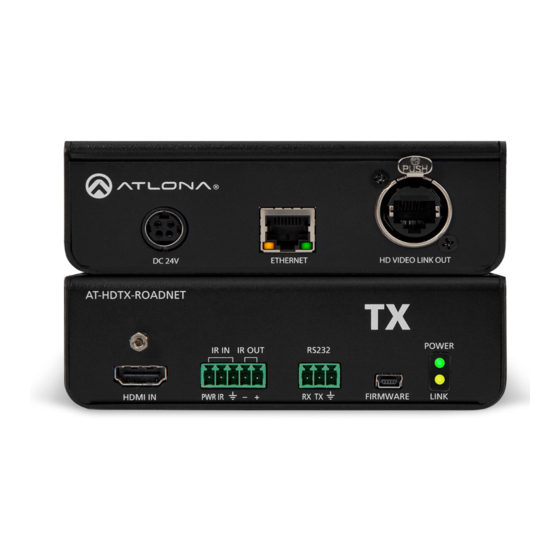

Page 4: Panel Description
AT-HDTX-ROADNET HDMI IN POWER IR IN IR OUT RS232 Panel Description Transmitter FIRMWARE LINK PWR IR RX TX AT-HDTX-ROADNET HDMI IN POWER IR IN IR OUT RS232 FIRMWARE LINK PWR IR RX TX DC 24V ETHERNET HD VIDEO LINK OUT 1. -
Page 5: Captive Screw Connection
╧ Red: PWR White: IR Black: ╧ White: - Red:+ For greater distance and IR rejection from plasma, CFL, and LED panels, purchase the AT-IRX-CS (IR receiver) through atlona.com Includes black, silver, and white bezels. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Connection And Installation
Connection and Installation Note: When installing the extenders, do not install in an enclosed area or cover the vents. Doing so may result in damage to the product and/or area surrounding it. Control Box AT-HDTX-ROADNET HDMI IN POWER IR IN... -
Page 7: Specifications
Specifications Bandwidth 10.2Gbps Ports AT-HDTX-ROADNET AT-HDRX-ROADNET Video input 1 x HDMI 1 x etherCON Video output 1 x etherCON 1 x HDMI IR input 1 x Captive Screw IR output 1 x Captive Screw Firmware update 1 x Mini USB... -
Page 8: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 10: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
