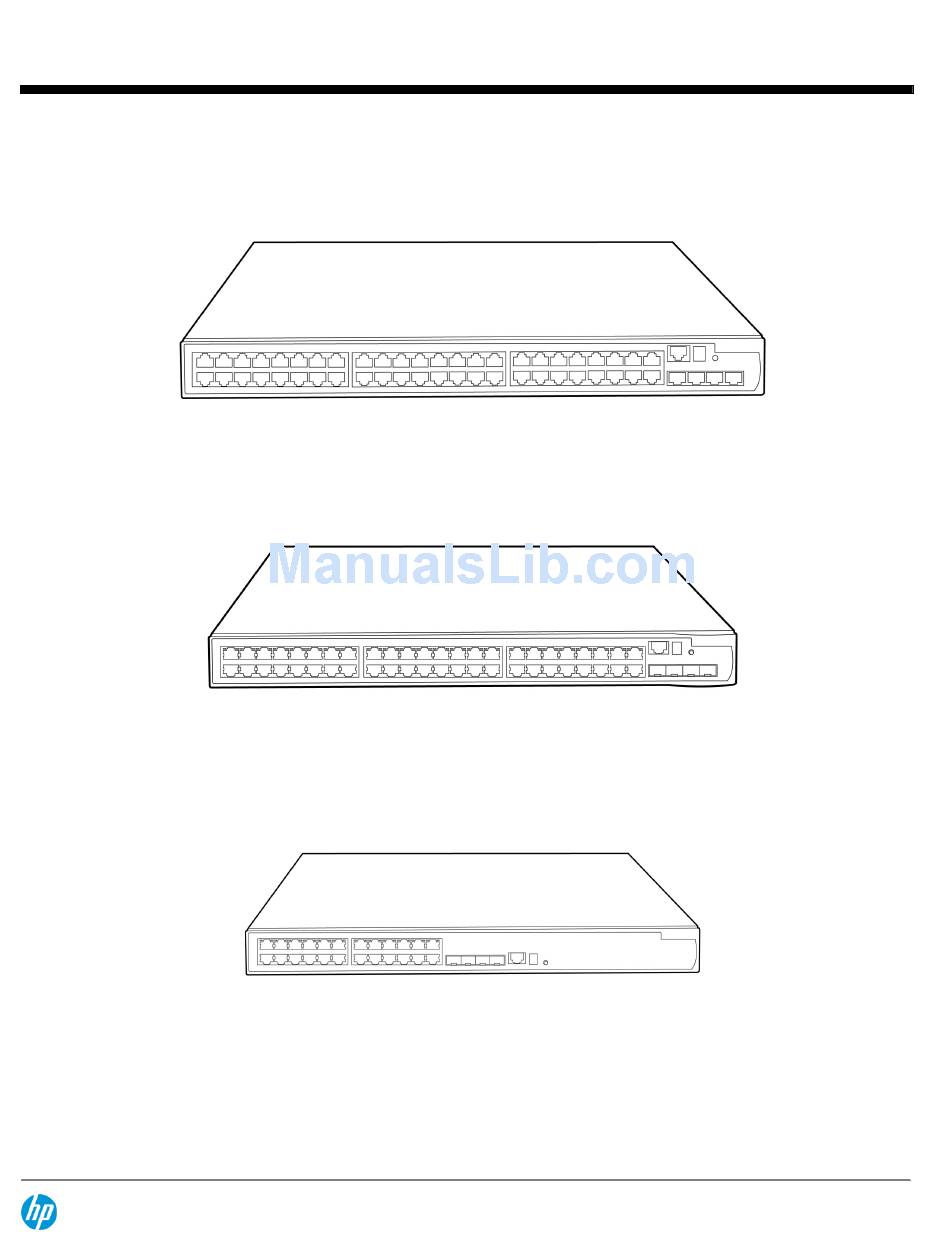

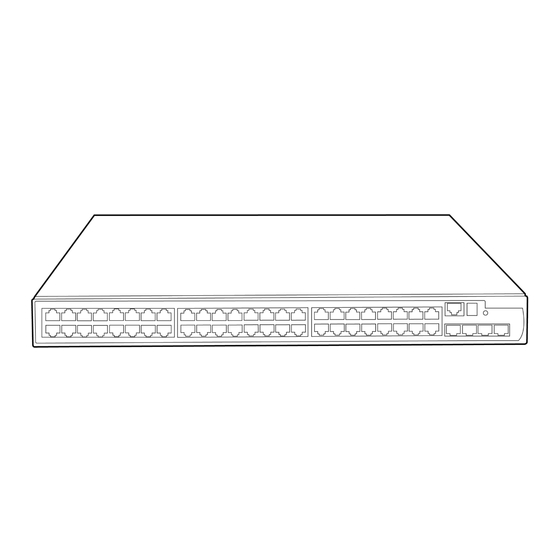

    QuickSpecs HP 5120 EI Switch Series Overview HP 5120-48G EI Switch with 2 Interface Slots HP 5120-48G EI Switch HP 5120-24G EI Switch with 2 Interface Slots DA - 13850 North America — Version 19 — August 19, 2013 Page 1...

  • Page 2

    HP 5120-24G EI Switch HP 5120-48G-PoE+ EI Switch with 2 Interface Slots HP 5120-24G-PoE+ EI Switch with 2 Interface Slots Models HP 5120-48G EI Switch with 2 Interface Slots JE069A HP 5120-48G EI Switch JE067A HP 5120-24G EI Switch with 2 Interface Slots...

  • Page 3: Key Features, Product Overview, Features And Benefits

    Product overview The HP 5120 EI Switch Series is comprised of Gigabit Ethernet switches that support static Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide up to four 10-Gigabit Ethernet (10 GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability while reducing operational complexity.

  • Page 4

    QuickSpecs HP 5120 EI Switch Series Overview performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes Management VLAN: segments traffic to and from management interfaces, including CLI/telnet, a Web browser interface, and...

  • Page 5

    QuickSpecs HP 5120 EI Switch Series Overview Layer 2 switching 16K MAC address table: provides access to many Layer 2 devices VLAN support and tagging: support IEEE 802.1Q with 4,094 simultaneous VLAN IDs GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs IEEE 802.1ad QinQ and Selective QinQ: increase the scalability of an Ethernet network by providing a hierarchical structure;...

  • Page 6

    †HP warranty includes repair or replacement of hardware for as long as you own the product, with next business day advance replacement (available in most countries). The disk drive included with HP AllianceOne Advanced Services and Services zl Modules, HP Threat Management Services zl Module, HP AllianceOne Extended zl Module with Riverbed Steelhead, HP MSM765zl Mobility Controller and HP Survivable Branch Communication zl Module powered by Microsoft Lync has a five-year hardware warranty.

  • Page 7

    JE066A#B2B C15 to C14 Jumper Cord (NA) C15 PDU ROW JE066A#B2C C15 to C14 Jumper Cord (ROW) HP 5120-24G EI Switch with 2 Slots JE068A 24 RJ-45 autosensing 10/100/1000 ports See Configuration 4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP...

  • Page 8

    C15 to C14 Jumper Cord (ROW) Configuration Rules: Note 1 The following Transceivers install into this Module: (Use #0D1 if switch is CTO) HP X110 100M SFP LC FX Dual Mode Transceiver JD497A HP X120 1G SFP LC SX Transceiver JD118B...

  • Page 9

    \ max=4 SFP Transceivers 0 - port expansion module slots 1 - Power Supply Included 1U - Height HP 5120-48G EI Switch with 2 Slots - CTO JE069AC DA - 13850 North America — Version 19 — August 19, 2013 Page 9...

  • Page 10

    JG706A - HP 51xx CTO Enablement. (Max 1 switch per SSP) Remarks: Option JxxxxC is used to indicate a Switch Chassis that has factory integrated options BUT NOT integrated into HP Universal Rack by the HP Factory.

  • Page 11

    JE066A#B2B C15 to C14 Jumper Cord (NA) C15 PDU ROW JE066A#B2C C15 to C14 Jumper Cord (ROW) HP 5120-24G EI Switch with 2 Slots JE068A 24 RJ-45 autosensing 10/100/1000 ports See Configuration 4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP...

  • Page 12

    C15 to C14 Jumper Cord (ROW) Configuration Rules: Note 1 The following Transceivers install into this Module: HP X110 100M SFP LC FX Dual Mode Transceiver JD497A HP X110 100M SFP LC LX Dual Mode Transceiver JD498A HP X120 1G SFP LC SX Transceiver...

  • Page 13

    HP 5120 EI Switch Series Configuration Note 10 If the CTO Switch Chassis needs to be racked, Then the CTO Base Model needs to integrate (with #0D1) to the HP Universal Rack. Remarks: Drop down under power supply should offer the following options and results: Switch to PDU Power Cord - Should replace localized option with #B2B in AMS or #B2C in APJ or EMEA.

  • Page 14

    HP X130 10G XFP LC SR Transceiver JD117B Note 3 The following Transceivers install into this Module: (Use #0D1 if switch is CTO) HP X110 100M SFP LC FX Dual Mode Transceiver JD497A HP X120 1G SFP LC SX Transceiver JD118B...

  • Page 15

    JD364B HP X230 CX4 to CX4 3m Cable JD365A Note: Two JD365A - HP X230 CX4 to CX4 3m Cable should be added by default if Module is selected. Transceivers SFP Transceivers HP X110 100M SFP LC FX DM Transceiver...

  • Page 16

    QuickSpecs HP 5120 EI Switch Series Configuration HP X240 10G SFP+ SFP+ 3m DAC Cable JD097C HP X240 10G SFP+ SFP+ 5m DAC Cable JG081C HP X240 10G SFP+ 7m DAC Cable JC784C XFP Transceivers HP X130 10G XFP LC LR 1310nm Transceiver...

  • Page 17: Technical Specifications

    QuickSpecs HP 5120 EI Switch Series Technical Specifications HP 5120-48G-PoE EI Switch with 2 slots (JE071A) Ports 48 RJ-45 autosensing 10/100/1000 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE- TX: half or full;...

  • Page 18

    For details about services and response times in your area, please contact your local HP sales office. HP 5120-48G EI Switch with 2 Interface Slots (JE069A) Ports 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);...

  • Page 19

    QuickSpecs HP 5120 EI Switch Series Technical Specifications 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 2 port expansion module slots 1 RJ-45 serial console port Supports a maximum of 48 autosensing 10/100/1000 ports Physical characteristics Dimensions 17.32(w) x 11.81(d) x 1.72(h) in (44 x 30 x 4.36 cm) (1U height) Weight 11.02 lb.

  • Page 20

    4-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HS687E) 5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (HS688E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers.

  • Page 21

    QuickSpecs HP 5120 EI Switch Series Technical Specifications Routing/Switching 96 Gbps capacity Routing table size 32 entries Environment Operating temperature 32°F to 113°F (0°C to 45°C) Operating relative 10% to 90%, noncondensing humidity Nonoperating/Storage -40°F to 158°F (-40°C to 70°C)

  • Page 22

    For details about services and response times in your area, please contact your local HP sales office. HP 5120-24G-PoE EI Switch with 2 slots (JE070A) Ports 24 RJ-45 autosensing 10/100/1000 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE);...

  • Page 23

    QuickSpecs HP 5120 EI Switch Series Technical Specifications Electrical characteristics Maximum heat 425 BTU/hr (448.38 kJ/hr) dissipation Voltage 100-240 VAC DC Voltage -52 to -55 VDC Idle power 55 W Maximum power rating 495 W PoE power 370 W Frequency...

  • Page 24

    For details about services and response times in your area, please contact your local HP sales office. HP 5120-24G EI Switch with 2 Interface Slots (JE068A) Ports 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);...

  • Page 25

    4-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HS687E) 5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (HS688E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers.

  • Page 26

    QuickSpecs HP 5120 EI Switch Series Technical Specifications Ports 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP...

  • Page 27

    For details about services and response times in your area, please contact your local HP sales office. HP 5120-48G-PoE+ EI Switch with 2 Interface Slots (JG237A) Ports 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+);...

  • Page 28

    QuickSpecs HP 5120 EI Switch Series Technical Specifications 10 Gbps Latency < 2.6 µs Throughput 142.9 million pps Routing/Switching 192 Gbps capacity Routing table size 32 entries Environment Operating temperature 32°F to 113°F (0°C to 45°C) Operating relative 10% to 90%, noncondensing...

  • Page 29

    For details about services and response times in your area, please contact your local HP sales office. HP 5120-24G-PoE+ EI Switch with 2 Interface Slots (JG236A) Ports 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+);...

  • Page 30

    3 Yr 6 hr Call-to-Repair Onsite (UW963E) 4 Yr 6 hr Call-to-Repair Onsite (UW964E) 5 Yr 6 hr Call-to-Repair Onsite (UW965E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

  • Page 31

    QuickSpecs HP 5120 EI Switch Series Technical Specifications TACACS/TACACS+ RFC 3162 RADIUS and IPv6 Web UI RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses General protocols RFC 3315 DHCPv6 (client and relay) IEEE 802.1ad Q-in-Q MIBs IEEE 802.1D MAC Bridges IEEE 802.1p Priority RFC 1212 Concise MIB Definitions IEEE 802.1Q VLANs...

  • Page 32

    QuickSpecs HP 5120 EI Switch Series Technical Specifications (VACM) for the Simple Network Management Protocol (SNMP) DA - 13850 North America — Version 19 — August 19, 2013 Page 32...

  • Page 33

    HP X130 10G SFP+ LC LRM Transceiver JD093B HP X130 10G SFP+ LC LR Transceiver JD094B HP X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable JD095C HP X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable JD096C...

  • Page 34

    QuickSpecs HP 5120 EI Switch Series Accessories HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable QK736A HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable QK737A HP X230 Local Connect 50cm CX4 Cable JD363B Power Supply HP RPS 800 Redundant Power Supply...

  • Page 35

    For details about services and response times in your area, please contact your local HP sales office. HP 5500 1-port 10GbE XFP Ports 1 XFP 10-GbE port; Duplex: full only...

  • Page 36

    For details about services and response times in your area, please contact your local HP sales office. HP X125 1G SFP LC LH70 Ports 1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)

  • Page 37

    For details about services and response times in your area, please contact your local HP sales office. HP X120 1G SFP LC LX Ports 1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)

  • Page 38

    Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP X110 100M SFP LC LX10 Ports 1 LC 100 Mbps port...

  • Page 39

    For details about services and response times in your area, please contact your local HP sales office. HP X120 1G SFP LC BX 10- Ports 1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-D); Duplex:...

  • Page 40

    Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP 0.5 m Multimode OM3 Cabling Cable type: LC/LC Optical Cable 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective...

  • Page 41

    Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP 1 m Multimode OM3 Cabling Cable type: LC/LC Optical Cable 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective...

  • Page 42

    For details about services and response times in your area, please contact your local HP sales office. DA - 13850 North America — Version 19 — August 19, 2013 Page 42...

  • Page 43

    For details about services and response times in your area, please contact your local HP sales office. DA - 13850 North America — Version 19 — August 19, 2013 Page 43...

  • Page 44

    For details about services and response times in your area, please contact your local HP sales office. DA - 13850 North America — Version 19 — August 19, 2013 Page 44...

  • Page 45

    For details about services and response times in your area, please contact your local HP sales office. DA - 13850 North America — Version 19 — August 19, 2013 Page 45...

  • Page 46

    For details about services and response times in your area, please contact your local HP sales office. DA - 13850 North America — Version 19 — August 19, 2013 Page 46...

  • Page 47

    For details about services and response times in your area, please contact your local HP sales office. HP 1 m PremierFlex OM3+ Notes Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

  • Page 48

    For details about services and response times in your area, please contact your local HP sales office. HP 5 m PremierFlex OM3+ Notes Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

  • Page 49

    For details about services and response times in your area, please contact your local HP sales office. HP 30 m PremierFlex Notes Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

  • Page 50

    Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP RPS1600 Redundant Ports 8 redundant power supply ports Restrictions: two -56V/25A DC(PoE);...

  • Page 51

    Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP RPS1600 1600W AC Physical characteristics Dimensions 8.19(d) x 4.96(w) x 1.63(h) in.

  • Page 52

    The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
