Removing the Magazine from the Unit

The following illustration shows the correct way to remove the magazine from its bay.
You cannot remove the magazine if the unit is password protected or locked by
Note
host software through a Prevent Medium Removal SCSI command.
When ejecting the magazine it automatically pops out a few inches. With one hand, grip the handle on
the outer side of the magazine bezel and hold the other hand under the magazine. See
Pull out the magazine carefully, keeping it horizontally level with the library. If the magazine is filled
with cartridges, be prepared for the weight of the magazine. Keep one hand underneath the magazine
to prevent the back of the magazine falling down when it leaves the magazine bay.

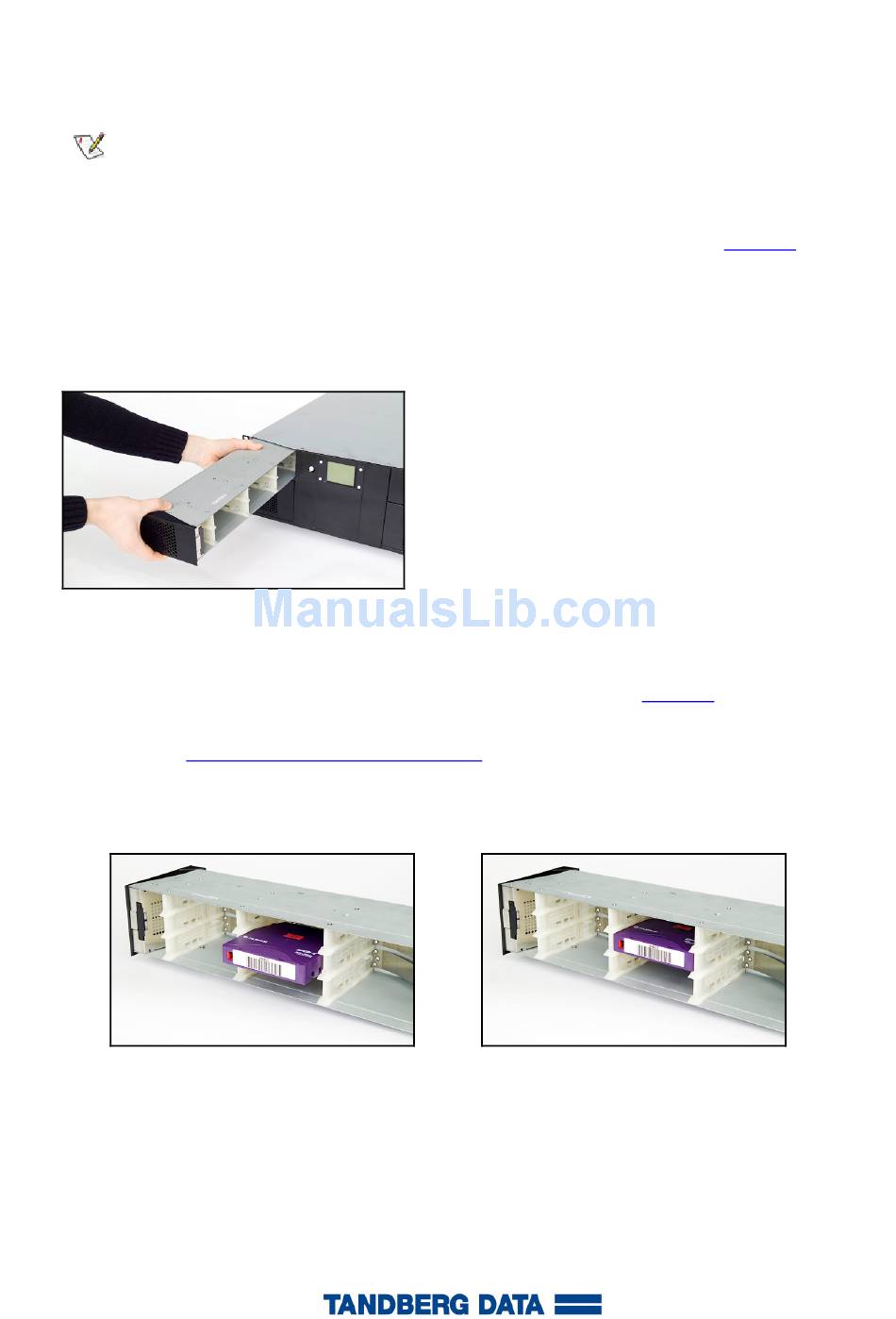

Figure 32. Removing a Magazine from the Library

Inserting Cartridges into the Magazine

When inserting cartridges, the access door of the cartridge must face the magazine slot opening.
Push the cartridge carefully into the magazine slot until it locks in place. See
NOTE: The rear side of the cartridge with the Write Protect switch and the barcode label must be
facing outwards. Make sure the cartridges latch properly. For handling of the cartridges in the
magazines, see Working With Cartridges and

Figure 33. Inserting a Cartridge into the Magazine Slot

a) Gently push the cartridge into the
magazine slot until it locks in place.
NOTE: The write protect switch and the
barcode label (if any) must be facing
outwards.
68
Barcodes.
b) The cartridge locked in place. Make
sure that the cartridge latch properly.
Figure 32.
Figure 33.
