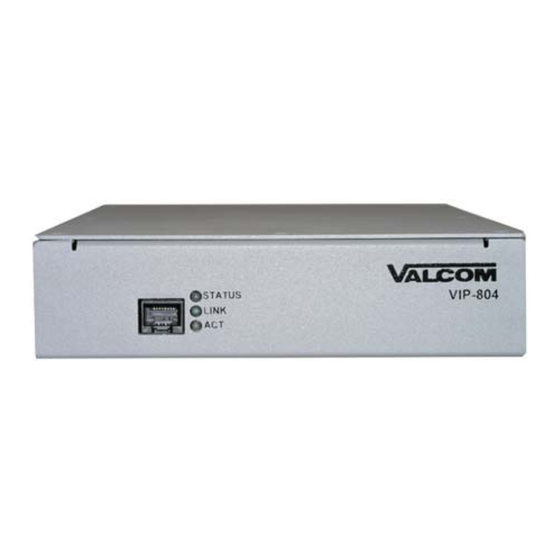

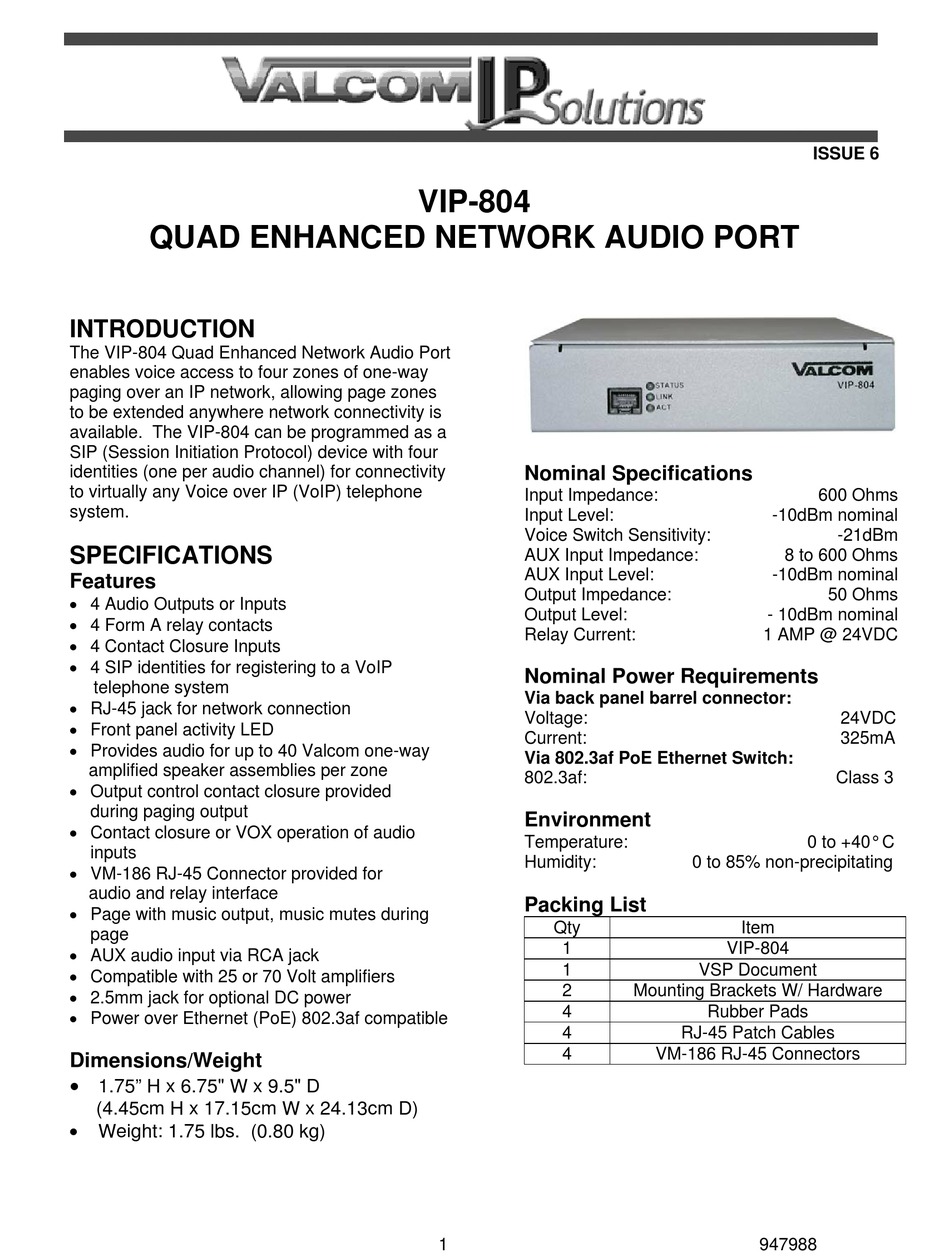

Valcom VIP-804 User Manual

QUAD ENHANCED NETWORK AUDIO PORT
INTRODUCTION
The VIP-804 Quad Enhanced Network Audio Port
enables voice access to four zones of one-way
paging over an IP network, allowing page zones
to be extended anywhere network connectivity is
available. The VIP-804 can be programmed as a
SIP (Session Initiation Protocol) device with four
identities (one per audio channel) for connectivity
to virtually any Voice over IP (VoIP) telephone
system.

SPECIFICATIONS

Features
 4 Audio Outputs or Inputs
 4 Form A relay contacts
 4 Contact Closure Inputs
 4 SIP identities for registering to a VoIP
telephone system
 RJ-45 jack for network connection
 Front panel activity LED
 Provides audio for up to 40 Valcom one-way
amplified speaker assemblies per zone
 Output control contact closure provided
during paging output
 Contact closure or VOX operation of audio
inputs
 VM-186 RJ-45 Connector provided for
audio and relay interface
 Page with music output, music mutes during
page
 AUX audio input via RCA jack
 Compatible with 25 or 70 Volt amplifiers
 2.5mm jack for optional DC power
 Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight

1.75" H x 6.75" W x 9.5" D
(4.45cm H x 17.15cm W x 24.13cm D)
 Weight: 1.75 lbs. (0.80 kg)
VIP-804
Nominal Specifications
Input Impedance:
Input Level:
Voice Switch Sensitivity:
AUX Input Impedance:
AUX Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via back panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity:
Packing List
Qty
1
1
2
4
4
4
1
ISSUE 6
-10dBm nominal
8 to 600 Ohms
-10dBm nominal
- 10dBm nominal
1 AMP @ 24VDC
0 to +40° C
0 to 85% non-precipitating
Item
VIP-804
VSP Document
Mounting Brackets W/ Hardware
Rubber Pads
RJ-45 Patch Cables
VM-186 RJ-45 Connectors
947988
600 Ohms
-21dBm
50 Ohms
24VDC
325mA
Class 3
