Configuring the VP-727A-BA Balanced Audio Switcher
6.3 Configuring the VP-727A-BA with the VP-727xl
The VP-727A-BA can be controlled by the VP-727T in conjunction with one
or more VP-727xl or VP-727 units. The VP-727A-BA can be connected to the:
• VP-727xl (see Figure 4) or the VP-727 (see Figure 5)
• VP-727T via the VP-727xl or the VP-727 using the RS-485 ports
The example in Figure 4 illustrates how to connect two VP-727A-BA machines
and two VP-727xl machines to a VP-727T controller.
On each VP-727A-BA machine, set DIP 8 to ON. The other dipswitches are set to

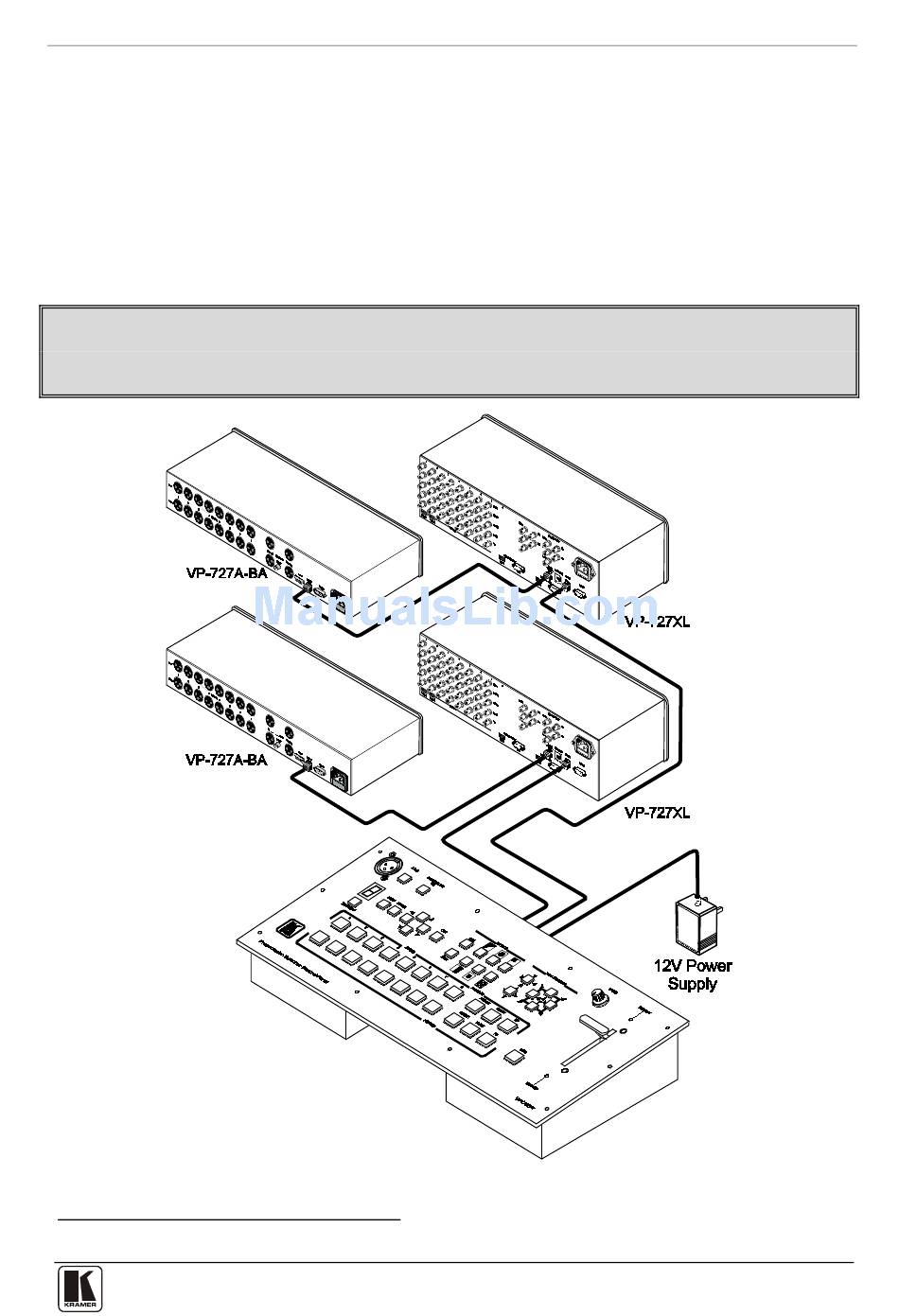

Figure 4: Connecting 2 VP-727A-BA machines to the VP-727T via 2 VP-727xl Machines

1 Or the VP-727
OFF
1
and the VP-727T
11
