Configuring the VP-727A-BA Balanced Audio Switcher

6.2 Connecting a PC (via RS-232) to a Standalone VP-727A-BA

You can connect a PC (or other controller) to a standalone VP-727A-BA via
the RS-232 port for remote control and for upgrading the firmware.
To connect a PC to a VP-727A-BA unit, using the Null-modem adapter
provided with the machine (recommended):
• Connect the RS-232 9-pin D-sub rear panel port on the VP-727A-BA unit
to the Null-modem adapter and connect the Null-modem adapter with a
9-wire flat cable to the RS-232 9-pin D-sub port on your PC
To connect a PC to a VP-727A-BA unit, without using a Null-modem adapter:
• Connect the RS-232 9-pin D-sub port on your PC to the RS-232 9-pin
D-sub rear panel port on the VP-727A-BA unit, forming a
cross-connection
1 When the VP-727A-BA is configured with the VP-727xl, the audio follows the video and the VP-727A-BA cannot be
controlled via a PC
2 Also known as a Null-modem connection
10
2
, as Figure 3 illustrates
DB9 (From PC)

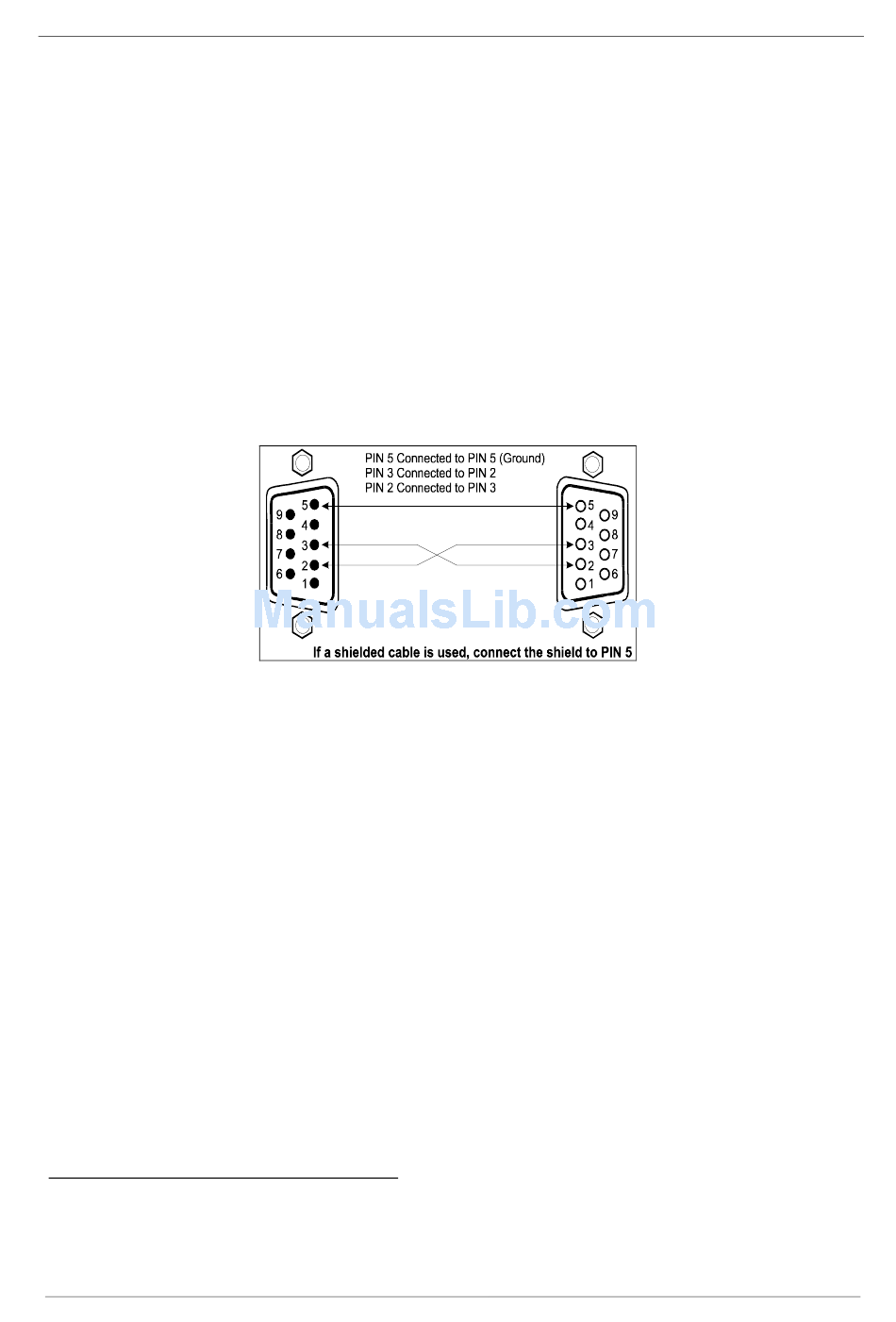

Figure 3: Connecting the PC

DB9 (To Presentation
Switcher / Scaler)
