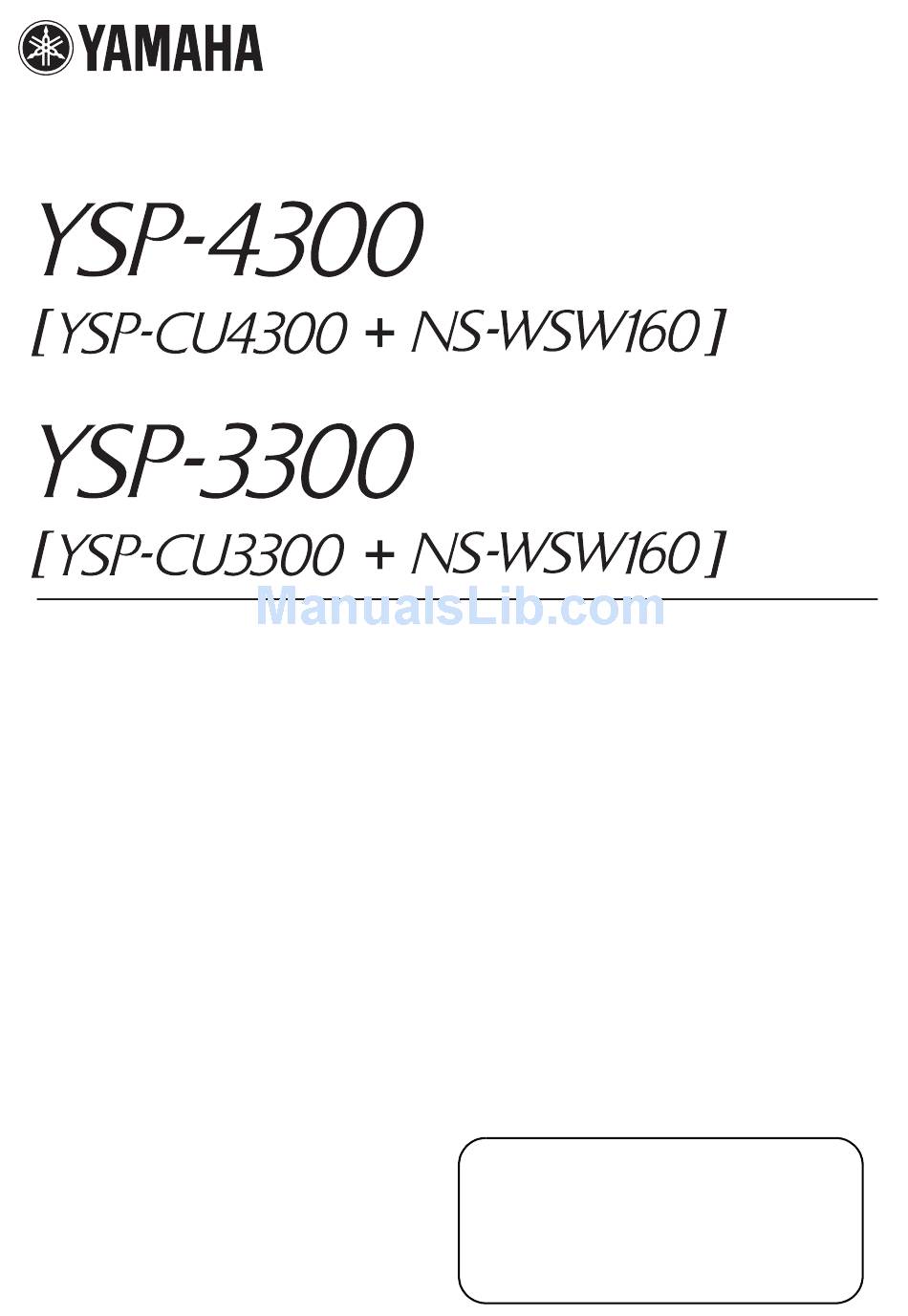

Digital Sound Projector™
Owner's Manual
English
for North America

Advertisement

Table of Contents
loading

Related Manuals for Yamaha YSP-4300

Summary of Contents for Yamaha YSP-4300

  • Page 1 Digital Sound Projector™ Owner’s Manual English for North America...

  • Page 2: What You Can Do With This Unit

    What you can do with this unit Make sure you read precaution in “Safety and Accessory Information” (separate booklet) carefully before using this unit. Blu-ray disc player Audio/video device Preparation Installing the unit p. 11 Connecting a satellite/ Connecting a Blu-ray cable TV tuner disc player p.
  • Page 3 Compressed Music Enhancer p. 34 p. 33 Target playback Wireless playback for an iPod or computer p. 39 p. 48 Playback for an iPod or USB device over a FM tuner (YSP-4300 only) USB connection (YSP-4300 only) p. 48 p. 44...

  • Page 4: Table Of Contents

    Center unit rear panel (back) ..........6 Playing music stored on an iPod or USB device Subwoofer rear panel (back)........... 7 over a USB connection (YSP-4300 only) ..... 48 Front panel display..............8 Connecting an iPod ...............48 Remote control................ 9 Operating an iPod via the TV screen........49...

  • Page 5: Preparation

    In the standby mode, this unit consumes a small amount of (☞p. 8). power in order to search for HDMI signals or to receive USB jack (YSP-4300 only) infrared signals from the remote control. Enables connection of a USB device (☞p. 48, 54).

  • Page 6: Center Unit Rear Panel (Back)

    Controls and functions Center unit rear panel (back) FM ANTENNA jack (YSP-4300 only) HDMI IN jacks Connect an FM antenna (☞p. 20). For connecting HDMI compatible Blu-ray disc player, satellite and cable TV tuner and game console (☞p. 18, 19).

  • Page 7: Subwoofer Rear Panel (Back)

    Controls and functions Subwoofer rear panel (back) LINK LINK Group ID switches LINK indicator When the center unit and subwoofer are connected Shows wireless connection status (☞p. 21). wirelessly, sound is output from the subwoofer (yAired). For Heat discharge unit a wireless connection, use the same group ID as the center Discharges heat generated inside the subwoofer.

  • Page 8: Front Panel Display

    Controls and functions Front panel display Playback indicators (YSP-4300 only) VOL indicator Lights while music stored on an iPod or USB device Indicates the current volume level (☞p. 32). connected to the USB jack is playing (☞p. 48, 54). HDMI indicator TARGET indicator Lights up when HDMI signals are input.

  • Page 9: Remote Control

    Controls and functions Remote control BEAM key Infrared signal transmitter Switches the sound beam output method (☞p. 37). ENHANCER key Turns Compressed Music Enhancer to on or off (☞p. 33). Input selector keys Select the playback component (☞p. 32). CINEMA DSP program keys When playback is in surround playback mode, select the CINEMA DSP programs (☞p.
  • Page 10 Turns the Eco function on or off (☞p. 41). Switches this unit’s input source to FM radio. REMOTE REPEATER key Tuner operation keys (YSP-4300 only) Turns the TV Remote Repeater function on or off (☞p. 12). Press to select or register an FM station (☞p. 44).

  • Page 11: Installation

    Installation To achieve desired surround sound effects, install this unit where there are no objects such as furniture obstructing the path of sound waves, referred to as “sound beam(s)” in this manual (☞p. 14). Depending on the location where the unit is installed, it may be easier to connect external devices such as a TV first.

  • Page 12: Enjoying Surround Effects Regardless Of Conditions (My Surround)

    Installation Enjoying surround effects regardless of conditions (My Surround) The My Surround function creates rich surround sound effects in rooms with less than optimal surround sound conditions (☞p. 11). See “Changing the audio output method for surround playback” (☞p. 36, 37) for more information. If the TV remote control does not work properly after the center unit is installed (TV Remote Repeater function) The TV may not respond to commands from...

  • Page 13: Positioning The Subwoofer On Its Side

    Installation Positioning the subwoofer on its side The subwoofer can be laid on its side when positioned on a rack. Turn counterclockwise Removing the legs and sheets Sheet Attaching the legs and sheets Turn clockwise...

  • Page 14: Installing This Unit

    Installation Installing this unit This unit outputs sound beam as shown in the illustrations below. Install this unit where there are no obstacles such as furniture obstructing the path of sound beams. Otherwise, the desired surround sound effects may not be achieved. You may install this unit in parallel with the wall or in the corner.
  • Page 15 Installation Installing in a non-square room Install this unit so that the sound beams can be reflected off the walls. Irregularly shaped rooms with solid walls on all sides Irregularly shaped rooms that are open to a hallway on one side Example for installing the unit in living room •...

  • Page 16: Preparing Remote Control

    Installation Preparing remote control Before installing batteries or using the remote control, be sure to read battery and remote control precautions in “Safety and Accessory Information” (separate booklet). Installing the batteries Operation range Pull up on the latch to release the cover Within 6 m (20 ft) Insert the...

  • Page 17: Connections

    Connections When external devices such as a TV, Blu-ray disc player, and/or game console are connected, audio and video signals are transmitted as shown below. Audio connection Video connection Audio and video connection This unit: Plays audio from TV broadcasts, Blu-ray discs, etc. HDMI cable Optical cable HDMI cable...

  • Page 18: Connecting A Tv And A Blu-Ray Disc Player

    Connections • Do not connect the power cable until all connections are completed. • Do not use excessive force when inserting the cable plug. Doing so may damage the cable plug and/or jack. Connecting a TV and a Blu-ray disc player For the cable connection, follow the procedure below.

  • Page 19: Connecting A Game Console Or Satellite/Cable Tv Tuner

    Connections Connecting a game console or satellite/cable TV tuner External device (example) Connecting cable Satellite/cable TV tuner HDMI cable (optional) Game console HDMI cable (optional) HDMI compatible Game console HDMI cable (optional) Satellite/cable TV tuner Optical cable (supplied) Composite video cable (optional) not HDMI compatible Game console RCA stereo cable (optional)

  • Page 20: Connecting The Fm Antenna (Ysp-4300 Only)

    Connections Connecting the FM antenna (YSP-4300 only) Connect the supplied FM antenna via the FM ANTENNA jack. FM antenna Connecting the wireless subwoofer To connect the subwoofer (NS-WSW160) to the center unit Group ID switches wirelessly (yAired), the same group ID must be assigned to the center unit and subwoofer.

  • Page 21: Initial Settings

    C1–C3: Use when playing music stored on a computer via this unit (☞p. 48). To prevent wireless connection of another yAired Yamaha sound system or device installed near this unit or the YIT-W12TX, assign a different group ID to this unit and the YIT-W12TX.

  • Page 22: Selecting The Language For Menu Display

    Initial settings Selecting the language for menu display Turn the unit and TV on. Switch the TV’s input to display video input from this unit (☞p. 21). Press and hold the SETUP key until the “OSD LANGUAGE” menu appears on your OSD LANGUAGE ENTER SETUP...

  • Page 23: Auto Setup For Appropriate Surround Effects (Intellibeam)

    Initial settings Assembling the supplied cardboard Auto setup for appropriate microphone stand surround effects (IntelliBeam) Due to differences in room sizes and shapes, positioning of this Fit in unit, and the lifestyle of users, settings for each channel must be Remove adjusted in order for this unit to provide the optimal listening experience.

  • Page 24: Using Auto Setup (Intellibeam)

    Initial settings Using AUTO SETUP (IntelliBeam) Notes • It is normal for loud test tones to be output during the AUTO SETUP procedure. Make sure that there are no children around in the listening room while the AUTO SETUP procedure is in progress.
  • Page 25 Initial settings Press the ENTER key to confirm the The screen below is displayed after connecting results. IntelliBeam microphone to the unit. Measurement results are applied to this unit. AUTO SETUP (PREPARATION & CHECK) Please connect the MIC. Please place the MIC at least AUTO SETUP COMPLETE 1.8m/6ft away from Sound Pro- jector.
  • Page 26 Initial settings AUTO SETUP via setup menu Place the IntelliBeam microphone at your normal listening position, and press the SETUP key. See “Installing the IntelliBeam microphone” (☞p. 23) for instructions on positioning the IntelliBeam microphone. Press the key to select “BEAM” and then press the key.

  • Page 27: Error Messages

    Initial settings If an error message is displayed ERROR E-4: Please check MIC position. MIC should be set in front of Sound Projector. Please re-try. If an error message is displayed on the TV screen, see “Error messages” below to determine the cause and resolve the problem. Cause Remedy Follow the instructions below to begin measurement again.

  • Page 28: Saving This Unit's Settings To System Memory

    Initial settings Saving this unit’s settings to system memory Three sets of settings can be saved to this unit's memory, enabling quick loading of settings optimized for specific listeners or environmental changes as needed. Refer to the examples below to save IntelliBeam measurement results and settings such as surround setting to system memory, or to load a pre-defined settings.
  • Page 29 Initial settings Saving settings to system memory Loading settings Hold down the SYSTEM MEMORY 1, 2, Press the SYSTEM MEMORY 1, 2, or 3 or 3 key until “M1 Save?”, “M2 Save?”, or key corresponding to settings to be “M3 Save?”, corresponding to the button loaded.

  • Page 30: Operating The Unit By Tv's Remote Control (Hdmi Control)

    • Navigating this unit’s setup menu displayed on the TV • Operating the browse/playback screens for an iPod or USB device connected to the USB jack (YSP-4300 only) • Even if your TV supports the HDMI control function, some functions may not be available.
  • Page 31 When the Eco function (☞p. 41) is enabled, this unit enters standby mode if the TV is selected for audio output using the TV’s remote control. YSP-4300 only The example of TV settings • From the setup menu on your TV, select “Link setting”...

  • Page 32: Playback

    PLAYBACK Playback features Basic operation for playback ENHANCER Press the key to turn on this unit. HDMI1 Turn on components (TV, Blu-ray disc Input selector player, game console, etc.) connected to keys this unit. Select a component by pressing the input selector key corresponding to the connection of external components.

  • Page 33: Enjoying Sound Based On Your Preference

    • By default, this function is set to “ON” when the input source is YIT or USB (YSP-4300 only). It is set to “OFF” with any other input • If you have problems hearing words: Select C (center) to increase the source.

  • Page 34: Enjoying Realistic Surround Sounds (Cinema Dsp)

    The CINEMA DSP programs are not available in the following conditions. This unit is equipped with a Yamaha CINEMA DSP (digital sound field processing) chip containing several sound field programs used to • Audio signals with sampling frequency of higher than 48 kHz are enhance your playback experience.
  • Page 35 Playback features CINEMA DSP options ENTERTAINMENT (use the ENTERTAINMENT key to select) MOVIE (use the MOVIE key to select) Sports Sci-Fi This program reproduces the energetic environment of live This program clearly reproduces dialogs and special sound sports broadcasting, converging a commentator’s voice on the effects of the latest science fiction films and lets you feel a center and broadening the overall atmosphere of the stadium, broad and expansive cinematic space.

  • Page 36: Changing The Audio Output Method For Surround Playback

    Playback features Changing the audio output method for surround playback Specify the sound beam output method for surround sound BEAM playback. Press the BEAM key to switch the sound beam output method. With 5.1-channel (or 2-channel) input Sound beams are output from 5.1 channels. Choose from 5BEAM (5 Beam), ST+3BEAM (Stereo + 3 Beam), 3BEAM (3 Beam), and MY SUR.
  • Page 37 Playback features Sound beam output options and characteristics Objective/ Number of channels possible Beam modes for “5.1ch” Beam modes for “7.1ch” scenario For enjoying 5BEAM (5 Beam) 5BEAM+2 (5 Beam Plus 2) surround sound Outputs sound beams Outputs sound beams effects on the movie, from the front right and from the front right and...

  • Page 38: Setting The Surround Decoder

    Playback features Setting the surround decoder When this unit plays back 2-channel or 5.1-channel sources in the surround mode, surround decoder enables them playback for 7.1-channel. You can enjoy a variety of surround sound effects by switching the decoder. To enable a surround decoder, press the SURROUND key to select “DSP Off”.

  • Page 39: Delivering Sound To A Specified Location (Target Playback Mode)

    • When playing content stored on an iPod or USB device connected to the USB jack, press the key while “TARGET” is displayed (YSP-4300 only). Beam angle adjusted 16° to the left TARGET L16 For clear sound at a distance...

  • Page 40: Using Useful Features

    Playback features Using useful features Automatic volume level adjustment (UniVolume) This function automatically compensates for extreme differences in volume for more comfortable listening in the following types of situations. • When switching the channel • When a TV program changed to commercial •...

  • Page 41: Saving Energy With The Eco Function

    Press the ECO key. “ECO OFF” is displayed in the front panel display. This unit enters standby mode after 12 hours have passed since the last YSP-4300 only operation was performed, even when the Eco function has been set to “OFF”.

  • Page 42: Settings Each Input Source (Option Menu)

    Select the items by pressing the key, OPTION then press the key. Change setting value by pressing the key. Press the OPTION key to exit the option menu. YSP-4300 YSP-4300 only The ENTER key performs the same function as the key.
  • Page 43 Adjustable range: -12 to +12 (default: 0) See “FM tuning (YSP-4300 only)” (☞p. 44). • See “Connecting a USB device” (☞p. 54). • The REPEAT and SHUFFLE features in the option menu can be used when an iPod is connected to this unit via the USB cable supplied with the iPod (☞p.

  • Page 44: Fm Tuning (Ysp-4300 Only)

    Playback features FM tuning (YSP-4300 only) The FM tuner of this unit provides the following two modes for tuning. Frequency tuning mode You can tune into a desired FM station by searching its frequency. Preset tuning mode Up to 40 stations can be registered and assigned a preset number.

  • Page 45: Receiving Weak Signal

    Playback features Receiving weak signal Registering FM stations and tuning in (Preset tuning) If reception is poor, making listening difficult, it may be improved by switching from stereo to monaural sound. You can register up to 40 FM stations automatically or manually. Press the OPTION key.
  • Page 46 Playback features Registering stations manually You can manually register FM stations. Tune into the desired FM station (☞p. 44). Press the MEMORY key. The preset number to which the selected station will be registered is displayed. Blinks P01< 87.5 ENTER Preset number RETURN Proceed to step 4 to register the selected station with preset...

  • Page 47: Calling A Preset Station

    Playback features Calling a preset station Clearing preset stations You can call preset stations. You can clear registration of the preset stations. Press the FM key. Press the FM key. Press the PRESET / key to select the Press the OPTION key. desired preset number.

  • Page 48: Playing Music Stored On An Ipod Or Computer Over A Wireless Connection

    Playing music stored on an iPod or / / / USB device over a USB connection ENTER (YSP-4300 only) RETURN Connect an iPod or other USB device (☞p. 54) to this unit via the USB jack to play music stored on the iPod or USB device.

  • Page 49: Operating An Ipod Via The Tv Screen

    Playback features Connect the USB cable to the USB jack on Operating an iPod via the TV screen the front of this unit. When an iPod is connected to this unit via the USB cable supplied with the iPod, operation can be controlled via the TV screen.
  • Page 50 Playback features Browse screen [ i P o d ] P l a y l i s t s T o p 2 5 > T o p 1 0 0 > 8 0 ' s s o n g s >...

  • Page 51: Using The Remote Control

    Playback features Displaying information on the current Using the SHUFFLE and REPEAT features song Settings for the SHUFFLE and REPEAT features in the option menu can be specified. The option menu is displayed only in the Information on the current song can be displayed in the front front panel display.

  • Page 52: Using The Ipod To Control Operation

    Playback features Using the iPod to control operation Playback can be controlled directly from the iPod. Press the iPod CONTROL key. The TV screen will go blank, and operations can be controlled directly from the iPod. Press the iPod CONTROL key again to display the browse screen again.

  • Page 53: Charging The Ipod

    Playback features Switching information displayed in the Charging the iPod front panel display iPods can be charged as follows. The input source and surround information is displayed. Connect the iPod to this unit via the USB cable Press the INFO key. supplied with the iPod.

  • Page 54: Connecting A Usb Device

    Playback features Connecting a USB device Audio files (WAV, MP3, WMA, MPEG-4 AAC) stored on the device can be played by connecting the device to this unit. This unit supports sampling frequencies up to 48 kHz with playback of content stored on a USB device. This unit supports USB mass-storage class devices formatted using the FAT16 or FAT32 file system (except USB hard disks).

  • Page 55: Operating A Usb Device Via The Tv Screen

    Playback features Browse screen Operating a USB device via the TV screen Use controls displayed on the TV screen to select and play [ U S B ] content stored on a USB device. T o p See “Displaying the menu screen on the TV” (☞p. 21) for 0 1 S O N G A >...
  • Page 56 Playback features Displaying information on the current song Information on the current song can be displayed in the front panel display. Press the INFO key. Information displayed changes as follows each time the INFO key is pressed. FILE: File name PLAY TIME: Playback time / / / ENTER...
  • Page 57 Playback features Using the remote control Using the REPEAT feature This unit’s remote control can be used to control playback and Use the REPEAT feature in the option menu to specify whether navigate songs stored on the USB device. or not music stored on the USB device repeats with playback. The option menu is displayed only in the front panel display.

  • Page 58: Settings

    SETTINGS Setup menu A variety of settings for this unit can be specified and adjusted from the setup menu. Among the options available are the sound beam output method for optimal surround sound effects, speaker volume control, and HDMI settings. •...

  • Page 59: Setup Menu List

    Setup menu Setup menu list Category Menu Sub menu Features Page BEAM+SOUND Optimizes the beam and sound settings ☞p. 26 OPTIMIZE automatically. BEAM OPTIMIZE ☞p. 26 IntelliBeam Optimizes the beam settings automatically. ONLY SOUND OPTIMIZE ☞p. 26 Optimizes the sound settings automatically. ONLY Front L, Front R, HORIZONTAL...

  • Page 60: Beam Settings

    Setup menu BEAM TRAVEL LENGTH BEAM settings Specify the distance that sound beams travel for each channel. When “AUTO SETUP” in the “IntelliBeam” menu (☞p. 24) is The distance starts at this unit, ends at the listening position, and used, recommended beam settings are automatically applied by includes refraction off a wall.

  • Page 61: Image Location

    Setup menu Adjust the image location for the front Example Front left channel Center channel right channel (RIGHT). With positive focal With negative focal lengths lengths The higher the percentage, the louder the output from the center channel. Control range: 0%* to 95% Right-channel sound is With the front right unnatural...

  • Page 62: Sound Settings

    Setup menu SOUND settings SPEAKER LEVEL BEAM Adjust the volume of each channel to balance output levels. Use test sounds output from each channel to adjust volume for optimal balance. Sub menu: Front L, Front R, Center, Surround L, Surround R, Subwoofer Adjustable range: -20 to +20 Adaptive DRC Adjust this unit’s volume and dynamic range...

  • Page 63: Dynamic Range

    Setup menu DYNAMIC RANGE HDMI setup Adjust this unit’s dynamic range. Use to configure the settings related to HDMI signals and the Selectable items: Max*, Standard, Min/Auto HDMI control function. Max: Outputs sound without adjusting the dynamic range of the input signals.

  • Page 64: Yaired Settings

    Setup menu yAired settings Configure the wireless function utilizing Yamaha’s proprietary yAired technology. iPod INTERLOCK When this function is set to “ON”, this unit turns on when content stored on an iPod connected to the unit via YIT-W12TX begins playing. See “Playing back iPod music” in “Safety and Accessory Information”...

  • Page 65: Display Settings

    Setup menu DISPLAY settings INFORMATION settings Display information for the audio and video signal input to this unit. DIMMER Adjust the brightness of the front panel display. The smaller the AUDIO value, the dimmer the display. When the Eco function is enabled, the specified brightness is The following information on the current audio input signal is applied for only a few seconds.

  • Page 66: Advanced Setup

    Advanced setup The advanced setup enables more precise configuring of this unit’s function. For example, maximum volume can be specified and the INPUT key on the top panel can be disabled. No adjustment is necessary for normal operation. Press the key to turn this unit to the standby mode.
  • Page 67 Advanced setup Menu Description Selectable item/Adjustable range TURN ON VOLUME Sets the volume level at power-on. OFF* (Not set), 1 to 70 MAX VOLUME Sets the maximum volume level. 1 to 99, MAX* (Maximum) INPUT LOCK Enables/disables the INPUT key on the front panel. ON (Disabled), OFF* (Enabled) PANEL LOCK Enables/disables the keys on the front panel.

  • Page 68: Troubleshooting

    If both the TX and RX indicators are Unplug the center unit and subwoofer power cables blinking, a problem has occurred with this and contact your nearest authorized Yamaha dealer – unit's wireless function. or service center.
  • Page 69 Troubleshooting Problem Cause Remedy page Surround sound effects When connecting this unit with playback Refer to the manual supplied with your component component and TV digitally, the output and check the setting. are insubstantial. – setting of the playback component and TV is not valid.

  • Page 70: Fm Tuner (Ysp-4300 Only)

    Troubleshooting FM tuner (YSP-4300 only) Problem Cause Remedy page FM stereo reception is The characteristics of FM stereo broadcasts Check the antenna connections. may cause this problem when the noisy. Try using a high-quality directional FM antenna. – transmitter is too far away or the antenna Switch to monaural mode.

  • Page 71: Messages

    Messages iPod (when connected via USB jack)/USB device (YSP-4300 only) Message Features Remedy page Unknown iPod The iPod being used is not supported by Connect supported iPod to this unit. this unit. Comm.Err The USB device cannot be accessed. Apply standby mode for this unit and reconnect the The iPod cannot be accessed.

  • Page 72: Glossary

    APPENDIX Glossary Channel (ch) The sound image of the system A channel is an audio type that has been divided based on the range and other characteristics. Ex. 7.1 channel • For front speakers, Left (1ch), Right (1ch) • For center speaker (1ch) •...
  • Page 73 Glossary Sampling frequency Digital surround sound system developed by DTS, Inc., which The number of sampling (process for digitalizing analog signals) provides 5.1 channel audio. With an abundance of audio data, it is per second. In principle, the higher the sampling rate, the wider able to provide authentic-sounding effects.

  • Page 74: Specifications

    Specifications YSP-CU4300 YSP-CU3300 Amplifier section Amplifier section • Rated Output Power • Rated Output Power Woofer (100 Hz, 1% THD, 4 Ω)............ 124 W Woofer (100 Hz, 1% THD, 6 Ω)............90 W Tweeter (1 kHz, 1% THD, 4 Ω)............ 37.4 W Tweeter (1 kHz, 1% THD, 4 Ω).............27.2 W •...
  • Page 75 “HDMI,” the “HDMI” logo and “High-Definition Multimedia Interface” are trademarks, or registered trademarks of HDMI Licensing LLC. The “ ” and “yAired” are trademarks of Yamaha Corporation. “x.v.Color” is a trademark of Sony Corporation. The “ ” logo and “IntelliBeam” are trademarks of Yamaha Corporation.

  • Page 76: Available Signal Information

    Specifications Available signal information HDMI signal compatibility Receivable audio signals Audio signal types Audio signal formats Compatible media 2ch Linear PCM 2ch, 32–192 kHz, 16/20/24 bit CD, DVD-Video, DVD-Audio, etc. Multi-ch Linear PCM 8ch, 32–192 kHz, 16/20/24 bit DVD-Audio, Blu-ray disc, HD DVD, etc. Bitstream (SD Audio) Dolby Digital, Dolby Digital Surround EX, DVD-Video, etc.

  • Page 77: Index

    Index Digital Sound Projector..........72 Numerics DISTANCE UNIT ............65 Dolby Digital............38, 72 2ch.................. 38 Dolby Digital Plus............ 38, 72 3BEAM (3 Beam)............37 Dolby PLIIx PARAMETER .......... 63 5.1ch................. 37, 38 Dolby Pro Logic II ............38 5BEAM (5 Beam)............37 Dolby Pro Logic IIx ............
  • Page 78 Index INTELLIBEAM MIC jack ..........6 IntelliBeam microphone ..........23 iPod CONTROL key ............. 52 Sampling frequency ........34, 54, 65, 73 iPod INTERLOCK ............64 Sampling rate ..............33 iPod playback (USB connection) ........48 Satellite/cable TV tuner ..........19 iPod playback (wireless connection) ......
  • Page 79 Index Weak signal ..............45 Wireless connection..........20, 21 Wireless module .............. 5 WMA ................33 x.v.Color ................ 73 yAired ..............21, 64...
  • Page 80 YE830B0/EN1...
  • Page 81 Wireless Subwoofer Owner’s Manual...

  • Page 82: Important Safety Instructions

    – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.
  • Page 83 FCC requirements. found to be the source of interference, which can be determined Modifications not expressly approved by Yamaha may void by turning the unit “OFF” and “ON”, please try to eliminate the your authority, granted by the FCC, to use the product.
  • Page 84 IMPORTANT SAFETY INSTRUCTIONS Caution: Read this before operating this unit. • To assure the finest performance, please read this manual • If you hear distortion (i.e., unnatural, intermittent “rapping” or carefully. Keep it in a safe place for future reference. “hammering”...
  • Page 85 Features of the Wireless Subwoofer NS-WSW160 The NS-WSW160 is a wireless subwoofer that supports Yamaha’s proprietary yAired technology. It receives wireless signals from a yAired-enabled Yamaha device to output audio content from that device. Check our website for devices compatible with this unit.

  • Page 86: Positioning The Subwoofer On Its Side

    The subwoofer can be laid on its side when positioned on a rack. Turn counterclockwise To connect the subwoofer to other yAired-enabled Yamaha devices wirelessly, the same group ID must be assigned to all the Removing the legs devices. The default group ID of the subwoofer is A1.
  • Page 87 If this product doesn’t work as expected, look for a possible cause below. If the issue you are experiencing is not listed, or you cannot resolve it after reading through these instructions, disconnect the power cable and contact an authorized Yamaha dealer or service center.
  • Page 88 Printed in Indonesia ZD86490...
  • Page 89 ■ Connecting the FM antenna (YSP-4300 only) Installation Connection Settings Playback yTips Connect the supplied FM antenna via the FM ANTENNA jack. UCABGLVFH Connection Audio return channel (ARC) supported TV • Connect an HDMI cable to the audio return channel supported jack (the jack with “ARC” indicated) on TV. In this case, you do not need to connect an optical cable.
  • Page 90 Quick Reference Guide), switch the TV’s input to “HDMI1”. to save set-up in the memory. ■ Playing music stored on an iPod or USB device over a USB connection (YSP-4300 only) yTip You can select the language for the menu display.
  • Page 91 – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.
  • Page 92 FCC requirements. found to be the source of interference, which can be determined Modifications not expressly approved by Yamaha may void your by turning the unit “OFF” and “ON”, please try to eliminate the authority, granted by the FCC, to use the product.
  • Page 93 – the operation range of the remote control narrows fire, damage to this unit, and/or personal injury. Yamaha will not – the transmit indicator does not flash or is dim be held responsible for any damage resulting from use of this unit •...

  • Page 94: Supplied Accessories

    Quick Reference Guide Safety and Accessory Information (this booklet) ■ Optional component Yamaha Wireless Transmitter for iPod (YIT-W12) The YIT-W12TX uses Yamaha’s “yAired” technology to establish a wireless connection with another “yAired”-compatible Yamaha device. This enables Wireless transmitter USB cable...

This manual is also suitable for:

Ysp-3300Ysp-cu4300Ns-wsw160Ysp-cu3300

Table of Contents
