Page 1

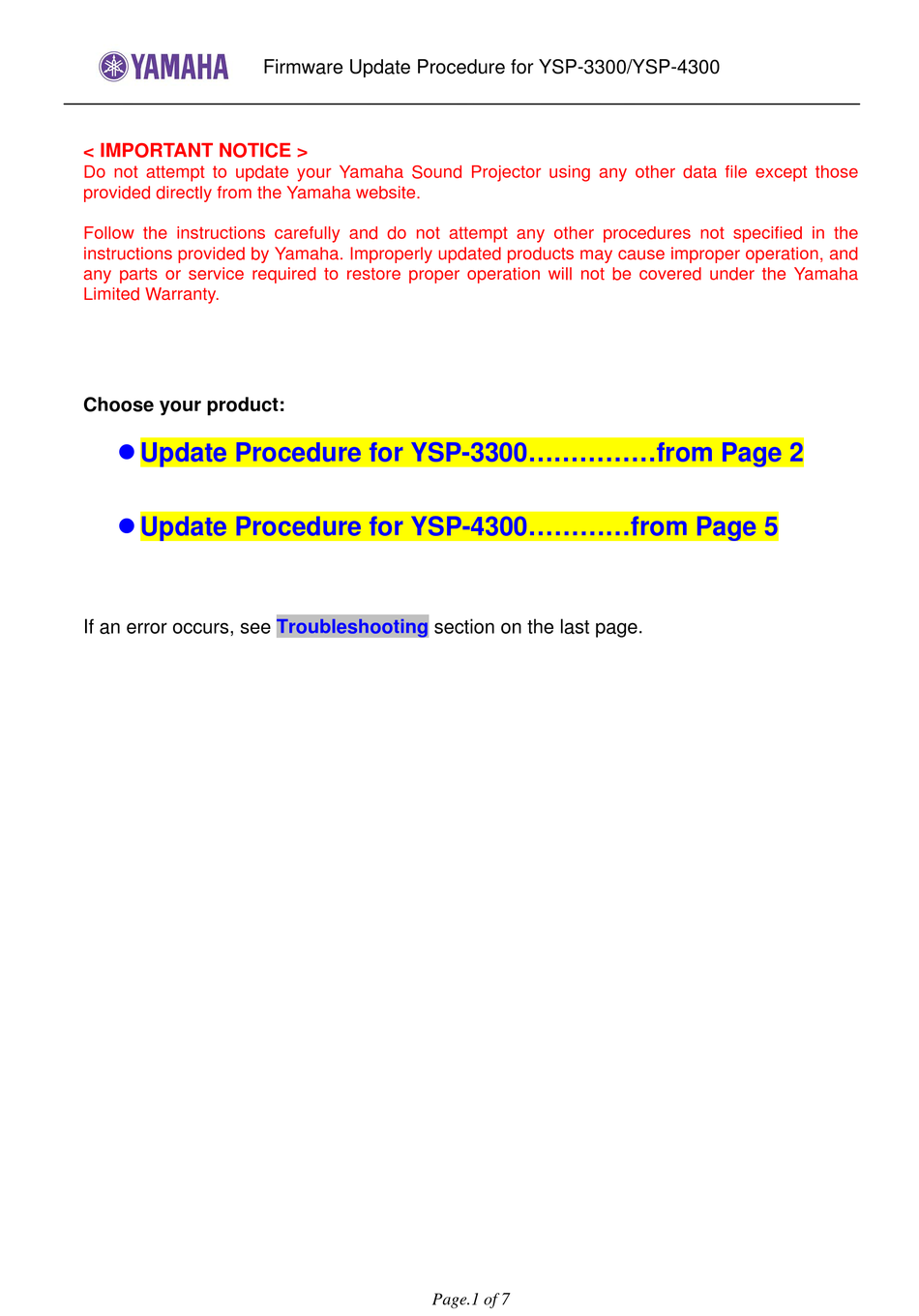

Firmware Update Procedure for YSP-3300/YSP-4300 < IMPORTANT NOTICE > Do not attempt to update your Yamaha Sound Projector using any other data file except those provided directly from the Yamaha website. Follow the instructions carefully and do not attempt any other procedures not specified in the instructions provided by Yamaha.
Page 2
(*XX.XX may have several variations) If you are not able to perform the update, please make arrangements to deliver the unit to an Authorized Yamaha Service Center and they will perform the update. The following pages contain the procedures for this firmware update.
Firmware Update Procedure for YSP-3300/YSP-4300 STEP2 CONNECT DIGITAL AUDIO WITH BD/DVD/CD PLAYER Power off the YSP and BD/DVD/CD player. Then, connect the CD, DVD or BD player* to your YSP using either optical or coaxial digital cable. YSP (Rear Side)
Page 4
Firmware Update Procedure for YSP-3300/YSP-4300 Note: Executing this update will RESET the YSP’s setting, including the AUTO SETUP (IntelliBeam) to factory default. STEP5 START FIRMWARE UPDATE Power on the BD/DVD/CD player. Load and play the Firmware Update CD (Audio CD) on the BD/DVD/CD player. “Found Head” will appear on the YSP’s front display for few seconds.
Page 5
(*XX.XX may have several variations) If you are not able to perform the update, please make arrangements to deliver the unit to an Authorized Yamaha Service Center and they will perform the update. The following pages contain the procedures for this firmware update.
Page 6
Firmware Update Procedure for YSP-3300/YSP-4300 STEP3 ENTER FIRMWARE UPDATE MODE Confirm that the power of YSP is off. Press and hold the [INPUT] key on the YSP and while holding that key, power on. “ADVANCED SETUP” will appear on the front display. Then, press [UP]/[DOWN] key to display “FW UPDATE”.
PL1. Unplug the AC cable from the wall outlet. PL2. Press and hold [VOLUME +] key. While holding the [VOLUME +] key, plug the AC cable to the wall outlet. “PLAY CDDA!” (YSP-3300)/”USB Update” (YSP-4300) will appear on the front display.
