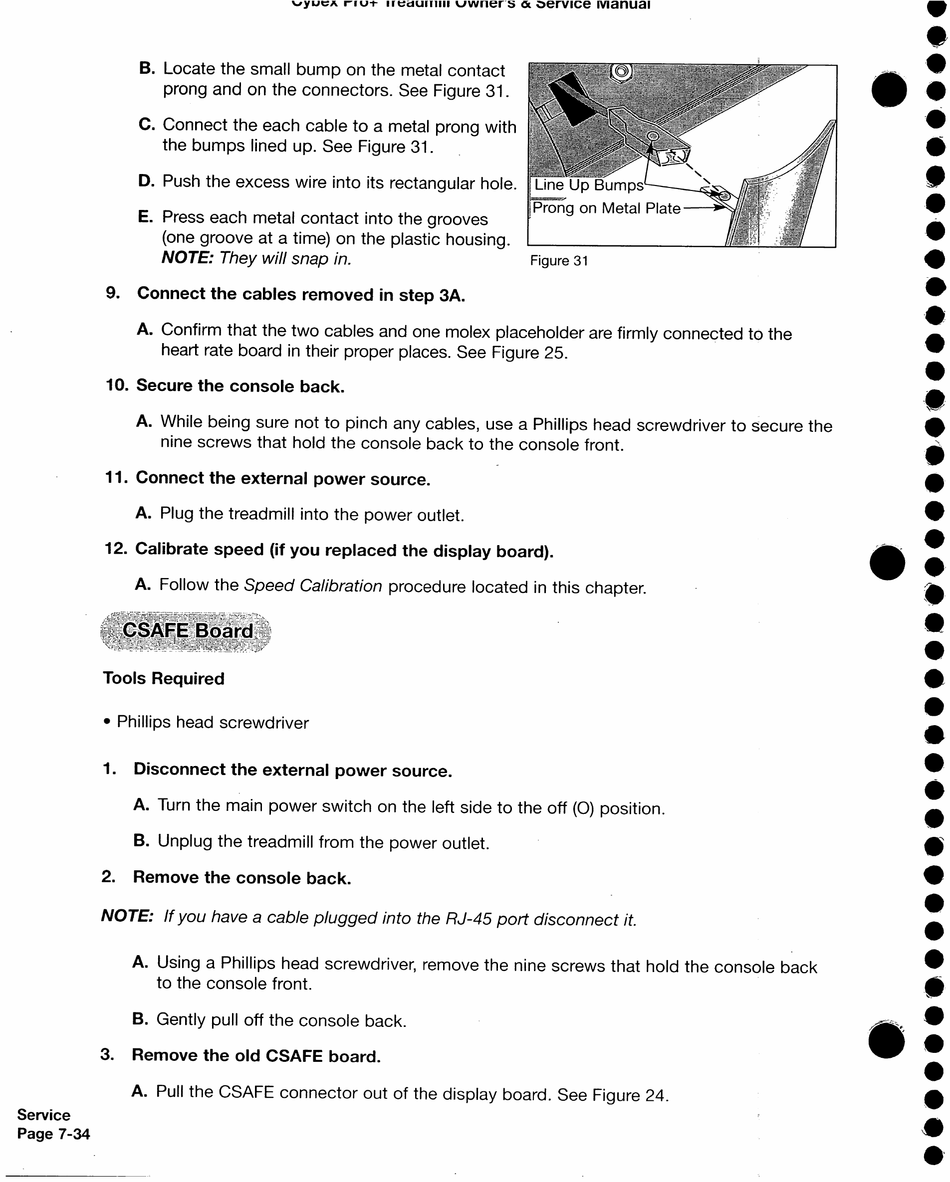

B. Locate the small bump on the metal contact
prong and on the connectors. See Figure 31.
C.
Connect the each cable to a metal prong with
the bumps lined up. See Figure 31.
D. Push the excess wire into its rectangular hole.
E. Press each metal contact into the grooves
(one groove at a time) on the plastic housing.
NOTE: They will snap in.
Figure 31
9. Connect the cables removed in step 3A.
A. Confirm that the two cables and one molex placeholder are firmly conneGted to the
heart rate board in their proper places. See Figure 25.
10. Secure the console back.
A. While being sure not to pinch any cables, use a Phillips head screwdriver to Secure the
nine screws that hold the console back to the console front.
11. Connect the external power source.
A. Plug the treadmill into the power outlet.
12. Calibrate speed (if you replaced the display board).
A. Follow the Speed Calibration procedure located in this chapter.
Tools Required
• Phillips head screwdriver
1. Disconnect the external power source.
A. Turn the main power switch on the left side to the off (0) position.
B. Unplug the treadmill from the power outlet.
2. Remove the console back.
NOTE: If you have
a
cable plugged into the RJ-45 port disconnect it.
A. Using a Phillips head screwdriver, remove the nine screws that hold the console back
to the console front.
B. Gently pull off the console back.
3. Remove the old CSAFE board.
A. Pull the CSAFE connector out of the display board. See Figure 24.
•
•
•
•
' .
•
' . .'
•
' .
- .
• •
' .
• •
..'
• •
.'
• •
.
..
.
'
• •
• •
• •
• •
• •
• •
•
••
\:.
• •
• •
•
••
