Drive Belt - CYBEX Pro+ Owner's Service Manual

Cybex Pro+
Trea~mill
Owner's & Service Manual
Service
Page 7-13

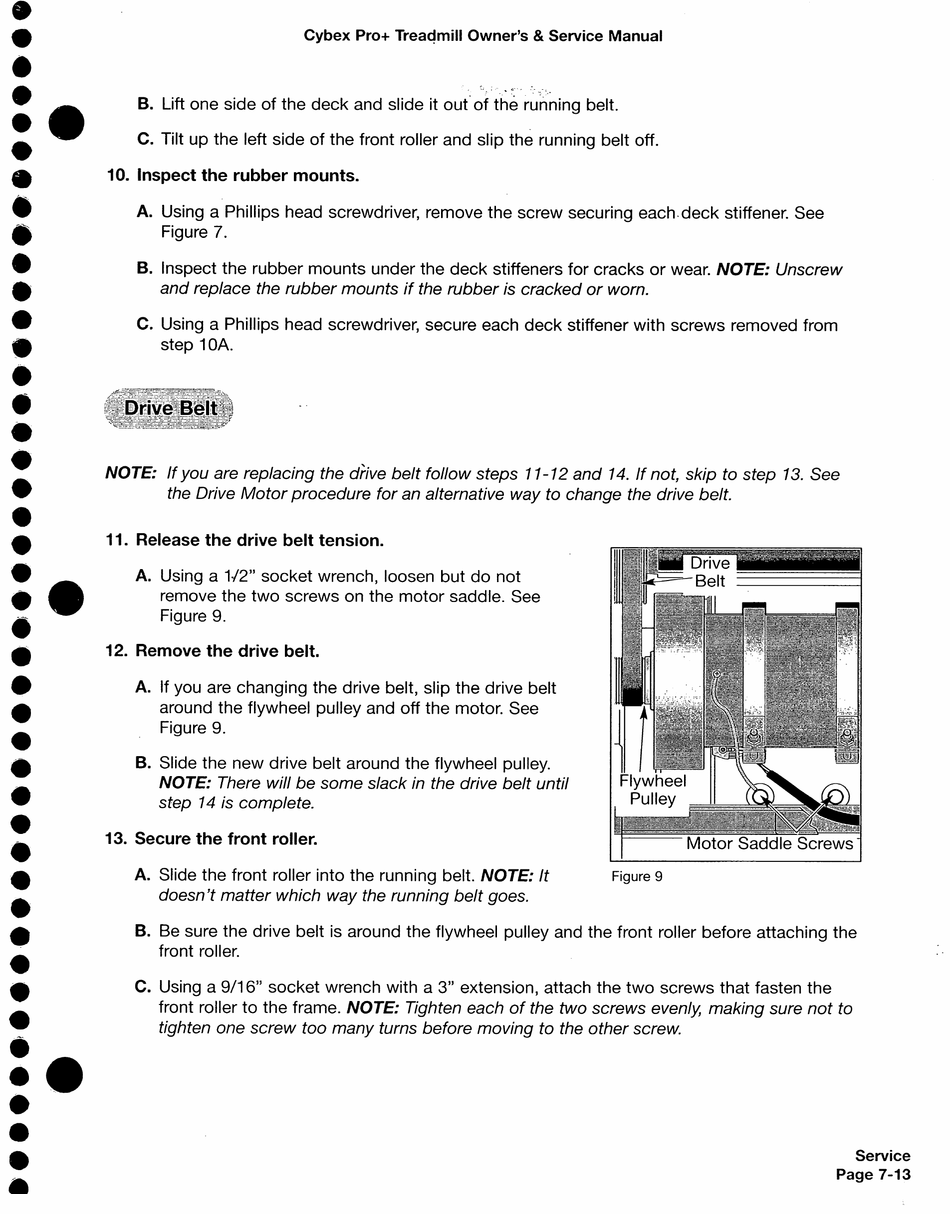

Figure 9
A. Slide the front roller into the running belt. NOTE: It
doesn't matter which way the running belt goes.
B. Be sure the drive belt is around the flywheel pulley and the front roller before attaching the
front roller.
B. Inspect the rubber mounts under the deck stiffeners for cracks or wear. NOTE: Unscrew
and replace the rubber mounts if the rubber is cracked or worn.
C. Using a Phillips head screwdriver, secure each deck stiffener with screws removed from
step 10A.
A. If you are changing the drive belt, slip the drive belt
around the flywheel pulley and off the motor. See
Figure 9.
B. Slide the new drive belt around the flywheel pulley.
NOTE: There will be some slack in the drive belt until
step 14 is complete.
C. Using a 9/16" socket wrench with a 3" extension, attach the two screws that fasten the
front roller to the frame. NOTE: Tighten each of the two screws evenly, making sure not to
tighten one screw too many turns before moving to the other screw.
A. Using a Phillips head screwdriver, remove the screw securing each.deck stiffener. See
Figure 7.
'"
G~' ~
': - .:.••
B. Lift one side of the deck and slide it out" of the running belt.
C. Tilt up the left side of the front roller and slip the running belt off.
10. Inspect the rubber mounts.
11. Release the drive belt tension.
A. Using a 1/2" socket wrench, loosen but do not
remove the two screws on the motor saddle. See
Figure 9.
12. Remove the drive belt.
NOTE: If you are replacing the drive belt follow steps 11-12 and 14. If not, skip to step 13. See
the Drive Motor procedure for an alternative way to change the drive belt.
13. Secure the front roller.
•
•
•
•
•
•
•
•
•
•
•
•
• •
• •
• •
•
• •
•
•
•
•
•
•
• •
•
•
• •
•
• •
•
•
•
•
•
•
• •
•
