Promise Technology FastTrak TX4310 User Manual page 78

FastTrak TX4310 User Manual

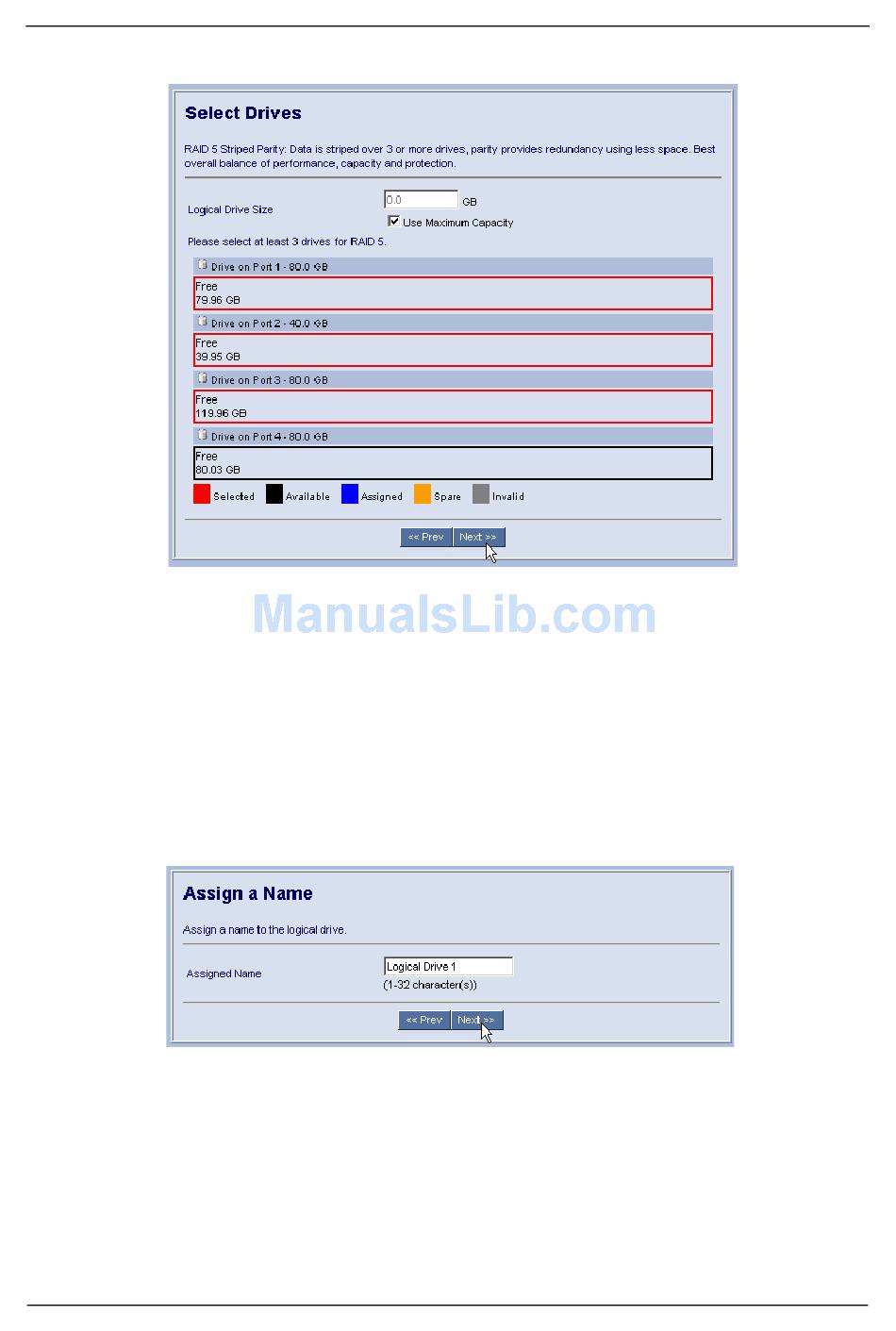

7. If you want to create a logical drive with unused capacity, enter the assigned
(used) capacity in the Logical Drive Size field.
To use the maximum capacity, check the Use Maximum Capacity box.
8. Click on the disk drives to select them.
Available drives have a black frame. Selected drives have a red frame.
9. Click the Next button.
If you selected JBOD, click the Finish button on the Select Drives screen.
This completes the creation process for JBOD.
10. Enter a name for the logical drive in the field provided.
11. Click the Next button.
70
