2. Attach one Serial ATA data cable to each disk drive. Then attach the other
ends of the cables to the connectors on the FastTrak card (above).
3. Attach the Y-cable power splitters to each of the disk drives.

Create Your Logical Drive

You will now use the onboard FastBuild BIOS utility to create a logical drive with
the attached drives.
For an explanation of the logical drive concepts, see Chapter 5
Use of removable disk drive enclosures other than Promise
Technology's SuperSwap is not supported and may result in
performance loss or other undesired results.

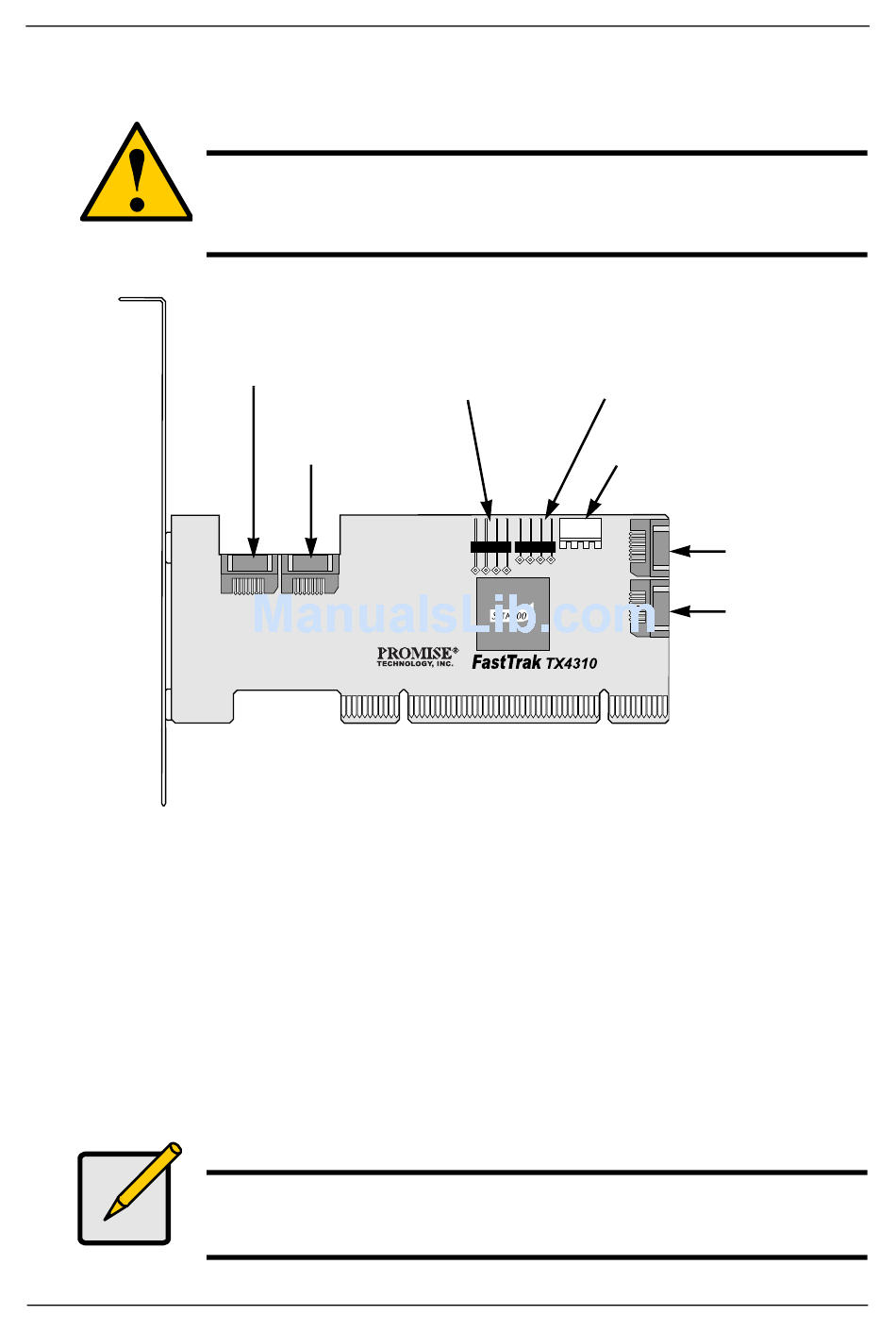

Port 1 /
Channel 1
Port 2 /
Channel 2
You can omit this step and create your logical drive using the
WebPAM software.
Caution
Individual LED Aggregate LED
Connectors Connectors
Note
10
Management
Connector
Port 3 /
Channel 3
Port 4 /
Channel 4
