3.

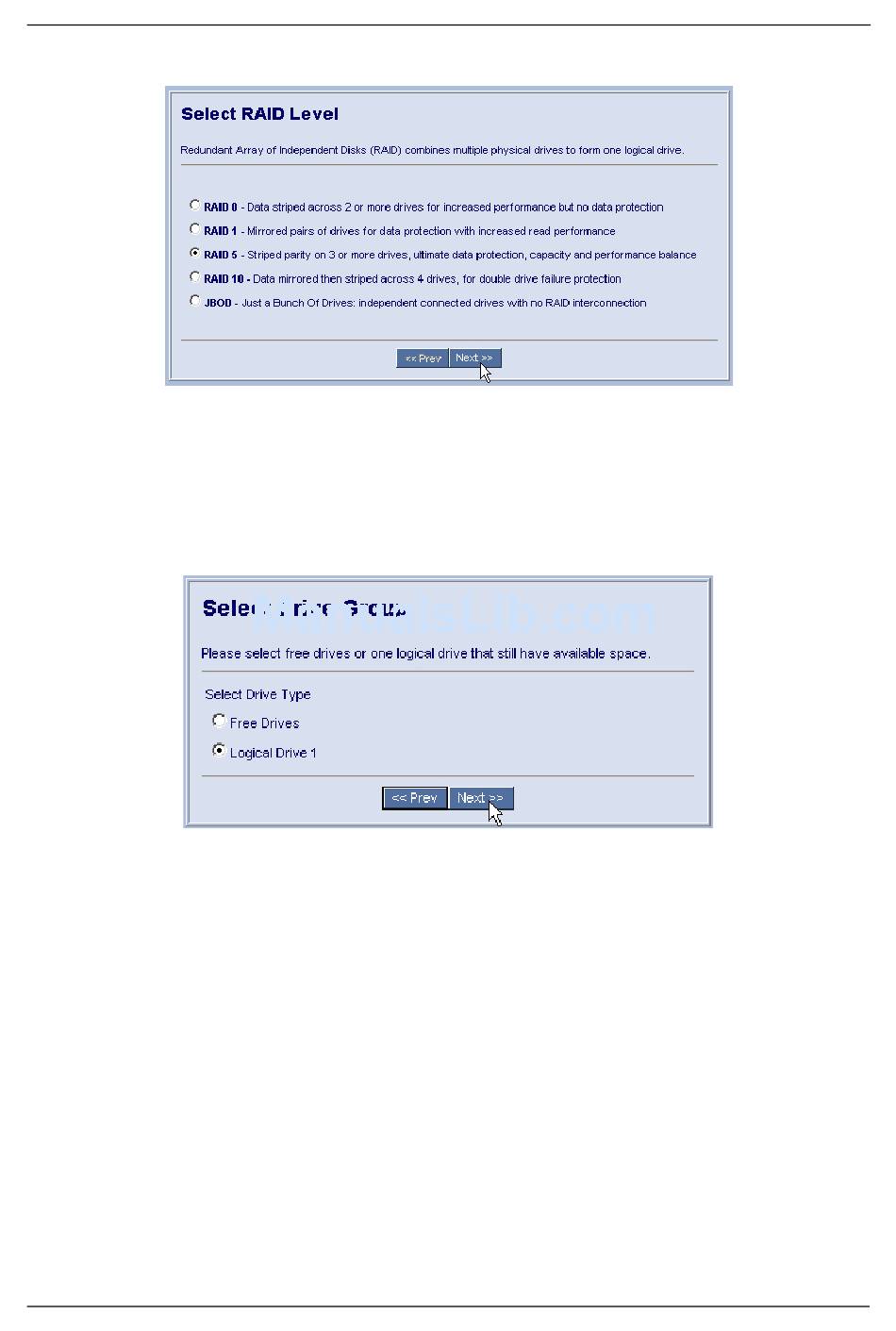

Select the radio button beside the RAID level you want for your logical drive.
WebPAM displays the RAID levels you can use with the available disk
drives. You can also select JBOD on this screen.
See "Choosing a RAID Level" on page 101 for information about the
advantages and requirements of the available RAID levels and JBOD.
4.
In the Select Drive Group
5.
screen, click on the radio button for one of the following:
•
Free Drives – Select all Free (unassigned) disk drives
•
Logical Drive – Select the Free portion of disk drives whose other
portion is assigned to a Logical Drive
The available choices depend on the RAID level you selected and the disk
drives available.
6.
Click the Next button.
69
Chapter 5: WebPAM
