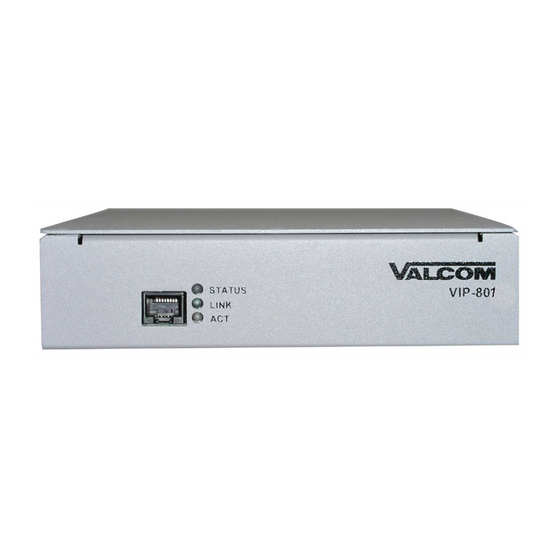

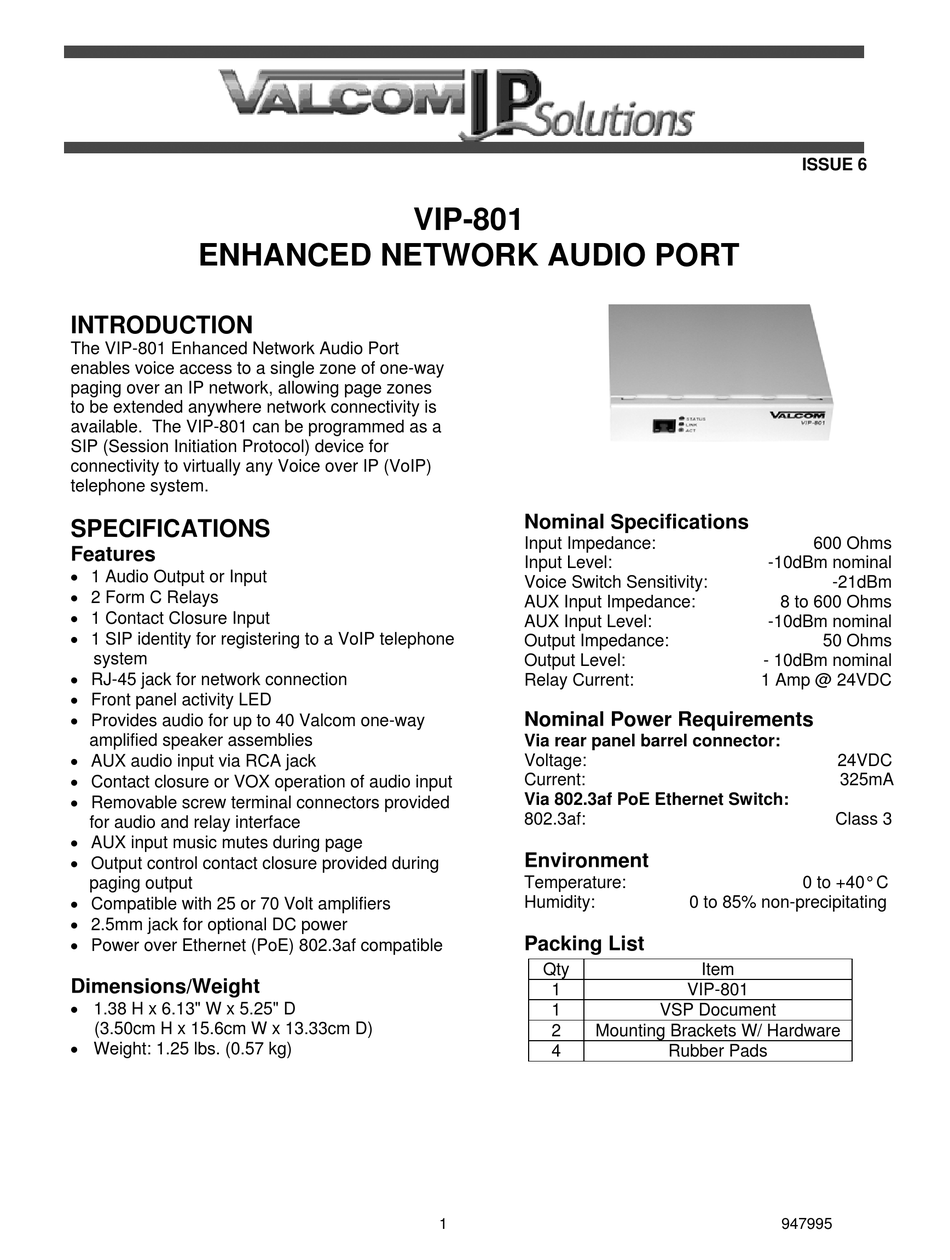

Valcom VIP-801 User Manual

ENHANCED NETWORK AUDIO PORT
INTRODUCTION
The VIP-801 Enhanced Network Audio Port
enables voice access to a single zone of one-way
paging over an IP network, allowing page zones
to be extended anywhere network connectivity is
available. The VIP-801 can be programmed as a
SIP (Session Initiation Protocol) device for
connectivity to virtually any Voice over IP (VoIP)
telephone system.

SPECIFICATIONS

Features
 1 Audio Output or Input
 2 Form C Relays
 1 Contact Closure Input
 1 SIP identity for registering to a VoIP telephone
system
 RJ-45 jack for network connection
 Front panel activity LED
 Provides audio for up to 40 Valcom one-way
amplified speaker assemblies
 AUX audio input via RCA jack
 Contact closure or VOX operation of audio input
 Removable screw terminal connectors provided
for audio and relay interface
 AUX input music mutes during page
 Output control contact closure provided during
paging output
 Compatible with 25 or 70 Volt amplifiers
 2.5mm jack for optional DC power
 Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
 1.38 H x 6.13" W x 5.25" D
(3.50cm H x 15.6cm W x 13.33cm D)
 Weight: 1.25 lbs. (0.57 kg)
VIP-801
Nominal Specifications
Input Impedance:
Input Level:
Voice Switch Sensitivity:
AUX Input Impedance:
AUX Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity:
Packing List
Qty
1
1
2
4
1
-10dBm nominal
-10dBm nominal
- 10dBm nominal
1 Amp @ 24VDC
0 to 85% non-precipitating
Item
VIP-801
VSP Document
Mounting Brackets W/ Hardware
Rubber Pads
ISSUE 6
600 Ohms
-21dBm
8 to 600 Ohms
50 Ohms
24VDC
325mA
Class 3
0 to +40° C
947995
