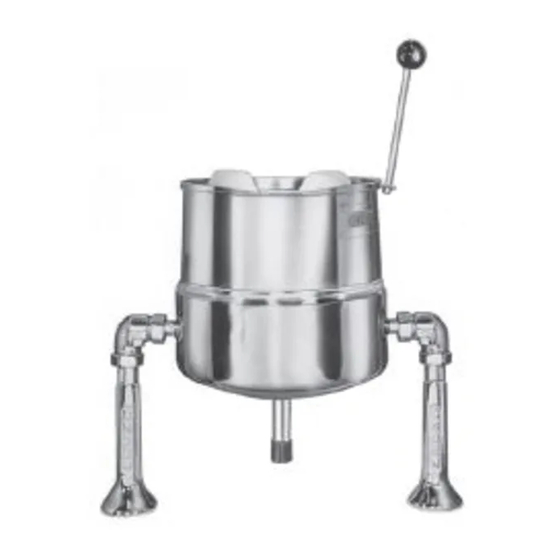

Domestic steam jacketed kettle
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
This manual provides information for:
TD/3 & TDA/1
STEAM JACKETED KETTLE
· Stainless Steel
· Direct Steam Heated
· Table Top Mounted
· Tilting
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon receipt of
same and to determine the possibility of any damage, including concealed dam-
age. Unified Brands suggests that if you are suspicious of damage to make a
notation on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
PART NUMBER 121006, REV. C (2/06)
Domestic
1055 Mendell Davis Drive
Jackson, MS 39272
888-994-7636, fax 888-864-7636
unifiedbrands.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD/3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Groen TD/3

Summary of Contents for Groen TD/3

  • Page 1 OPERATOR MANUAL IMPORTANT INFORMATION, KEEP FOR OPERATOR This manual provides information for: TD/3 & TDA/1 Domestic STEAM JACKETED KETTLE · Stainless Steel · Direct Steam Heated · Table Top Mounted · Tilting THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.

  • Page 2: Important Operator Warnings

    IMPORTANT - READ FIRST - IMPORTANT CAUTION: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS, CAUTIONS, AND SAFETY INSTRUCTIONS CONTAINED IN THIS MANUAL. WARNING: THIS UNIT IS INTENDED FOR USE IN THE COMMERCIAL HEATING, COOKING AND HOLDING OF WATER AND FOOD PRODUCTS, PER THE INSTRUCTIONS CONTAINED IN THIS MANUAL.
  • Page 3 THE WARNINGS AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED. CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE OPERATOR INJURY AND DAMAGE TO THE EQUIPMENT, AND WILL VOID ALL WARRANTIES.

  • Page 4: Table Of Contents

    Table of Contents Important Operator Warnings ............page 2 References..................page 4 Equipment Description..............page 5 Inspection and Unpacking ............page 6 Installation..................page 7 Initial Start-up.................page 8 Operation..................page 8 Cleaning..................page 12 Maintenance................. page 13 Sequence Of Operation..............page 13 Troubleshooting................

  • Page 5: Equipment Description

    National Board. These kettles operate efficiently at pressures above five PSI. A safety valve, strainer, steam trap, and check valve are all required for installation, and may be ordered from Groen as optional equipment.

  • Page 6: Inspection And Unpacking

    Inspection & Unpacking The kettle will arrive completely assembled and wrapped in protective plastic, CAUTION strapped and bolted on a skid, enclosed in a cardboard crate. Immediately on receipt AVOID NAILS AND SPLINTERS WHEN remove the box and plastic wrap, and inspect the unit for damage. Report any REMOVING KETTLES FROM WOODEN damage or an incorrect shipment to CRATES.

  • Page 7: Installation

    1/4”, if necessary. This should be enough to allow for thread take-up and misalignment. *Accessories available from Groen as options. Piping is to be supplied by the installer. RIGID MOUNTING SURFACE OM-TD...

  • Page 8: Initial Start-Up

    Operate the tilting mechanism to confirm that this feature functions through the whole range of normal operation. If the unit functions as described above, it is ready for use. If the unit does not function as intended, contact your local Groen Certified Service Agency. WEAR EYE PROTECTION...
  • Page 9 Operation To heat the kettle, open the steam inlet valve. Adjusting the valve allows you to WARNING control the heating rate. Opening the valve more allows steam to flow into the jacket AVOID EXPOSURE TO ESCAPING STEAM, faster, and heats the product faster. WHICH CAN CAUSE SEVERE BURNS.

  • Page 10: Operation

    Operation ACCESSORIES Cover As with stock pot cooking, an optional lift-off cover can speed up the heating of water and food products. A cover helps retain heat in the cooking vessel and CAUTION reduces the amount of heat and humidity released into the kitchen. Use of a DO NOT TILT KETTLE BODY WITH COVER cover can reduce some product cook times and help maintain the temperature, IN PLACE.
  • Page 11 Operation ACCESSORIES Continued... Basket Insert An optional kettle basket insert (10 Quart and larger) can assist in cooking wa- ter boiled products, including eggs, potatoes, vegetables, shell fish, pasta and WARNING rice. The nylon mesh liner must be used when cooking product smaller than the AVOID ALL DIRECT CONTACT WITH HOT mesh size of the basket, which is approximately 1/4”...

  • Page 12: Cleaning

    If there is difficulty removing mineral deposits or a film left by hard water or food residues, clean the kettle thoroughly and use a deliming agent, such as Groen Delimer/Descaler (Part Number 114800) or Lime-Away® from Ecolab, in accordance with the manufacturer’s directions. Rinse and drain the unit thoroughly before further use.

  • Page 13: Maintenance

    A Maintenance and Service Log is provided at the back of this manual. Each time USE OF ANY REPLACEMENT PARTS OTHER maintenance is performed on your Groen kettle, enter the date on which the work was THAN THOSE SUPPLIED BY GROEN OR AN done, what was done, and who did it.

  • Page 14: Troubleshooting

    For the phone number of the nearest agency, call your area Groen representative or AUTHORIZED SUPPLIER/DISTRIBUTOR the Groen Parts and Service Department. If an item on the list is followed by X, the WILL VOID ALL WARRANTIES AND COULD work should be done by a qualified service representative.

  • Page 15: Parts Lists

    Parts List Model TDC/3 Parts List Model TDC/3 Description Part No. Pedestal Assembly 081572 Pedestal Cap 081574 Nut, Hex Jam 1-3/4” OD 081707 Packing Ring Set 002033 Washer Packing 002019 Spring 002025 Washer 5/8” Neoprene 003242 Tip, Crutch 1” ID 002032 Handle Assembly 012694...

  • Page 16: Parts List

    Parts List Model TDA Parts List Model TDA Description Part No. Knob 001385 Handle & Bushing Assy. 001022 Spring 001067 Handle Guide Nut 001025 Plunger Guide 001046 Elbow Assembly (incl. item 5) 001083 see 6a Elbow Assembly- 1,4,6 Qt pre 001043 1957 O-Ring...
  • Page 17 Diagram - Trunnion Packings for Model TDC/3 OM-TD OM-TD NOTE: THESE 5 RINGS COMPRISE ONE SET OF PACKING & MUST BE ASSEMBLED IN Diagram THE MANNER SHOWN. PART NO 2033 Trunnion Packings MODEL TDC/3 FEMALE PACKING RING ADAPTER MALE PACKING RING ADAPTER Pedestal Cap 081754 PEDESTAL CAP 081754 SPRING PART NO.

  • Page 18: Maintenance Log

    Service Log Model No: Purchased From: Serial No: Location: Date Purchased: Date Installed: Purchase Order No: For Service Call: Date Maintenance Performed Performed By OM-TD...

  • Page 19: Warranty

    Equipment to be free from defects in material and workmanship for (12) twelve months with the following conditions and subject to the following limitations. This parts and labor warranty is limited to Groen Equipment sold to the original commercial purchaser/users (but not original equipment manufacturers), at its original place of installation in the continental United States, Hawaii and Canada.
  • Page 20 1055 Mendell Davis Drive • Jackson MS 39272 888-994-7636 • 601-372-3903 • Fax 888-864-7636 groen.com PART NUMBER 121006, REV. C (2/06) OM-TD...
