IMPORTANT INFORMATION ? KEEP FOR OPERATOR ? IMPORTANT INFORMATION
OPERATOR AND SERVICE MANUAL
Part Number 121062
MODEL:
Self-Contained
Electrically heated
Table top mounted
Tilting
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE.
TDB/7

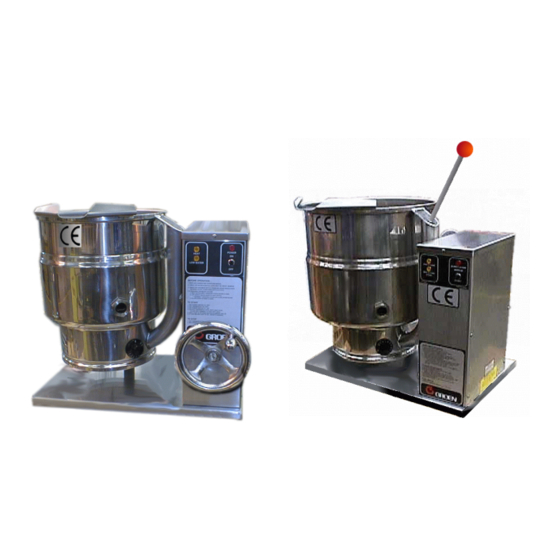

Steam Jacketed Kettle
FOR YOUR SAFETY
Information contained in this document is
known to be current and accurate at the time
of printing/creation. Unified Brands recom-
mends referencing our product line websites,
unifiedbrands.net, for the most updated
product information and specifications.
OM/SM-TDB/7
NORTH AMERICA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Groen TDB/7
Summary of Contents for Groen TDB/7
- Page 1 IMPORTANT INFORMATION ? KEEP FOR OPERATOR ? IMPORTANT INFORMATION OPERATOR AND SERVICE MANUAL OM/SM-TDB/7 Part Number 121062 NORTH AMERICA MODEL: TDB/7 Steam Jacketed Kettle Self-Contained Electrically heated Table top mounted Tilting THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
-
Page 2: Important Operator Warnings
OM/SM-TDB/7 IMPORTANT — READ FIRST — IMPORTANT CAUTION: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS, CAUTIONS, AND SAFETY INSTRUCTIONS CONTAINED IN THIS MANUAL. WARNING: THIS UNIT IS INTENDED FOR USE IN THE COMMERCIAL HEATING, COOKING AND HOLDING OF WATER AND FOOD PRODUCTS, PER THE INSTRUCTIONS CONTAINED IN THIS MANUAL. - Page 3 THE WARNINGS AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED. CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE OPERATOR INJURY AND DAMAGE TO THE EQUIPMENT, AND WILL VOID ALL WARRANTIES.
-
Page 4: Table Of Contents
OM/SM-TDB/7 Table of Contents IMPORTANT OPERATOR WARNINGS ..........2 EQUIPMENT DESCRIPTION . -
Page 5: Equipment Description
“Airless” operation of the steam and appropriate controls, mounted on a sturdy jacket permits uniform, efficient heating at base. The Model TDB/7 is available in 20 or 40 - temperatures as low as 150°F and as high as quart capacity. - Page 6 OM/SM-TDB/7 Current Models Optional equipment available with any model: 1. Stand that supports the unit and holds a pan in position for filling 2. Lift-off cover 3. Basket insert 4. Fill faucet 5. Manual stirrers 6. Motor driven agitator...
-
Page 7: Inspection & Unpacking
Attach the tilt handle (normally shipped inside the kettle) by carefully threading it into the socket on the trunnion support. Be careful to avoid cross-threading fine socket threads. The TDB/7 is shipped from the factory strapped on a pallet. The tilt handle is inside the kettle. -
Page 8: Installation
Observe local codes 7. Any mechanical or electrical change and/or The National Electrical Code in must be approved by the Groen Food accordance with ANSI/NFPA 70 - (current Service Engineering Department. edition). -
Page 9: Initial Start-Up
“OFF”. boils. If the unit functions as described above, it is ready for use. If the unit does not function as intended, contact your local Groen Certified Service Agency. A simple turn of the thermostat controls the Groen TBD/7 Kettle... -
Page 10: Operation
B O I L I N G P R O D U C T A N D S A F E TRANSFER. On most TDB/7 units the jacket water level is shown in a sight glass, right on the kettle. - Page 11 OM/SM-TDB/7 When putting the cover on the kettle, position it on top of kettle rim, with its flat edge facing the pouring lip. WARNING WHEN TILTING KETTLE FOR PRODUCT TRANSFER: WEAR PROTECTIVE OVEN MITT AND WARNING PROTECTIVE APRON. 2) USE DEEP CONTAINER TO CONTAIN AVOID ALL DIRECT CONTACT WITH HOT AND MINIMIZE PRODUCT SPLASHING.
-
Page 12: Sequence Of Operation
OM/SM-TDB/7 CAUTION DO NOT TILT KETTLE BODY WITH COVER IN PLACE. COVER MAY SLIDE OFF, CAUSING INJURY TO OPERATOR. WARNING 2. Basket Insert AVOID ALL DIRECT CONTACT WITH HOT An optional kettle basket insert can assist in SURFACES. DIRECT... -
Page 13: Maintenance
OM/SM-TDB/7 Maintenance NOTICE: Contact Groen or an authorized Groen representative when repairs are required. If the lever does not activate, or there is no 1. Periodic Maintenance evidence of discharge, or the valve leaks, A Maintenance & Service Log is provided at... - Page 14 TDB/7-40 40 quarts 5 quarts your authorized Groen Parts Dealer).: a. If you are replacing water lost as steam, 5. Component Replacement use distilled water. If you are replacing treated water that ran out of the jacket, prepare more treated water as directed in step 4, “Water Treatment Procedure”.
- Page 15 OM/SM-TDB/7...
-
Page 16: Cleaning
OM/SM-TDB/7 Cleaning 1. Suggested Tools: b. Scrape and flush out food residues. Be careful not to scratch the kettle with a. Cleaner, such as Klenzade HC-10 or metal implements. HC-32 from ECOLAB, Inc. c. Prepare a hot solution of the detergent/ b. - Page 17 Groen Delimer/Descaler (Part Number 114800) or Lime-Away from g. The outside of the unit may be polished Ecolab, in accordance with the with a stainless steel cleaner such as manufacturer’s directions.
-
Page 18: Troubleshooting
OM/SM-TDB/7 Troubleshooting Your Groen kettle is designed to operate smoothly and efficiently if properly maintained. However, the following is a list of checks to make in the event of a problem. Wiring diagrams are furnished inside the service panel. If an item on the list is followed by X, the work should be done by a qualified service representative. - Page 19 OM/SM-TDB/7 Replacement Kettle Body Parts List...
- Page 20 OM/SM-TDB/7 Replacement Mechanical Parts List...
- Page 21 OM/SM-TDB/7 Replacement Electrical Parts List...
-
Page 22: Parts Lists
OM/SM-TDB/7 Parts List To order parts, contact your Groen Certified Service Agency. Supply the model designation, part description, part number, quantity, and, where applicable, voltage and phase. Description Part No. Description Part No. Pedestal Cover 003137 Insulator Board 003490... -
Page 23: Wiring Diagrams
Wiring Diagrams TDB/7-20, TDB/7-40 208/240 Volt, 1 and 3 Phase... - Page 24 Wiring Diagrams TDB/7-20, TDB/7-40 480 VOLT, 1 & 3 PHASE...
-
Page 25: Service Log
https://appliancetechmanuals.com Service Log Model No. _______________________________ Purchased From _________________________ Serial No. _______________________________ Location ________________________________ Date Purchased __________________________ Date Installed ___________________________ Purchase Order No. ______________________ For Service Call __________________________ Date Service Performed Performed By References KLENZADE SALES CENTER ECOLAB. Inc. NATIONAL SANITATION FOUNDATION 370 Wabasha 3475 Plymouth Rd. -
Page 26: Warranty
Groen Foodservice Equipment ("Groen Equipment") has been skillfully manufactured, carefully inspected and packaged to meet rigid standards of excellence. Groen warrants its Equipment to be free from defects in material and workmanship for (12) twelve months with the following conditions and subject to the following limitations. - Page 27 1055 Mendell David Drive OM/SM-TDB/7 (Revised 01/00) Jackson, MS 39272 Telephone 601 373-3903 Part Number 121062 Fax 601 373-9587...
