Groen TDB-20 Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
2016 Gees Mill Road, Suite 200, Conyers, GA 30013
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED
IN THIS MANUAL.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified Brands
suggests that if you are suspicious of damage to make a notation on the
delivery receipt. It will be the responsibility of the consignee to file a claim
with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION
TILT HANDLE
PRESSURE GAUGE
HEAT INDICATOR LIGHT
TEMP CONTROL KNOB
BULLSEYE SIGHTGLASS
SUPPORT HOUSING
Model TDB

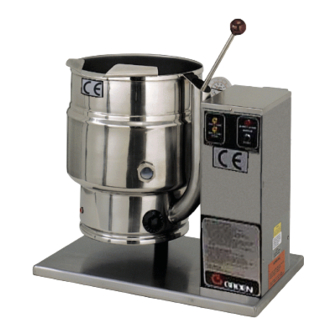

The TDB and TDBC units are table top, tilting, steam jacketed kettle with an elec-
tronically controlled, self-contained, electrically-heated steam supply and appro-
priate controls, mounted on a sturdy base. The kettle is available in20, 24, 40 or
48 quart (18.8, 22.6, 37.6 or 45.3 liters) capacities.
The body of the kettle is constructed of stainless steel, welded into one solid piece.
The kettle is furnished with a reinforced rim and a butterfly shaped pouring lip. It
has a steam jacket rated for working pressures up to 50 psi (345 kPa, 3.45 bar).
Kettle finish is 180 emery grit on the inside and bright semi-deluxe on the outside.
A tilt handle on the TDB and a hand wheel crank on the TDBC kettle allows the op-
erator to manually tilt the kettle body in a controlled manner. Pour height accepts
pans up to 4 " (10 cm) high on a table top.
READ,
PRESSURE GAUGE
HEAT INDICATOR LIGHT
TEMP CONTROL KNOB
BULLSEYE SIGHTGLASS
SUPPORT HOUSING
CRANK TILT HANDWHEEL
Model TDBC
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands recommends
referencing our product line websites, unifiedbrands.net, for the most updated product information and specifications. © 2020 Unified Brands. All
Rights Reserved. Unified Brands is a wholly-owned subsidiary of Dover Corporation.
This manual provides information for:
STEAM JACKETED KETTLE
MODELS TDB(C)-20/24/40/48 (C,A)
(CE) INTERNATIONAL
REFERENCES
NSF INTERNATIONAL
798 N. Dixboro Rd.
P.O. Box 130140
Ann Arbor, Michigan 48113-0140
UNDERWRITERS LABORATORIES, INC.
333 Pfingsten Road
Northbrook, Illinois 60062
A built-in steam generator, sized for the kettle capacity and heated by electric-
ity, delivers steam into the jacket. "Airless" operation of the steam jacket permits
uniform, efficient heating at temperatures as low as 150°F (65.5°C) and as high
as 295°F (146°C). In addition to the electronic temperature control, the unit has a
tilt cut-off switch, low water cut-off, safety valve, and high-limit pressure switch
as safety features. A heating indicator light, pressure gauge, and sight glass are
provided for monitoring kettle operation.
A single electrical connection is required for installation. The unit may be ordered
for use with 230 VAC, 1 Phase, 50 Hz, or 400 VAC, 3 Phase, 50 Hz power.
Options available include:
1. Kit, cover and holder (P/N 128609, 20/24 qt - P/N 139806, 40/48 qt).
2. One-piece, lift-off cover (P/N 128003, 20/24 qt - P/N 128002, 40/48 qt).
3. Holder for Lift-off cover (P/N 133837).
4. Basket insert (P/N 001159, 20/24 qt - P/N 001161, 40/48 qt).
5. Lip Strainer (P/N 005187, 20/24 qt - P/N 005186, 40/48 qt).
6. Stand that supports the unit and holds a pan in position for filling (Model TS/9).
PART NUMBER 177365, REV. C (10/20)
KLENZADE SALES CENTER ECOLAB, Inc.
370 Wabasha
St. Paul, Minnesota 55102
NATIONAL FIRE PROTECTION ASSOCIATION
60 Battery March Park
Quincy, Massachusetts 02269
NFPA/70 - The National Electric Code
ZEP MANUFACTURING COMPANY
1310-T Seaboard Industrial Boulevard
Atlanta, Georgia 30318
