IMPORTANT INFORMATION - KEEP FOR OPERATOR - IMPORTANT INFORMATION
OPERATOR AND SERVICE MANUAL
Part Number 128433
MODEL:
TDB/7 (CE)

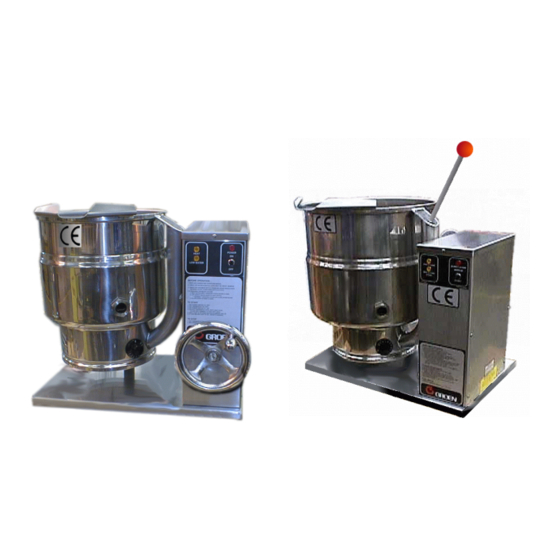

Steam Jacketed Kettle
Self-Contained
Electric heated
Table top mounted
Stainless Steel
Tilting
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND
AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
Crank Tilt Model
FOR YOUR SAFETY
Information contained in this document is
known to be current and accurate at the time
of printing/creation. Unified Brands recom-
mends referencing our product line websites,
unifiedbrands.net, for the most updated
product information and specifications.
OM/SM-TDB/7(CE)
INTERNATIONAL
Pull Tilt Model
-
Advertisement
Table of Contents
Related Manuals for Groen TDB/7
Summary of Contents for Groen TDB/7
- Page 1 IMPORTANT INFORMATION - KEEP FOR OPERATOR - IMPORTANT INFORMATION OPERATOR AND SERVICE MANUAL OM/SM-TDB/7(CE) Part Number 128433 INTERNATIONAL MODEL: TDB/7 (CE) Steam Jacketed Kettle Self-Contained Electric heated Table top mounted Stainless Steel Tilting Crank Tilt Model Pull Tilt Model THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
-
Page 2: Important Operator Warnings
DO NOT USE ANY DE-GREASER THAT CONTAINS POTASSIUM HYDROXIDE OR SODIUM HYDROXIDE OR THAT IS ALKALINE. WARNING: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THEIR AUTHORIZED DISTRIBUTOR VOIDS ALL WARRANTIES AND CAN RESULT IN BODILY INJURY TO THE OPERATOR AND DAMAGE THE EQUIPMENT. - Page 3 OM/SM-TDB/7(CE) WARNING: AVOID ALL DIRECT CONTACT WITH HOT EQUIPMENT SURFACES. DIRECT SKIN CONTACT COULD RESULT IN SEVERE BURNS. WARNING: AVOID ALL DIRECT CONTACT WITH HOT FOOD OR WATER IN THE KETTLE. DIRECT CONTACT COULD RESULT IN SEVERE BURNS. CAUTION: DO NOT OVER FILL THE KETTLE WHEN COOKING, HOLDING OR CLEANING. KEEP LIQUIDS A MINIMUM OF 2-3”...
-
Page 4: Table Of Contents
OM/SM-TDB/7(CE) Table of Contents IMPORTANT OPERATOR WARNINGS ............2 EQUIPMENT DESCRIPTION . -
Page 5: Equipment Description
The jacket permits uniform, efficient heating at Model TDB/7 is available in 20 or 40 - quart capacity. temperatures as low as 150°F and as high as 295°F. In addition to the adjustable thermostat for operating... - Page 6 OM/SM-TDB/7(CE) Models Pull Tilt TDB/7, CE Model Crank Tilt TDB/7, CE Model Optional equipment available with any model: 1. Stand that supports the unit and holds a pan in position for filling 2. Lift-off cover 3. Basket insert 4. Fill faucet 5.
-
Page 7: Inspection & Unpacking
The TDB/7 is shipped from the factory strapped on a pallet. If the unit is a pull tilt model, the handle is packed inside the kettle for shipment. -
Page 8: Installation
OM/SM-TDB/7(CE) Installation The Groen Kettle is provided with 3. The equipment is shipped ready for three complete internal wiring. It is ready for phase operation. Refer to the wiring diagram immediate connection. A wiring diagram for single phase operation. is provided in this manual and on the inside of the control housing service 4. -
Page 9: Initial Start-Up
If the unit functions as described above, it is ready for use. If the unit does not function as intended, contact your local Groen Certified Service Agency. A simple turn of the thermostat controls the Groen TBD/7 Kettle... -
Page 10: Operation
I N G R E D I E N T S , S T I R R I N G TRANSFERRING PRODUCT ANOTHER CONTAINER. On most TDB/7 units the jacket water level is shown in a sight glass, right on the kettle. - Page 11 OM/SM-TDB/7(CE) When putting the cover on the kettle, position it CAUTION on top of kettle rim, with its flat edge facing the OVERFILL KETTLE WHEN pouring lip. COOKING, HOLDING CLEANING. KEEP LIQUIDS AT LEAST 2-3” (5-8 cm) BELOW THE KETTLE BODY RIM TO ALLOW CLEARANCE FOR STIRRING, BOILING PRODUCT AND SAFE TRANSFER.
-
Page 12: Sequence Of Operation
OM/SM-TDB/7(CE) before moving basket away from the kettle. CAUTION Do not rest kettle basket on kettle rim or DO NOT TILT KETTLE BODY WITH COVER IN pouring lip. If basket is too heavy for PLACE. COVER MAY SLIDE OFF, CAUSING individual to lift and safely move, get help INJURY TO OPERATOR. -
Page 13: Maintenance
OM/SM-TDB/7(CE) Maintenance NOTICE: Contact Groen or an authorized Groen representative when repairs are required. 1. Periodic Maintenance service representative. d. The inside of the support housing should be A Maintenance & Service Log is provided at the kept clean. back of this manual. Each time maintenance is performed on your Groen kettle, enter the date of the work, what was done, and who did it. - Page 14 Air in the jacket slows down the heating of the kettle. a. Obtain water treatment compound and a PH test kit from your authorized Groen parts To remove air: distributor. a. Start the unit. (See the “Operation” section of b.
-
Page 15: Troubleshooting
Items followed by X, should only be done by a qualified service representative. USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR ITS AUTHORIZED DISTRIBUTORS CAN INJURE TO THE OPERATOR AND DAMAGE THE EQUIPMENT AND WILL VOID ALL WARRANTIES. - Page 16 VERY HOT and will cause burns if touched accidentally. IMPORTANT - READ FIRST - IMPORTANT The Groen Steam Jacketed Kettle you have just purchased has been handcrafted from the finest materials, meticulously inspected, and carefully tested to ensure that you receive the best possible product.
- Page 17 Operation 1. Initial Operational Readiness Check 2. To Shut Down Kettle After the TDB/7 Kettle has been installed according a. Turn the thermostat dial to the "Off'' position. to service and installation instructions, perform initial start-up as a test, to ensure that the unit is operating b.
- Page 18 OM/SM-TDB/7(CE) TDB/7 Kettle with Tilt Handle the value corresponding to the dial setting, the thermostat switch opens. This turns off the heating indicator light and causes the contactors to open, The kettle is designed to be tilted in a controlled stopping the power to the heaters.
-
Page 19: Cleaning
OM/SM-TDB/7(CE) Cleaning 1. Suggested Tools: a. Cleaner, such as Klenzade HC-10 or HC-32 from ECOLAB, Inc. b. Kettle brushes in good condition. c. Sanitizer such as Klenzade XY-12. d. Film remover such as Klenzade LC-30. 1. Precautions Before cleaning, shut off the kettle by turning the thermostat dial to “OFF,”... - Page 20 Groen Delimer/Descaler (Part Number 114800) or Lime-Away from Ecolab, in g. The outside of the unit may be polished with a accordance with the manufacturer’s directions.
- Page 21 OM/SM-TDB/7(CE) Parts List - Kettle Body - Pull Tilt Model To order parts, contact your Groen Certified Service Agency. Supply the model designation, part description, part number, quantity, and, where applicable, voltage and phase.
- Page 22 OM/SM-TDB/7(CE) Replacement Parts List Pull Tilt Models...
- Page 23 OM/SM-TDB/7(CE) Replacement Parts List Crank Tilt Models...
-
Page 24: Parts Lists
OM/SM-TDB/7(CE) Parts List To order parts, contact your Groen Certified Service Agency. Supply the model designation, part description, part number, quantity, and, where applicable, voltage and phase. Description Description Base Weldment 122185 x 36 Bullseye sight glass 108554 x Cladding, top, pedestal... -
Page 25: Schematics
OM/SM-TDB/7(CE) Wiring Diagram... -
Page 26: Service Log
OM/SM-TDB/7(CE) Service Log Model No. _______________________________ Purchased From _________________________ Serial No. _______________________________ Location ________________________________ Date Purchased __________________________ Date Installed ___________________________ Purchase Order No. ______________________ For Service Call __________________________ Date Service Performed Performed By References KLENZADE SALES CENTER ECOLAB. Inc. NATIONAL SANITATION FOUNDATION 370 Wabasha 3475 Plymouth Rd. -
Page 27: Warranty
Groen Foodservice Equipment ("Groen Equipment") has been skillfully manufactured, carefully inspected and packaged to meet rigid standards of excellence. Groen warrants its Equipment to be free from defects in material and workmanship for twelve months from date of installation or eighteen months from date of shipment with the following conditions and subject to the following limitations. - Page 28 OM/SM-TDB/7(CE) 1055 Mendell Davis Drive Jackson, MS 39272 Part Number 128433 Telephone 601 373-3903 Revised 7/99 Fax 601 373-9587...
