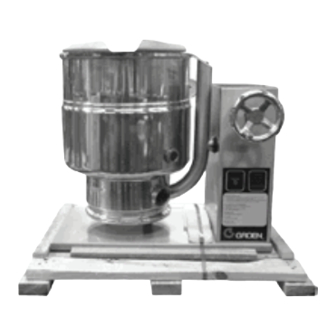

Domestic/government steam jacketed kettle
Hide thumbs Also See for TDB:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
This manual provides information for:
TDB & TDBC
STEAM JACKETED KETTLE
· Self Contained
· Electrically Heated
· Table Top Mounted
· Tilting
T
H
S I
M
A
N
U
A
L
M
U
S
T
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon receipt of
same and to determine the possibility of any damage, including concealed dam-
age. Unified Brands suggests that if you are suspicious of damage to make a
notation on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
PART NUMBER 148733, REV. E (10/09)
PART NUMBER 148733, REV. C (10/07)
Domestic/Government
B
E
R
E
T
A
N I
E
D
F
O
R
F
U
T
U
R
E
R
E
F
E
R
E
N
C
. E
1055 Mendell Davis Drive
Jackson, MS 39272
888-994-7636, fax 888-864-7636
groen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Groen TDB

Summary of Contents for Groen TDB

  • Page 1 OPERATOR MANUAL IMPORTANT INFORMATION, KEEP FOR OPERATOR This manual provides information for: TDB & TDBC Domestic/Government STEAM JACKETED KETTLE · Self Contained · Electrically Heated · Table Top Mounted · Tilting READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.

  • Page 2: Important Operator Warnings

    OM-TDB OM-TDB IMPORTANT — READ FIRST — IMPORTANT CAUTION: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS, CAUTIONS, AND SAFETY INSTRUCTIONS CONTAINED IN THIS MANUAL. WARNING: THIS UNIT IS INTENDED FOR USE IN THE COMMERCIAL HEATING, COOKING AND HOLDING OF WATER AND FOOD PRODUCTS, PER THE INSTRUCTIONS CONTAINED IN THIS MANUAL.
  • Page 3 THE WARNINGS AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED. CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE OPERATOR INJURY AND DAMAGE TO THE EQUIPMENT, AND WILL VOID ALL WARRANTIES.

  • Page 4: Table Of Contents

    OM-TDB OM-TDB Table of Contents IMPORTANT OPERATOR WARNINGS ........... . . 2 EQUIPMENT DESCRIPTION .

  • Page 5: Equipment Description

    OM-TDB Equipment Description The Groen TDB and TDBC are table top, tilting, A built-in steam generator, sized for the kettle steam jacketed kettles with a thermostatically capacity and heated by electricity, delivers steam controlled, self-contained, electrically-heated into the jacket. “Airless” operation of the steam...

  • Page 6: Inspection & Unpacking

    OM-TDB Inspection & Unpacking The unit will arrive in a heavy shipping carton For TDB units, attach the tilt handle (normally and will be attached to a skid. Immediately upon shipped inside the kettle) by carefully threading it receipt, inspect the carton carefully for exterior into the socket on the trunnion support.

  • Page 7: Installation

    OM-TDB OM-TDB Installation The Groen Kettle is provided with complete CAUTION internal wiring. It is ready for BEFORE ANY ELECTRICAL CONVERSION, immediate connection. A wiring VERIFY THAT THE BRANCH CIRCUIT diagram is provided in this WIRING IS ADEQUATE TO HANDLE ANY manual and on the inside of the INCREASE AMPERAGE REQUIREMENTS.
  • Page 8 A BX style connection is not recommended. TDB / TDBC SUPPLY WIRE REQUIREMENTS THWN (75°) / THHN (90°) COPPER ONLY TDB-20, TDBC-20 TDB-40, TDBC-40 SUPPLY...

  • Page 9: Initial Start-Up

    Groen 5. To shut down the unit, turn the thermostat Certified Service Agency. dial to “OFF”. A simple turn of the thermostat controls the Groen TDB and TDBC kettle. OM-TDB OM-TDB...

  • Page 10: Operation

    TAKE SPECIAL CARE TO AVOID CONTACT WITH KETTLE BODY PRODUCT, WHEN ADDING INGREDIENTS, On TDB and TDBC units, the jacket water level is STIRRING OR TRANSFERRING PRODUCT shown in a sight glass on the kettle body. TO ANOTHER CONTAINER. OM-TDB...
  • Page 11 OM-TDB OM-TDB Wear protective oven mitts and a protective CAUTION apron. DO NOT OVERFILL THE KETTLE WHEN COOKING, HOLDING OR CLEANING. When putting the cover on the kettle, position KEEP LIQUIDS AT LEAST 2-3” (5-8 cm) it on top of kettle rim, with its flat edge facing BELOW THE KETTLE BODY RIM TO the pouring lip.

  • Page 12: Sequence Of Operation

    OM-TDB OM-TDB CAUTION WARNING DO NOT TILT KETTLE BODY WITH COVER AVOID ALL DIRECT CONTACT WITH HOT IN PLACE. COVER MAY SLIDE OFF, FOOD WATER KETTLE. CAUSING INJURY TO OPERATOR. DIRECT CONTACT COULD RESULT IN SEVERE BURNS. 2. Basket Insert...

  • Page 13: Maintenance

    OM-TDB OM-TDB Maintenance NOTICE: Contact an authorized Groen representative when repairs are required. A Maintenance & Service Log is provided at the back of this manual with the warranty information. Each time maintenance is performed on your Groen kettle, enter the date on which the work was done, what was done, and who did it.
  • Page 14 OM-TDB OM-TDB 3. Grease / Lubrication (By Service) For TDB Models: At least twice a year, grease the two trunnion bearings. The bearings are located within the kettle support housing. Remove the access panels from the support housing with a screwdriver to gain access to the grease fittings.
  • Page 15 OM-TDB OM-TDB Hang a strip of pH test paper on the rim Use a measuring cup to add the of the container, with about 1 inch of compound so that you may record the the strip below the surface of the water.

  • Page 16: Cleaning

    OM-TDB Cleaning 1. Suggested Cleaning Supplies: b. Scrape and flush out large amounts of food residues. Be careful not to scratch a. Cleaner, such as Klenzade HC-10 or the kettle with metal implements. HC-32 from ECOLAB, Inc. b. Kettle brushes in good condition.
  • Page 17 Clean the kettle thoroughly. If there is difficulty removing mineral deposits or a film left by hard water or food residues, then use a de-liming agent, such as Groen De-limer De-Scaler (Part Number 114800), Lime- Away from ECOLAB or an equivalent, following manufacturer directions.

  • Page 18: Troubleshooting

    OM-TDB Troubleshooting Your Groen kettle is designed to operate smoothly and efficiently if properly maintained. However, the following is a list of checks to make in the event of a problem. Wiring diagrams are furnished inside the service panel. If an item on the list is followed by , the work should be done by a qualified service representative.

  • Page 19: Parts List

    PARTS LIST – TDB-20E/40E OM-TDB...
  • Page 20 PARTS LIST – TDB-20E/40E OM-TDB...
  • Page 21 PARTS LIST – TDB-20E/40E OM-TDB...
  • Page 22 PARTS LIST – TDB-20E/40E To order parts, contact your Groen Authorized Service Agent. Supply the model designation, serial number, part description, part number, quantity, and when applicable, voltage and phase. Key Description Part No. Key Description Part No. Water Fill Assembly...

  • Page 23: Wiring Diagram

    PARTS LIST – TDB-20E/40E OM-TDB...

  • Page 24: Service Log

    OM-TDB OM-TDB Service Log Model No. _______________________________ Purchased From _________________________ Serial No. _______________________________ Location ________________________________ Date Purchased __________________________ Date Installed ___________________________ Purchase Order No. ______________________ For Service Call __________________________ Date Service Performed Performed By OM-TDB OM-TDB...

  • Page 25: References

    OM-TDB OM-TDB OM-TDB OM-TDB References References KLENZADE SALES CENTER ECOLAB. Inc. 370 Wabasha KLENZADE SALES CENTER ECOLAB. Inc. St. Paul, Minnesota 55102 370 Wabasha 800/352-5326 or 612/293-2233 St. Paul, Minnesota 55102 800/352-5326 or 612/293-2233 NATIONAL FIRE PROTECTION ASSOCIATION 60 Battery March Park...

  • Page 26: Warranty

    Groen (ìGroen Equipmentî) (other than CapKold foodservice equipment) shall be free from defects in material and workmanship for (12) twelve months from the date of installation or fifteen (15) months from date of shipment from Groen, whichever date first occurs (the ìWarranty Periodî), in accordance with the following terms and conditions: This warranty is limited to replacement parts and related labor for Groen Equipment located at its original place of installation in the United States and Canada.
  • Page 27 FOR THE BREACH OR DELAY IN PERFORMANCE OF THIS WARRANTY. VIII. Groen Equipment is for commercial use only. If sold as a component of another (O.E.M.) manufacturerís equipment, or if used as a consumer product, such Equipment is sold AS IS and without any warranty.
  • Page 28 1055 Mendell Davis Drive Jackson MS 39272 888-994-7636 601-372-3903 Fax 888-864-7636 groen.com PART NUMBER 148733, REV. E (10/09)
