Groen TDB Series Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Instructions to be followed in the event user smells
gas. This information shall be obtained by consulting your local gas
supplier. As a minimum, turn off the gas and call your gas company and
your authorized service agent. Evacuate all personnel from the area.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.

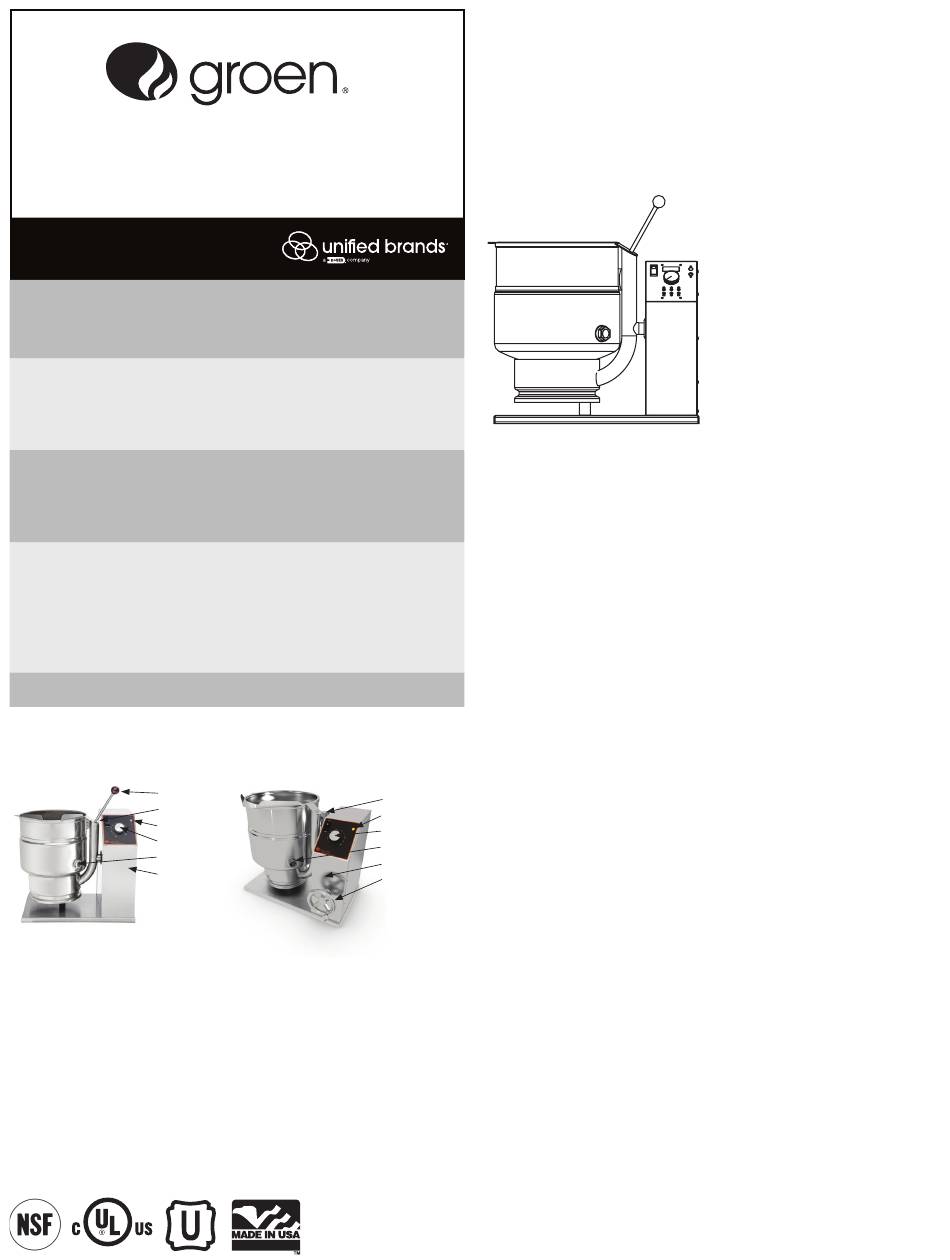

EQUIPMENT DESCRIPTION
TILT HANDLE
PRESSURE GAUGE
HEAT INDICATOR LIGHT
TEMP CONTROL KNOB
BULLSEYE SIGHTGLASS
SUPPORT HOUSING
Model TDB
The TDB and TDBC are table top, tilting, steam jacketed kettles with an electroni-
cally controlled, self-contained, electrically-heated steam supply and appropriate
controls, mounted on a sturdy base. Models are available in 20, 24, 40 and 48
quart capacity.
The body of the kettle is constructed of stainless steel, welded into one solid piece.
The kettle is furnished with a reinforced rim and a butterfly shaped pouring lip.
It has a steam jacket rated for a design pressure of 50 PSIG. Kettle finish is 180
emery grit on the inside and bright semi-deluxe on the outside. A tilt handle on
the TDB kettle and a hand wheel crank on the TDBC kettle allows the operator to
manually tilt the kettle body in a controlled manner. Pouring height accepts pans
up to four inches high on a table top.
This manual provides information for:
STEAM JACKETED KETTLE
MODELS TDB (C,A,C2T™) & TDBC
(C,A,C2T™) DOMESTIC
REFERENCES
NSF INTERNATIONAL
798 N. Dixboro Rd.
P.O. Box 130140
Ann Arbor, Michigan 48113-0140
UNDERWRITERS LABORATORIES, INC.
333 Pfingsten Road
Northbrook, Illinois 60062
KLENZADE SALES CENTER ECOLAB, Inc.
370 Wabasha
St. Paul, Minnesota 55102
A built-in steam generator, sized for the kettle capacity and heated by electric-
ity, delivers steam into the jacket. "Airless" operation of the steam jacket permits
PRESSURE GAUGE
uniform, efficient heating at temperatures as low as 150°F and as high as 295°F.
HEAT INDICATOR LIGHT
TEMP CONTROL KNOB
In addition to the operating control, the unit has a tilt cut-off switch, low water
BULLSEYE SIGHTGLASS
cut-off, pressure relief valve, and high-limit pressure switch as safety features. A
SUPPORT HOUSING
heating indicator light, pressure gauge, and sight glass are provided for monitoring
CRANK TILT HANDWHEEL
kettle operation.
A single electrical connection is required for installation. The unit may be ordered
for use with 208/240 or 480 volt power. All 208/240 volt kettles are wired for 208
Model TDBC
volt, three-phase operation. For 240 volt, three-phase OR single-phase conversion,
see the wiring diagrams and installation instructions in this manual.
Options available include:
1. Kit, cover and holder (P/N 128609, 20/24 qt - P/N 139806, 40/48 qt).
2. One-piece, lift-off cover (P/N 128003, 20/24 qt - P/N 128002, 40/48 qt).
3. Holder for Lift-off cover (P/N 133837).
4. Basket insert (P/N 001159, 20/24 qt - P/N 001161, 40/48 qt).
5. Lip Strainer (P/N 005187, 20/24 qt - P/N 005186, 40/48 qt).
6. Stand that supports the unit and holds a pan in position for filling (Model TS/9).
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands
recommends referencing our product line websites, unifiedbrands.net, for the most updated product information and specifications.
© 2019 Unified Brands. All Rights Reserved. Unified Brands is a wholly-owned subsidiary of Dover Corporation.
PART NUMBER 174840, REV. E (03/19)
NATIONAL FIRE PROTECTION ASSOCIATION
60 Battery March Park
Quincy, Massachusetts 02269
NFPA/70 - The National Electric Code
ZEP MANUFACTURING COMPANY
1310-T Seaboard Industrial Boulevard
Atlanta, Georgia 30318
