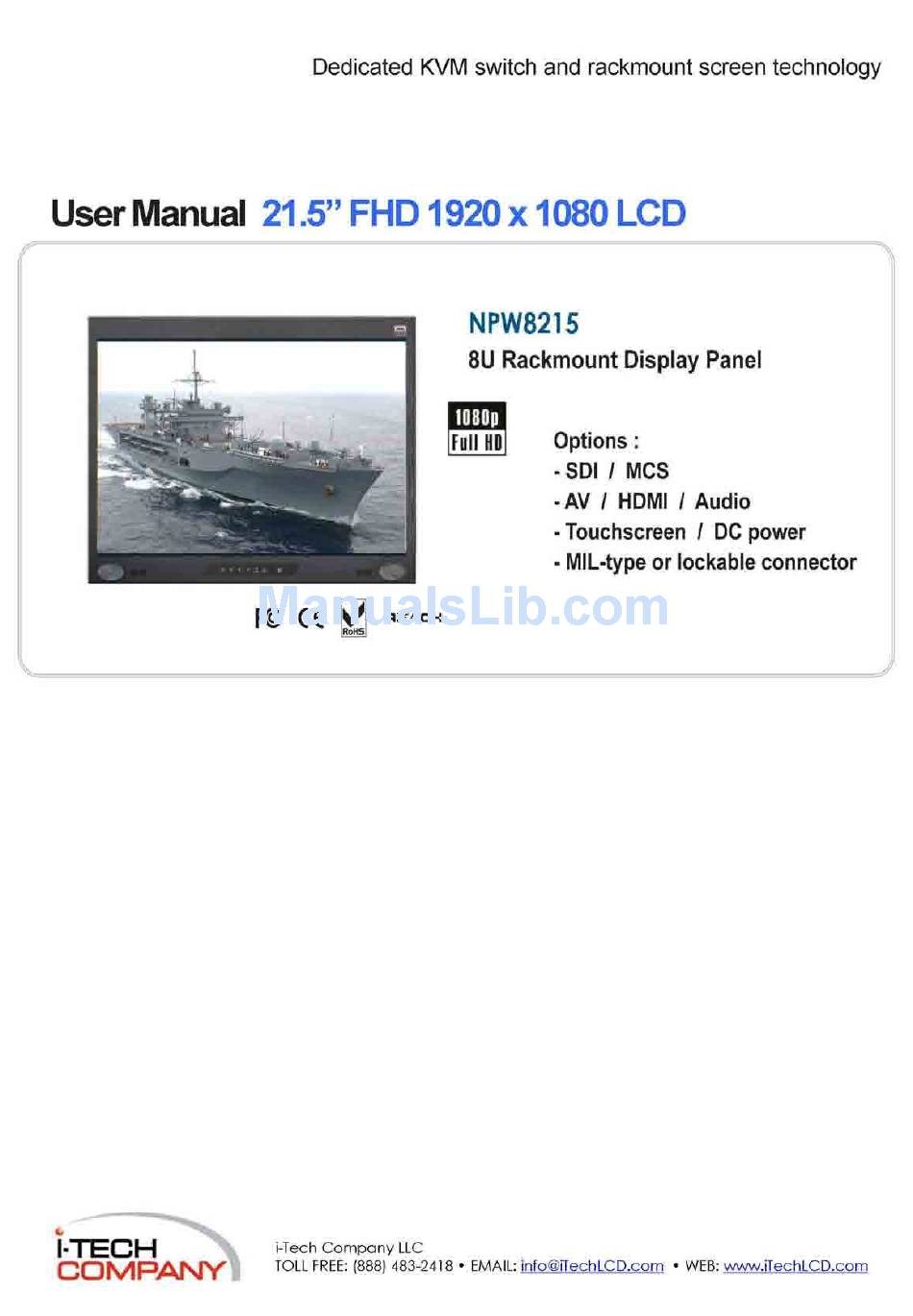

User Manual
r
Dedicated KVM switch and rackmount screen technology
21.5" FHD 1920 x 1080 LCD
REACH
F@ C€ Ml
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL:
NPW8215
8U R a c k m o u n t Display Panel
Options:
I Full HP|
- S D I / MCS
-AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
info@iTechLCD.com
• WEB:
www.iTechLCD.com
J
Advertisement
Table of Contents
Related Manuals for I-Tech NPW8215
Summary of Contents for I-Tech NPW8215
-
Page 1: User Manual
I Full HP| - S D I / MCS -AV / HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector REACH F@ C€ Ml i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com... - Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > NPW8215 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3-4 < Part. 2 > Specifications / OSD / Remote Controller Product Specifications P.5 - 6 On-screen Display Operation ( OSD ) P.7 - 8 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.9 -10... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Part. 1 > Npw8215
< Part 1 > < 1.1 > Package Content NPW8215 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram... - Page 6 ° n o 0 0 <C2^ O @ O © @ © 4C3* ° □ ° Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 501.9x64x353 mm 555 x124 x537 mm 10.3 kg 12.7 kg NPW8215 21.9x4.9x21.1" 22.7 lb 27.9 lb 19.8x2.5x13.9"...
-
Page 7: Installation
< 1.3 > VESA mount Installation M4 screw VESA mount (100*100mm Hardware and M4*4 pcs for VESA mount are not provided... - Page 8 Push the lower part of the NPW8215 display panel into the rear bracket. Step O Fix the NPW8215 display panel into the rear bracket with two fasteners ( Left & right side ). Lock the NPW8215 display panel by the latch ( on the bottom left &...
-
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications ^^ H^ Manufacturer 21.5-inch Widescreen TFT color LCD Panel Size ( diagonal) Display pixel ( dots x lines ) 1920x1080 Brightness (typ. ) 1000:1 Contrast Ratio (typ. ) 16.7 M Color Viewing Angle (L/R/U/D) 85/85/80/80 Response Time ( ms ) - Page 10 Operating Operating Temperature 0 to 50°C degree Environmental Conditions 20-90%, non-condensing Humidity Storage Storage Storage Storage Temperature -5 to 60°C degree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5-500Hz 1G RMS random Physical Product ( W x D x H ) Product ( W x D x H ) 501.9x64x353 mm Specification...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Function Membrane Switch Turn the monitor on or off DCZI Display the OSD menu DCZI DCZI Act as an Enter key to select screen setting options A V < Scroll through menu options and adjust >... - Page 12 < 2.2 > On-screen Display Operation ( OSD ) © PC Auto adjust Automatically adjust sizes, centers and fine tunes the ajto adjust video signal to eliminate waviness and distortion. Clock Clock : Adjust the clock value [> Phase Phase : Adjust the phase value H positive H.
-
Page 13: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSDMenu -> MISC -► PIP Mode -> Large / Small / OFF Main screen Sub screen Position... - Page 14 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSDMenu -> MISC -> PIP Mode -► PBP Sub screen Main screen Size LCD Monitor Main / Sub screen 1920x1200 955x716 1920x1080 955x716 1440x900...
-
Page 15: Options : 3G / Hd / Sd-Sdi Input
< Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input iTechLCDs' SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTechLCD provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty. -
Page 16: Part. 3 > Options
< 3.2 > Options : MCS ( Multi-display Control) More control is always good. Especially when it is necessary and easy. iTechLCD provides MCS solution to control the OSD of various NetView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used for the various LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. -
Page 17: Av3.0 Upgrade
< 3.3 > AV3.0 Upgrade Options : - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) A u d DVI-D ' ° , Power BNC S-Video HDMI 2.9.9 ©... - Page 18 < 3.4 > Options : Touchscreen & driver F21.5" USB Touchscreen Specification Model Model Model Model Model Model Model Model Model Model Model Model Model e-Resistive e-Capacitive Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology 5-Wire Resistive Capacitive Touch Point...
- Page 19 < 3.5 > Options : DC Power ofsTelo Model Input rating 24-Volt 48-Volt Input voltage: 12-Volt 9 - 1 8 V 1 8 - 3 6 V 36 ~ 75V Input range: Input current 50 mA 50 mA - No load 50 mA 4950 mA 2450 mA...
-
Page 20: Mil-Type Or Lockable Connector
LUSB-A111 -00 MIL - type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided. j-TECH i-Tech C o m p a n y LLC COMPANY TOLL FREE: (888) 483-2418 * EMAIL: info@iTechLCD.com * WEB: w w w .
