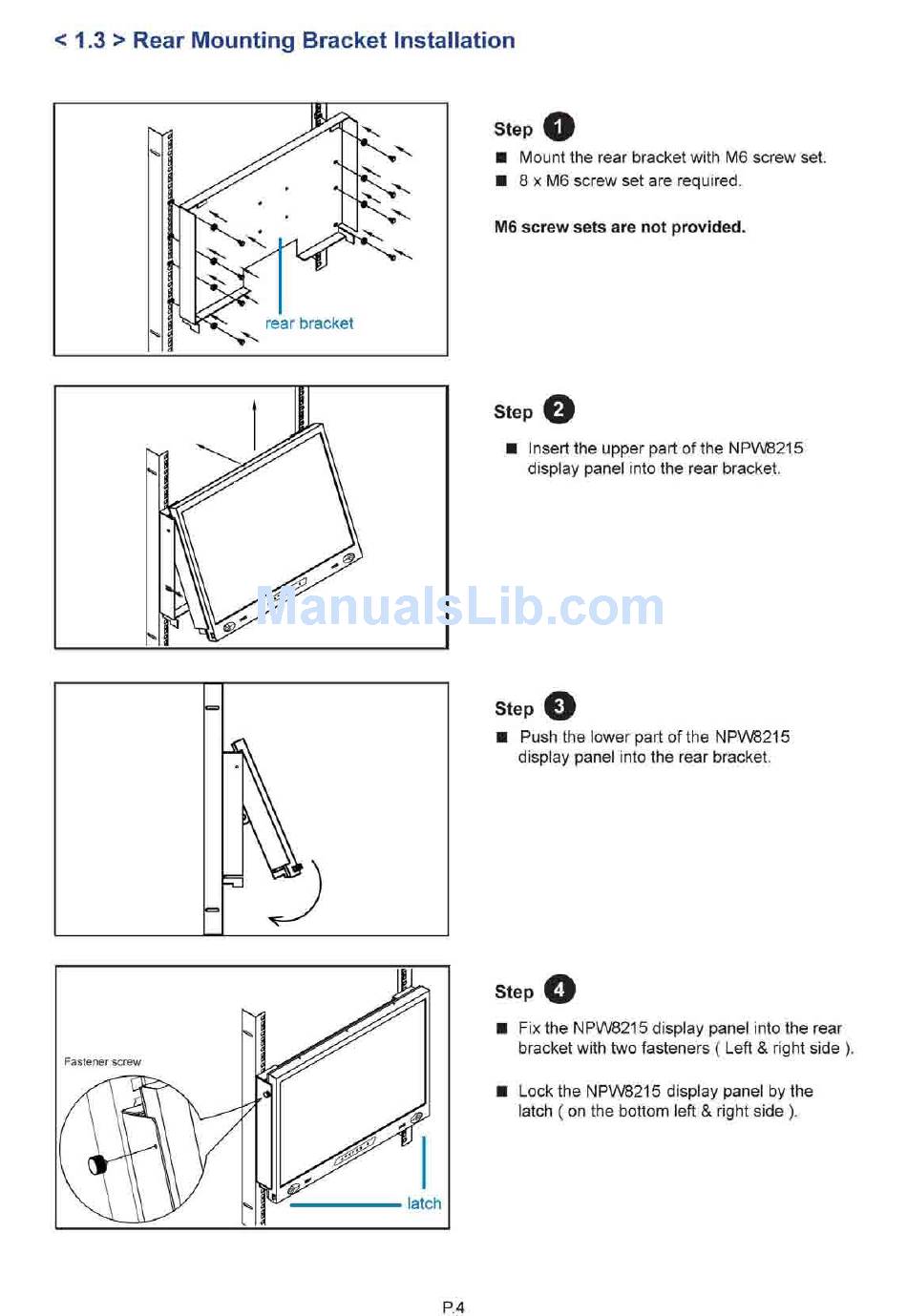

< 1.3 > Rear Mounting Bracket Installation
Step O
■
Mount the rear bracket with M6 screw set.
■
8 x M6 screw set are required.
M6 screw sets are not provided.
Step O
Insert the upper part of the NPW8215
display panel into the rear bracket.
Step O
Push the lower part of the NPW8215
display panel into the rear bracket.
Step O
Fix the NPW8215 display panel into the rear
bracket with two fasteners ( Left & right side ).
Lock the NPW8215 display panel by the
latch ( on the bottom left & right side ).
