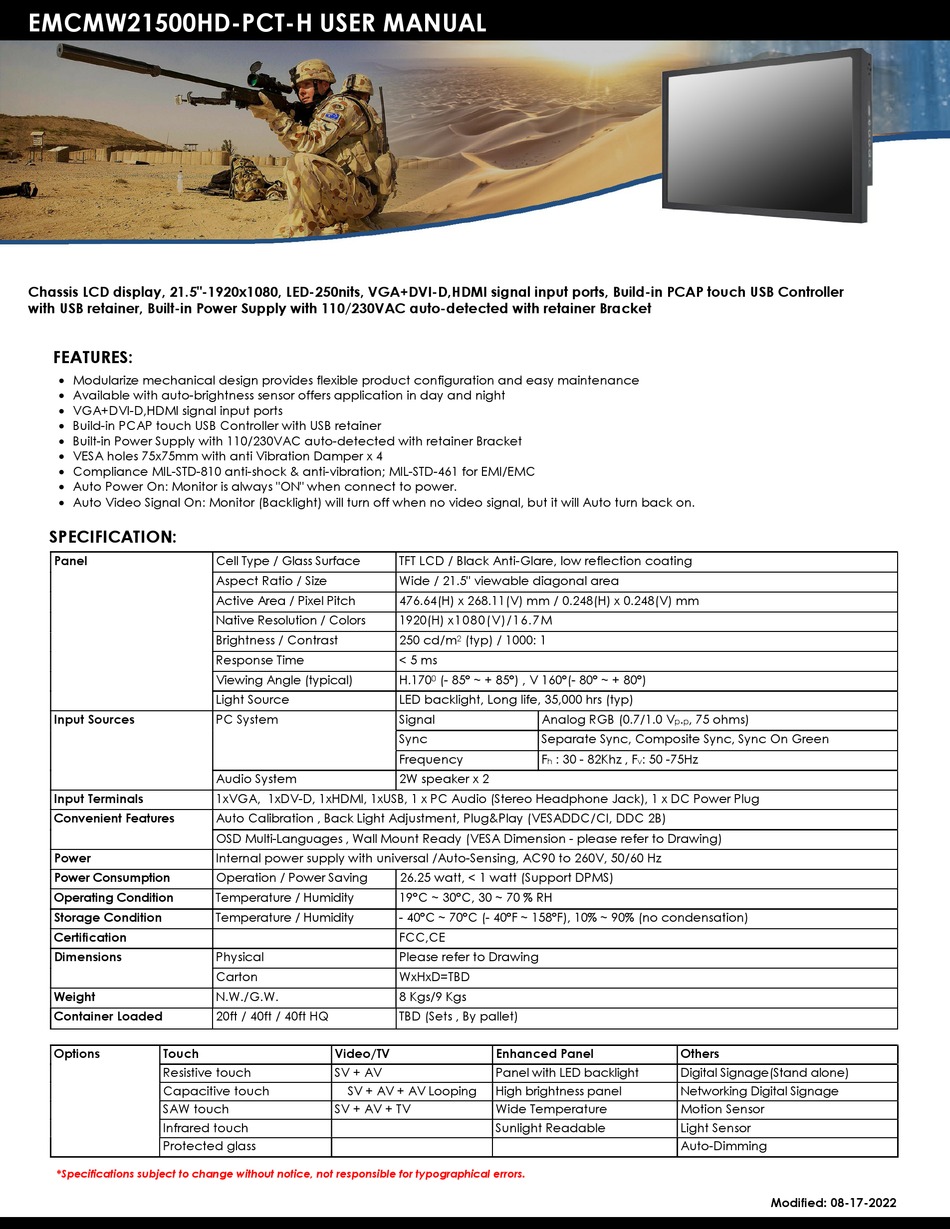

I-Tech EMCMW21500HD-PCT-H User Manual

EMCMW21500HD-PCT-H USER MANUAL
Chassis LCD display, 21.5"-1920x1080, LED-250nits, VGA+DVI-D,HDMI signal input ports, Build-in PCAP touch USB Controller
with USB retainer, Built-in Power Supply with 110/230VAC auto-detected with retainer Bracket
FEATURES:
 Modularize mechanical design provides flexible product configuration and easy maintenance
 Available with auto-brightness sensor offers application in day and night
 VGA+DVI-D,HDMI signal input ports
 Build-in PCAP touch USB Controller with USB retainer
 Built-in Power Supply with 110/230VAC auto-detected with retainer Bracket
 VESA holes 75x75mm with anti Vibration Damper x 4
 Compliance MIL-STD-810 anti-shock & anti-vibration; MIL-STD-461 for EMI/EMC
 Auto Power On: Monitor is always "ON" when connect to power.
 Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.
SPECIFICATION:
Panel
Input Sources
Input Terminals
Convenient Features
Power
Power Consumption
Operating Condition
Storage Condition
Certification
Dimensions
Weight
Container Loaded
Options Touch
Resistive touch
Capacitive touch
SAW touch
Infrared touch
Protected glass
*Specifications subject to change without notice, not responsible for typographical errors.
Cell Type / Glass Surface
Aspect Ratio / Size
Active Area / Pixel Pitch
Native Resolution / Colors
Brightness / Contrast
Response Time
Viewing Angle (typical)
Light Source
PC System
Audio System
1xVGA, 1xDV-D, 1xHDMI, 1xUSB, 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Auto Calibration , Back Light Adjustment, Plug&Play (VESADDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Internal power supply with universal /Auto-Sensing, AC90 to 260V, 50/60 Hz
Operation / Power Saving
Temperature / Humidity
Temperature / Humidity
Physical
Carton
N.W./G.W.
20ft / 40ft / 40ft HQ
Video/TV
SV + AV
SV + AV + AV Looping
SV + AV + TV
TFT LCD / Black Anti-Glare, low reflection coating
Wide / 21.5" viewable diagonal area
476.64(H) x 268.11(V) mm / 0.248(H) x 0.248(V) mm
1920(H) x1080(V)/16.7M
250 cd/m (typ) / 1000: 1
2
< 5 ms
H.170 (- 85° ~ + 85°) , V 160°(- 80° ~ + 80°)
0
LED backlight, Long life, 35,000 hrs (typ)
Signal Analog RGB (0.7/1.0 V
Sync Separate Sync, Composite Sync, Sync On Green
Frequency F : 30 - 82Khz , F
h
2W speaker x 2
26.25 watt, < 1 watt (Support DPMS)
19°C ~ 30°C, 30 ~ 70 % RH
- 40°C ~ 70°C (- 40°F ~ 158°F), 10% ~ 90% (no condensation)
FCC,CE
Please refer to Drawing
WxHxD=TBD
8 Kgs/9 Kgs
TBD (Sets , By pallet)
Enhanced Panel
Panel with LED backlight
High brightness panel
Wide Temperature
Sunlight Readable
. , 75 ohms)
p p
: 50 -75Hz
v
Others
Digital Signage(Stand alone)
Networking Digital Signage
Motion Sensor
Light Sensor
Auto-Dimming
Modified: 08-17-2022
