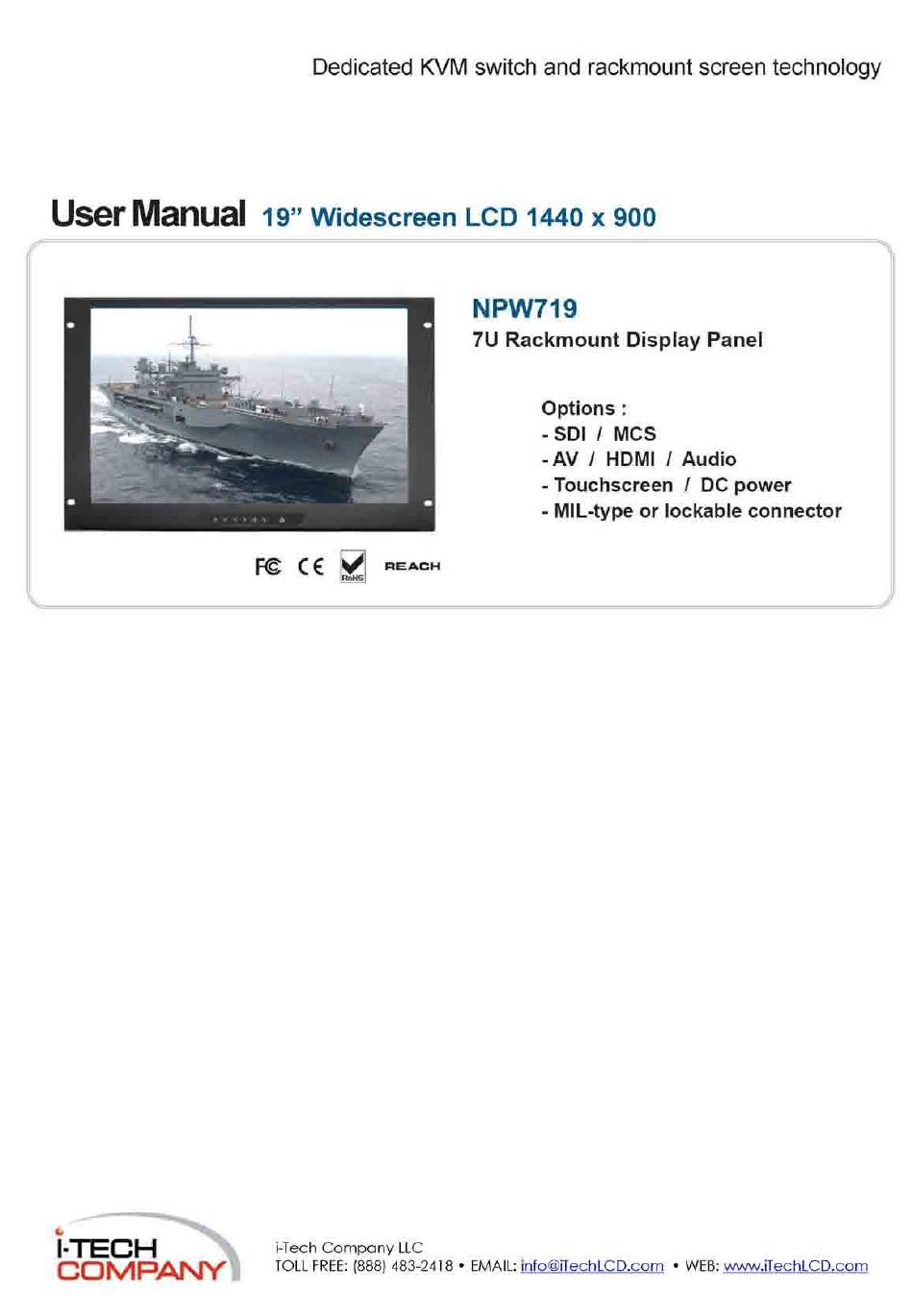

U s e r M a n u a l
Dedicated KVM switch and rackmount screen technology
19" Widescreen LCD 1440 x 900
F© C€ * /
R E A C H
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL:
NPW719
7U Rackmount Display Panel
Options :
-SDI / MCS
-AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
info@iTechLCD.com
• WEB:
www.iTechLCD.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for I-Tech NPW719
Summary of Contents for I-Tech NPW719
- Page 1 -SDI / MCS -AV / HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector F© C€ * / R E A C H i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents > NPW719 Package Content Structure Diagram & Dimension Installation > Specifications / OSD / Remote Controller Product Specifications On-screen Display Operation ( OSD ) > Options 3G/HD/SD-SDI Broadcast-grade input MCS Multi-display control solution AV2.2D Upgrade : DVI-D + VGA* BNC + S-Video + Audio P.10... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content NPW719 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 L I I I !■!Hill I'll III lllli < 1.2 > Structure Diagram... - Page 6 529 x 1 2 4 x 4 9 5 mm 5.8 kg 7.9 kg NPW719 1 8 . 9 x 2 . 3 x 1 2 . 2 inch 2 0 . 8 x 4 . 9 x 1 9 . 5 inch 12.8 lbs...
-
Page 7: Installation
< 1.3 > Installation Step O ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step O Fix the LCD into the rack. -
Page 8: Product Specifications
< Part 2 > < 2.1 > Product Specifications ffly Manufacturer 19-inch Widescreen TFT color LCD Panel Size ( diagonal) Display pixel ( dots x lines ) 1440x900 Brightness (typ. ) 1000:1 Contrast Ratio (typ. ) Color 16.7 M Viewing Angle (L/R/U/D) 80/80/80/80 Response Time ( ms ) 0.2835... - Page 9 Operating Operating Temperature 0 to 50°C degree Environmental Conditions Humidity 20-90%, non-condensing Storage Storage Storage Storage Temperature -5to60°Cdegree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5-500Hz 1G RMS random Physical Product ( W x D x H ) 4 8 0 x 5 8 x 3 1 0 mm Specification 18.9x2.3x12.2 inch...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) t> Membrane Switch Function Turn the monitor on or off DCZI Display the OSD menu n i = i D l = l Act as an Enter key to select screen setting options Scroll through menu options and adjust A V <... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) Ver: G56SN20SSTD701 1024x768 59.8Hz Image Image Image Image Image Image Image Image Image Image Brightness Brightness Brightness Brightness Brightness Brightness Brightness Brightness Brightness Brightness ^ ^ ^ ^ M ^^^^^m Contrast Contrast Contrast Contrast...
- Page 12 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input iTechLCDs' SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTechLCD provides a...
- Page 13 < 3.2 > Options : MCS ( Multi-display Control) More control is always good. Especially when it is necessary and easy. iTechLCD provides MCS solution to control the OSD of various NetView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used for the various LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters.
- Page 14 < 3.3 > AV2.2D Upgrade Options : - D V I - D (DVI-DTMDS single link) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) A u d DVI-D ' °...
-
Page 15: Av3.0 Upgrade
< 3.5 > AV3.0 Upgrade Options : - HDMI ( HDMI 1.1, CEA-861-D ) - D V I - D ( DVI-D TMDS single link) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) A u d DVI-D ' °... - Page 16 < 3.6 > Options : Touchscreen & driver W19" USB Touchscreen Specification e-Resistive Model Model Model Model Model Model Model Model Model Model Model Model Model e-Capacitive Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology 5-Wire Resistive Capacitive Touch Point...
-
Page 17: Mil-Type Or Lockable Connector
< 3.7 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL -type MIL -type MS3470W8-33P MIL-DTL-26482 DC Power *** © Connector Connector ( Male ) MS3470W14-15P MIL - D T L - 26482 MIL - D T L - 26482 VGA *** ( Male ) There are several additional MIL DC and VGA connector types with varying design... - Page 18 < 3.4 > Options : DC Power ofeTelo Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt 1 8 - 3 6 V 36 ~ 75V Input range: 9 - 1 8 V Input current - No load 50 mA 50 mA 50 mA 2450 mA 1220 mA...
- Page 19 ITECH i-Tech C o m p a n y LLC COMPANY TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: w w w . i T e c h L C D . c o m...
