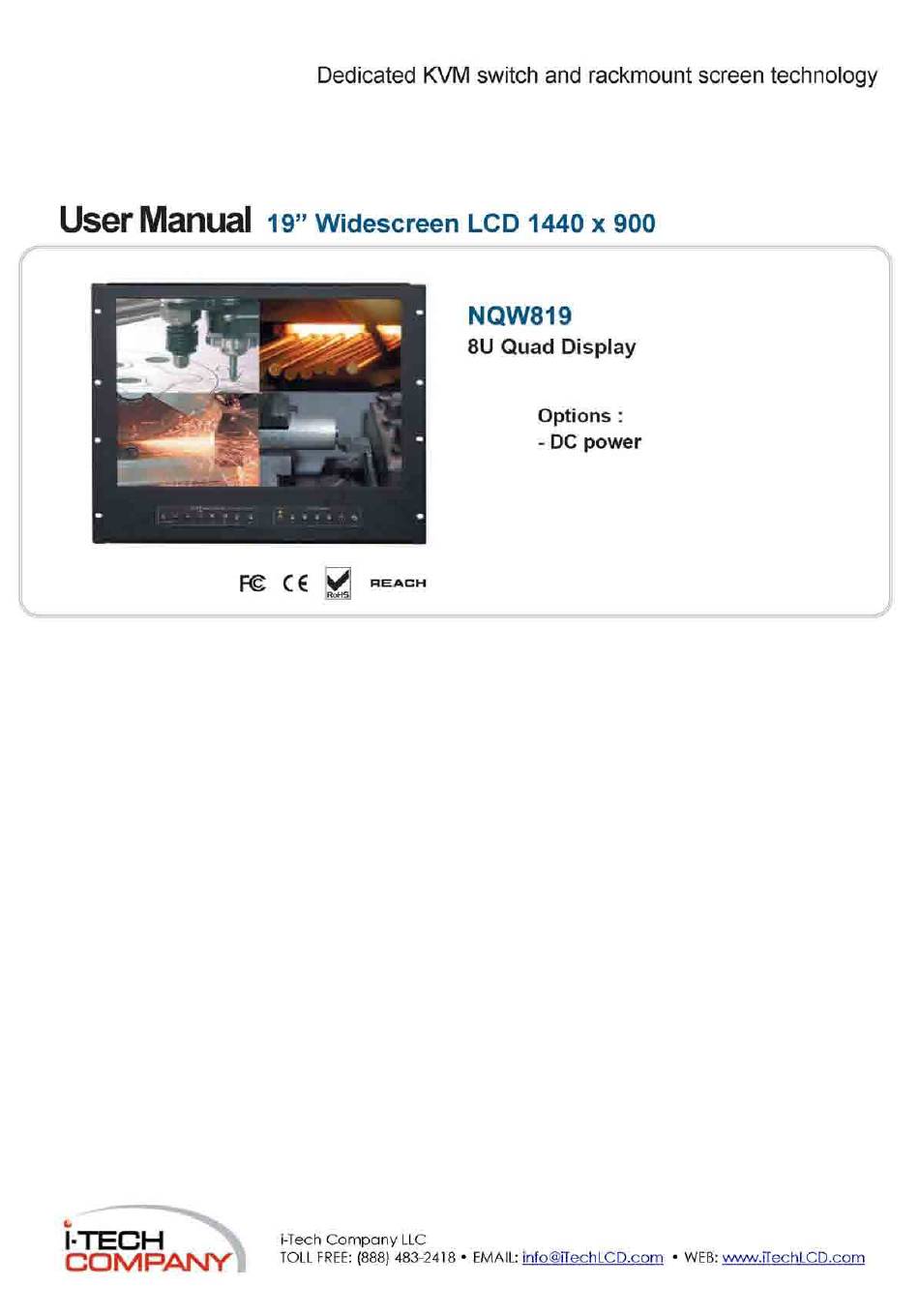

- Page 1 U s e r M a n u a l 19” Widescreen LCD 1440 x 900 NQW819 8U Quad Display Options : - DC power R£ C€ V? R E A C H |-T~E^j|"~I i-Tech Company LLC C^DN^RA^TY TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > NQW819 Package Content Structure Diagram & Dimension Installation P. 3 < Part. 2 > Specifications / OSD Product Specifications On-screen Display Operation (OSD) < Part. 3 > Options 48V, 24V or 12VDC power < Part. 4 >... -
Page 4: Part. 1 > Nqw819
< Part 1 > < 1.1 > Package Content NQW819unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view LCD panel ©... - Page 5 Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 480x72.5x354.8 mm 539 x129 x529 mm 9.5 kg 12.5 kg NQW819 18.9 x 2.9 x 14 inch 21.2x5.1 x 20.8 inch 20.9 lbs 27.5 lbs...
-
Page 6: Installation
< 1.3 > Installation Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 8 pcs required ( Left & right side ). M6 screw sets are not provided. Step O Fix the LCD into the rack. -
Page 7: Product Specifications
< Part 2 > < 2.1 > Product Specifications ^rf P^ Manufacturer 19-inch Widescreen TFT color LCD Panel Size ( diagonal) Display pixel ( dots x lines ) 1440x900 Brightness (typ. ) 1000:1 Contrast Ratio (typ. ) Color 16.7 M Viewing Angle (L/R/U/D) 80/80/80/80 Response Time ( ms ) - Page 8 Physical Product ( W x D x H ) 480x72.5x354.8 mm Specification 18.9 x 2.9 x 14 inch Packing ( W x D x H ) 539 x129 x529 mm 21.2x5.1 x 20.8 inch Net Weight 9.5 kgs/20.9 lbs Gross Weight 12.5 kgs/27.5 lbs VGA Input PC Signal...
-
Page 9: On-Screen Display Operation (Osd)
< 2.2 > On-screen Display Operation ( OSD ) LCD OSD Menu O Power light • Green = On Orange = Power saving Membrane Switch Function Power on / off LCD ( ! ) Display the OSD menu Scrolls through menu options and adjusts the displayed control AV<3 >... -
Page 10: Part. 3 > Options
< Part 3 > < 3.1 > Options : DC Power Model Input rating 48-Volt Input voltage: 12-Volt 24-Volt 36 - 75V Input range: 9 - 1 8 V 1 8 - 3 6 V Input current 50 mA 50 mA 50 mA - No load 4950 mA... -
Page 11: Qd Connection P8
< Part 4 > < 4.1 > QD Connection Camera 1 Camera 2 Camera 3 DC 12V In 4=> Camera 4 Monitor Processor VCR(DVR) 1. VCR i n : This BNC connector is connected to video output from VCR/DVR. A pre-recorded quad screen signal from a tape can be played back through a VCR/DVR and displayed on the video output channels. -
Page 12: Qd Alarm Connection & Operation
< 4.2 > QD ALARM Connection & Operation 1. ALARM I/O: This female type 9 pin D-sub connector is used for alarm sensor input and alarm output control connections. It provides Normal Open and Normal Close contacts for alarm out control. Pin Assignment for Alarm Connector (female type) PIN# PIN#... - Page 13 < 4.2 > QD ALARM Connection & Operation 3 Sensor Activated Alarm The unit is equipped with 4 alarm sensor inputs. If any alarm is activated: ■ the built-in buzzer and the alarm output control relay contact will be activated. ■...
-
Page 14: Qd Remote Control Connection & Operation
< 4.3 > QD Remote Control Connection & Operation ALARM RS-232 Cable Wire P.11... - Page 15 < 4.3 > QD Remote Control Connection & Operation The device can be controlled via the male type 9 pin D-sub/RS-232 connector to a computer using ASCII code. 1. Pin assignment of the male type 9 pin D-sub connector: Pin Assignment for Remote Control Connector When a computer is used to control this device through a RS-232 port, pin 6, 7, 8, and 9 must be disconnected to prevent connecting the VCC and GND signals from the device to the computer.
- Page 16 < 4.3 > QD Remote Control Connection & Operation *1. In order to control the device to operate in Zoom mode, the computer has to first send command code " to switch the signal source from camera to VCR/DVR, at this time the device will automatically zoom channel 1 video from VCR/DVR to full screen.
- Page 17 < 4.3 > QD Remote Control Connection & Operation 2.3 The configuration of the status code for both normal and alarm operations: There are total 2 bytes of the status codes. Byte one, the first 8 bits, shows the current status of the operation modes that the unit is in.
- Page 18 < 4.3 > QD Remote Control Connection & Operation BYTE 2: Status code for alarm operations: The first 4 bits show the sensor activated alarm status of each channel; next 4 bits show the video loss alarm status of each channel. The digit " 1 " means alarm event is detected, and "0"...
-
Page 19: Qd Osd Operation
< 4.4 > QD OSD Operation © Quad Display Control V C R S E Q 1—Selup—1 < > © © (T) Lock: Security locks out button. Push this button for 2 seconds to enable control panel lock out function. Push this button again for 2 seconds to disable the function. -
Page 20: Qd On-Screen Menu
< 4.5 > QD On-screen Menu Right after the unit is turned on, The monitor will display the last setting on the Setup Menu. 1. Page 1 of the Setup Menu - Display Setting Push Setup buttons (#1, #2) simultaneously to display the Setup Menu on the screen. There are total two pages in the Setup Menu. - Page 21 < 4.5 > QD On-screen Menu 2 Page 2 of the setup menu- Alarm Setting Push Setup buttons (#1, #2) simultaneously and push (#1) button again to display page 2 of the setup menu on the screen. This Alarm Setting menu is used to set the desired alarm configuration like sensor type, sensor sensitivity, alarm hold duration, and buzzer.
- Page 22 < 4.5 > QD On-screen Menu 4: The setup menu can be reset to factory setting by pushing the Setup buttons (#1, #2) and power on the quad simultaneously. The factory setting is as follows: ALARM SETTING TITLE DWELL TIME QUAD SENSOR TYPE...
-
Page 23: Qd Vcr Operation P20
< 4.6 > QD VCR Operation Zoom on VCR playback operation: Push VCR button (#2) to ON will switch the device to VCR playback mode. Under this mode, if the device is on quad display mode, a pr-recorded quad display video in the tape will be shown on the screen. If the device is in Full screen display mode, push any channel select buttons (#5) will select and expand the corresponding quadrants of the pre... - Page 24 I-TECH i-Tech C o m p a n y LLC C O M P A N Y • WEB: w w w . i T e c h L C D . c o m TOLL FREE: (888) 483-2418 • EMAIL:...
