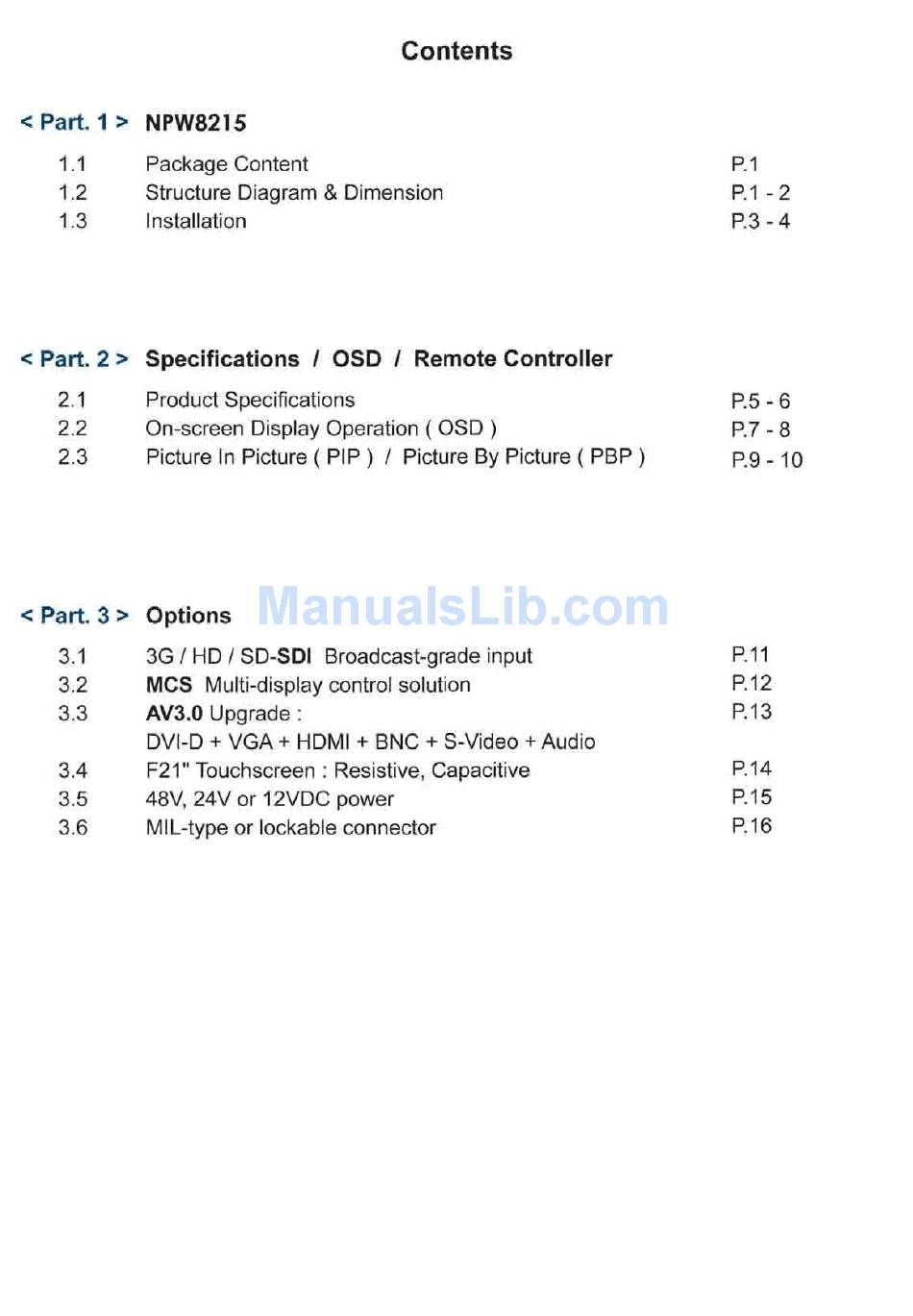

Table Of Contents - I-Tech NPW8215 User Manual

< Part. 1 >
NPW8215
Package Content
1.1
1.2 Structure Diagram & Dimension
Installation
1.3
< Part. 2 > Specifications / OSD / Remote Controller
2.1 Product Specifications
2.2 On-screen Display Operation ( OSD )
2.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP )
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input
3.2 MCS Multi-display control solution
3.3 AV3.0 Upgrade:
DVI-D + VGA + HDMI + BNC + S-Video + Audio
3.4 F21" Touchscreen: Resistive, Capacitive
3.5 48V, 24V or 12VDC power
3.6 MIL-type or lockable connector
Contents
P.1
P.1 - 2
P.3-4
P.5 - 6
P.7 - 8
P.9 -10
P. 11
P. 12
P. 13
P.14
P.15
P.16
