U s e r M a n u a l
Dedicated KVM switch and rackmount screen technology
17" FHD 1080p LCD
F© C€
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL:
NPW117
1U LCD Drawer
Options :
-SDI
- HDMI / Audio
- Touchscreen / DC power
•
info@iTechLCD.com
• WEB:
www.iTechLCD.com
Advertisement
Related Manuals for I-Tech NPW117
Summary of Contents for I-Tech NPW117

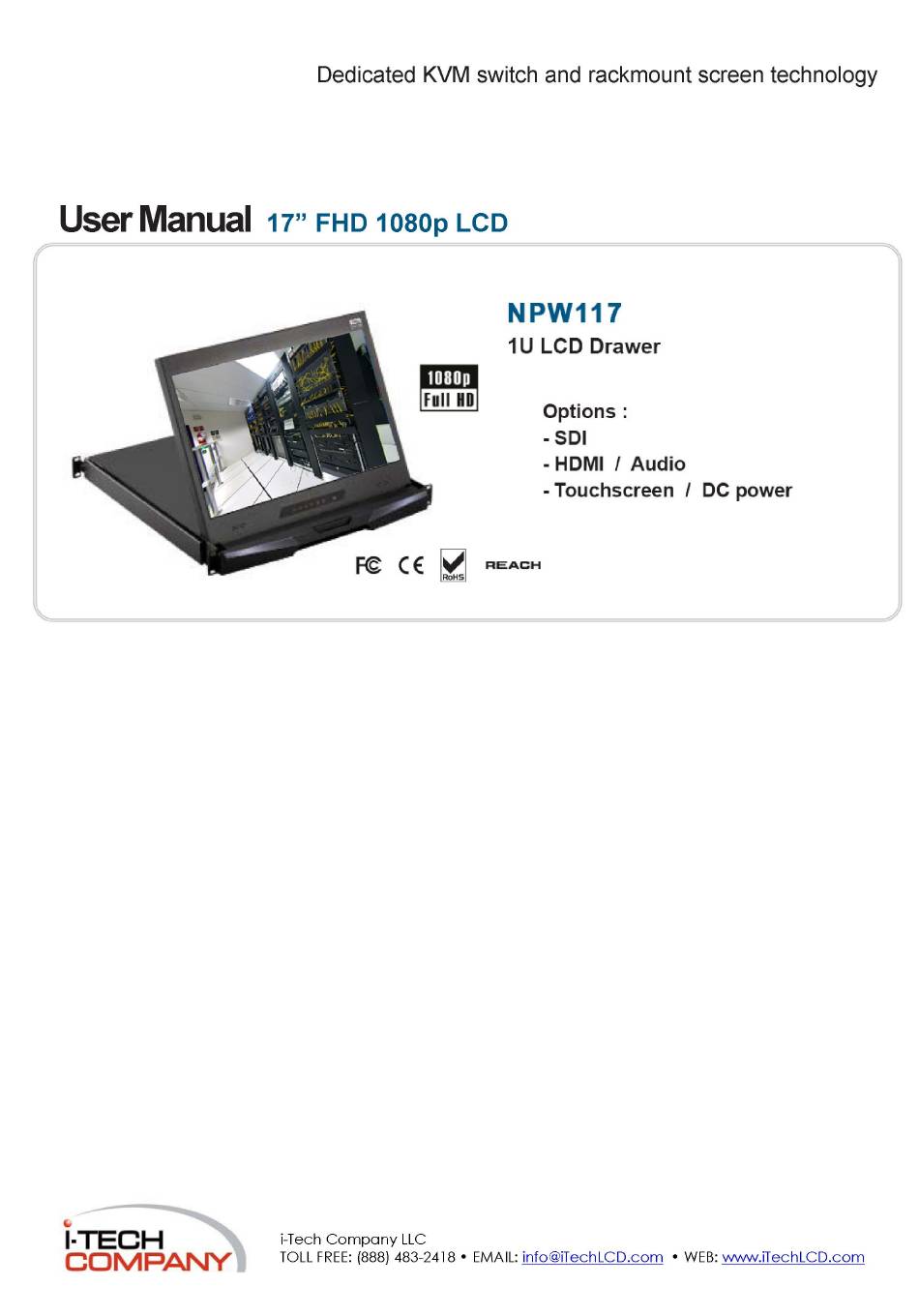

- Page 1 U s e r M a n u a l 17” FHD 1080p LCD NPW117 1U LCD Drawer Options : -SDI - HDMI / Audio - Touchscreen / DC power F© C€ • i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents < Part. 1 > NPW117 Package Content Structure Diagram & Dimension Installation P. 3 < Part. 2 > Specifications / O S D Product Specifications On-screen Display Operation ( O S D ) < Part. 3 > Options 3 G / H D / S D - S D I Broadcast-grade input HDMI&...
- Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > < 1.1 > Package Content NPW117unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ). It varies with options such as SDI, HDMI, audio, touchscreen &...
- Page 6 Weight Weight 588 x 758 x 120 mm 11 kg 15 kg 441.6x480x44 mm NPW117 23.1 x 29.8x4.7" 24 lb 33 lb 17.4x18.1 x1.73" The weight is only for the pure models. It varies with accessories & options such as SDI, HDMI, audio, touchscreen & DC power.
- Page 7 nstall Installation Slides Step O Insert the left and right rear mounting brackets into the display drawer. Step O Measure the depth of the front and rear mounting rails. Align each rear mounting bracket to a suitable length. Step O Complete the installation ■...
- Page 8 < Part 2 > < 2.1 > Product Specifications 17.3-inch Widescreen TFT color LCD Panel Size ( diagonal) Display pixel ( dots x lines ) 1920x1080 Brightness (typ. ) Contrast Ratio (typ. ) 600:1 Color 16.7 M, 8-bit 80/80/60/80 Viewing Angle ( L/R/U/D ) Response Time ( ms ) Dot pitch ( mm ) 0.1989...
- Page 9 Environmental Operating Temperature 0 to 50°C degree Conditions 20-90%, non-condensing Humidity Storage Temperature -5to60°Cdegree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 441.6x480x44 mm Specification 17.4x18.9x1.73 inch Packing ( W x D x H ) 588x758x120 mm 23.1 x 29.8x4.7 inch...
- Page 10 < 2.2 > On-screen Display Operation ( OSD ) t> Membrane Switch Function Turn the monitor on or off DCZI Display the OSD menu □ □ D l = l Act as an Enter key to select screen setting options A V <...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) Ver: G56SN20SSTD701 1024x768 59.8Hz Image Brightness Contrast Color Temp User I ^ ^ M Green Blue Adjust: Select: ♦ + Set: ®/i=i Exit: t OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video:...
- Page 12 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input iTechLCD's SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTechLCD provides a...
- Page 13 < 3.2 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) For the above options, casing depth will be extended from 480mm (18.9" ) to 530mm ( 20.9" ) HDMI DVI-D Power...
- Page 14 < 3.3 > Options : Touchscreen & driver F17" USB Touchscreen Specification Model Model Model Model Model Model Model Model Model Model Model Model Model e-Resistive Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology 5-Wire Resistive Touch Point Touch Point Touch Point...
- Page 15 < 3.4 > Options : DC Power Model Input rating 24-Volt 48-Volt Input voltage: 12-Volt Input range: 9 - 1 8 V 1 8 - 3 6 V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA...
