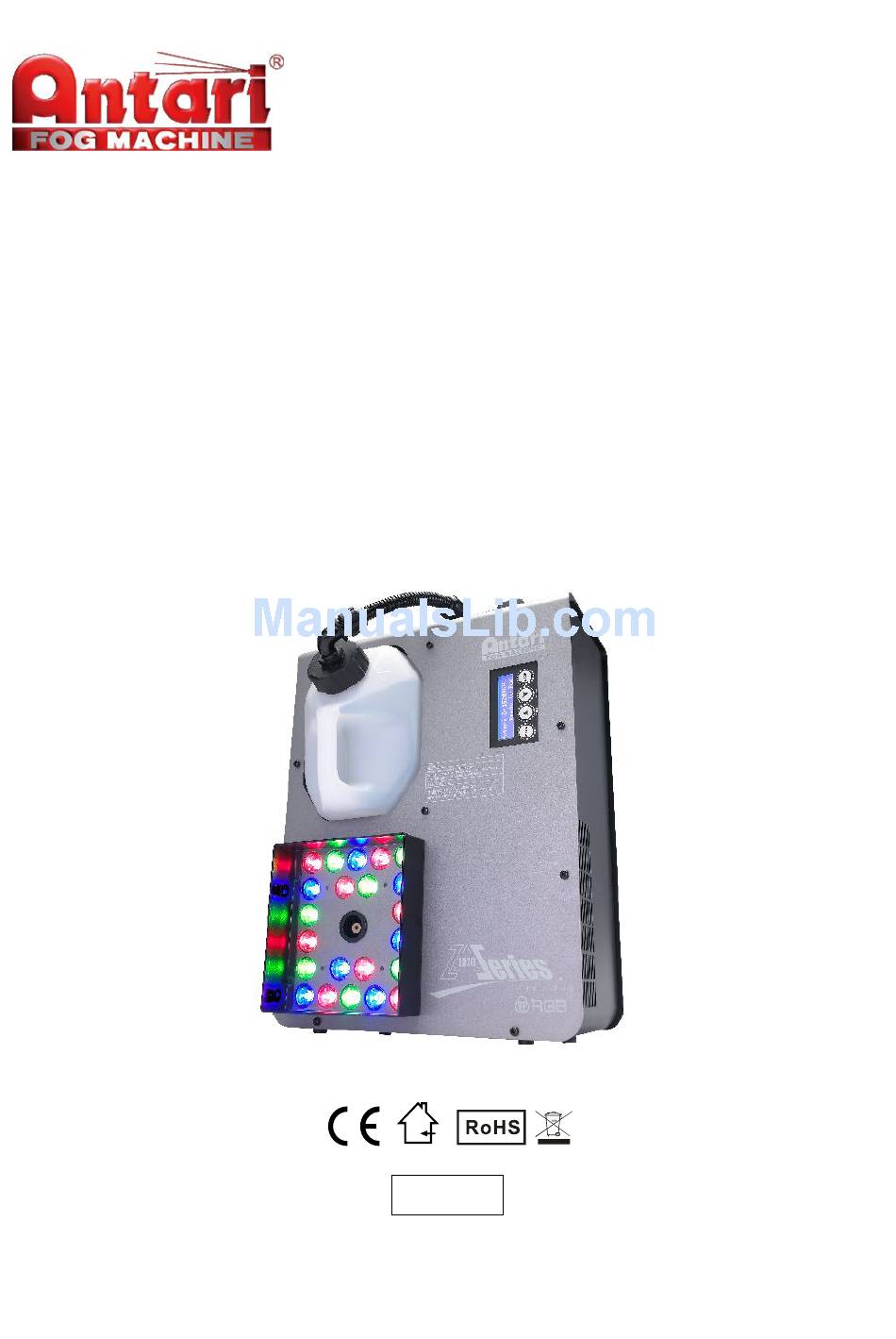

- Page 1 Z-1520 RGB Fog Machine User Manual English © 2014 Antari Lighting and Effects Ltd.
-
Page 2: Safety Information
Make sure there are no flammable materials close to the machine while operating. ․ Only use Antari fluid. Other fluid may lead to heater clog and malfunction. ․ If the machine fails to work, unplug the machine and stop operation immediately. - Page 3 If any parts appear damaged or mishandled from shipping, notify the shipper immediately and retrain the packing material for inspection. What is included: 1 x Z-1520 RGB Fogger 1 x W-2 Wireless Remote 1 x Power Cord 1 x User Manual...
-

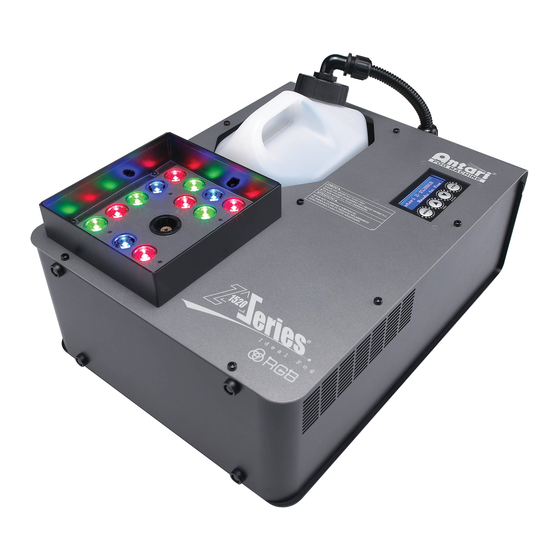

Page 4: Product Overview
Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm open space around the machine. Step 2: Fill the fluid tank with Antari approved fluid. Step 3: Connect the machine to suitable rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine. -
Page 5: Operation
Step 6: To turn off the machine, press STOP button and turn Powercon to the OFF position. Operation Control Panel Operation The machine can be operated with onboard digital control interface ANTARI Z-1520 RGB Ready to Fog Button Function [MENU] Scroll through setting menu ▲... - Page 6 Color Mode Turn LED On or Off Color Mode Set LED output color from macro 1 to 10 Marco:01 Color Mode Set LED chase from 1 to 15 Chase:01 Timer Set interval from 15 to 360 seconds Interval 15 Sec Timer Set duration from 1 to 5 seconds Duration 5 Sec...
- Page 7 Wireless Operation Wireless remote control system W-2 consist of a transmitter equipped with four buttons to activate four user configurable LED setting and fog; with an onboard receiver attach to the rear panel of Z-1520 RGB. W-2 Wireless Transmitter Wireless Receiver...
- Page 8 Transmitter can be pair or deleted from the receiver. Each receiver can pair up to 10 transmitters. Follow below steps to pair or delete transmitter from receiver. Step 1: Power off Z-1520 RGB Fogger Step 2: Press and hold [DOWN] button...
- Page 9 Function Ground Data- Data+ DMX Channel Function Channel 1 DMX Value Range Function 0 – 4 Fog Off 5 – 255 Fog On Channel 2 DMX Value Range Function Red LED 0-255 0-100% Channel 3 DMX Value Range Function Green LED 0-255 0-100% Channel 4...
-
Page 10: Service And Maintenance
1-20 Hz Fluid Only use Antari FLC water-based liquid for the Z-1520 RGB Fogger. The machine is tested and calibrated with this liquid to get the best output performance. Warranty will be void if any other type of liquid is used, improper use of liquid may lead to machine failure and malfunction. -
Page 11: Technical Specifications
Max. operating time 8 seconds burst Fluid tank capacity 2.4 L Fluid consumption 25 ml/10 sec. Compatible fluid Antari FLC water-based fluid Control option DMX 512, Manual, Timer, Wireless remote DMX channels 8 channels Power connection Neutrik Powercon DMX data connection... - Page 12 C08Z15200...
