Z-1500II and Z-3000II USER MANUAL
Z-1500II und Z-3000II BEDIENUNGSANLEITUNG
Mode D'Emploi des Z-1500II et Z-3000II Machines à Fumée
Congratulations on the purchase of your new
ANTARI Z-SERIES II FOG MACHINE.
Wir beglückwünschen Sie zum Kauf Ihres neuen ANTARI Z-SERIES II NEBELGERÄTES.
Nous vous félicitons pour l'achat de votre nouvelle
Z-SERIES II machine à fumée d'ANTARI.
♦ Read and save these instructions
♦ Bitte lesen Sie diese Anweisungen und bewahren Sie sie gut auf
♦ Lisez et Gardez ces instructions
 2005 Antari Lighting and Effects Ltd.
User Manual

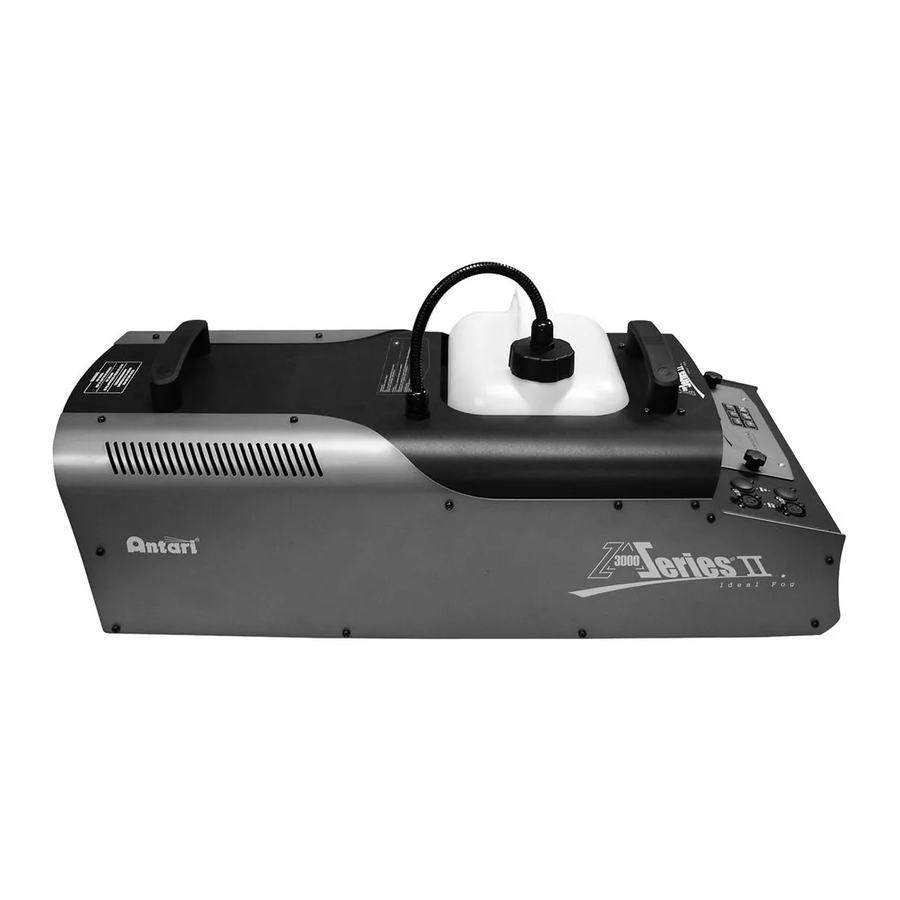

Antari Z-1500II and Z-3000II Fog Machine
Congratulations on the purchase of your new
ANTARI Z-Series II FOG MACHINE.
Introduction
Thank you for choosing ANTARI Z-Series II Fog Machine. You now own a rugged and powerful state-of-the-art
machine. Prior to use, we suggest that you carefully read all of the instructions. By following the suggestions found
in this user manual, you can look forward to the reliable and satisfactory performance of your ANTARI Fog
Machine for years to come.
Please follow these operation, safety and maintenance instructions to ensure a long and safe life for your fog
machine.
CAUTION:
Risk of electric shock. Disconnect the appliance from the electric supply before refilling liquid, cleaning or
performing maintenance on the machine.
Danger of Electric Shock
Keep this device dry.
For inside use only. Not designed for outside use.
For the 110V models, use 3-prong grounded electrical outlet only. Prior to use take care to determine that the
unit is installed at the rated voltage.
Always unplug your ANTARI Z-Series II Fog Machine before filling its tank.
Always keep fog machine in upright position.
Turn off or unplug the machine when not in use.
This machine is not water-proof. If moisture, water, or fog fluid gets inside the housing, immediately unplug the
unit and contact a service technician or your ANTARI dealer before using it again.
No user serviceable parts inside. Refer to your ANTARI dealer or other qualified service personnel.
Danger of Burns
For adult use only and must be installed out of the reach of children. Never leave the unit running unattended.
Never aim the output nozzle directly at people.
Fog machine output is very hot. Avoid coming within 60 cm of the output nozzle during operation.
Locate the fog machine in a well-ventilated area. Never cover the unit's vents. In order to guarantee adequate
ventilation, allow a free air space of at least 20 cm around the sides and top of the unit.
Never aim the output nozzle at open flames.
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-3000II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Antari Z-3000II

  • Page 1 Prior to use, we suggest that you carefully read all of the instructions. By following the suggestions found in this user manual, you can look forward to the reliable and satisfactory performance of your ANTARI Fog Nous vous félicitons pour l’achat de votre nouvelle Machine for years to come.
  • Page 2: Danger Of Explosion

    L 735 W 310 H 192 Remote Included Z-20 Z-20 Before beginning your initial setup on ANTARI Z-1500II or Z-3000II Fog Machine, make sure that there is no Optional Remote Z-30 Z-30 evident damage caused by transportation. In the event that the unit’s housing or cable is damaged, do not plug it in and do not attempt to use it until after contacting your ANTARI dealer for assistance.
  • Page 3: Maintenance

    Z-20: Do not allow the fog liquid to become contaminated. Always replace the caps on the fog liquid container and the fog machine liquid tank immediately after filling. After every 40 hours of continuous operation, it is recommended to run a cleaning solution composed of 80% distilled water and 20% white vinegar through the system to prevent the accumulation of particulate matter in the heating element.
  • Page 4 Für die 110V Modelle verwenden Sie bitte ausschließlich 3-adrige, geerdete Steckdosen. Vor Inbetriebnahme darauf achten, daß das Gerät an die richtige Spannung angeschlossen wird. The Z-1500II & Z-3000II Fog Machines have on-board DMX control. These two models use 1 channel to ♦...
  • Page 5: Bedienung

    Transportschaden vorliegt. Falls das Gehäuse der Einheit oder das Kabel beschädigt sein Maße(mm) L 688 W 285 H188 L 735 W 310 H 192 sollte, stecken Sie es nicht in die Steckdose und versuchen Sie nicht es zu benutzen, bevor Sie Ihren ANTARI- Fernbedienung im Lieferumfang Z-20 Z-20 Händler kontaktiert haben.
  • Page 6: Wartung

    ♦ Alle Nebelgeräte benötigen nach längerem Dauerbetrieb Betriebspausen, um wieder auf die korrekte Z-20: Betriebstemperatur zu kommen. Während diesen Pausen ist kein Nebelausstoß möglich. Wartung Achten Sie darauf, daß das Nebelfluid nicht verunreinigt wird. Setzen Sie sofort nach Befüllen des Tankes den Deckel des Tankes sowie des Kanister wieder auf.
  • Page 7 Kanal A Introduction Nous vous remercions d’avoir choisi une machine à fumée d’ANTARI Z. Vous êtes en possession d’un produit robuste et puissant. En vue d’utiliser correctement votre nouvel appareil, veuillez lire attentivement ce mode d’emploi. Si vous respectez les instructions suivantes, vous profiterez d’une performance solide et convaincante de votre machine à...
  • Page 8: Caracteristiques Techniques

    Placez la machine à fumée sur une surface plane et dévissez le couvercle du réservoir du liquide à fumée. ♦ Remplissez le réservor de liquide à fumée d'ANTARI ou d'un autre liquide à fumée de haute qualité à base d'eau. Refermez le réservoir.
  • Page 9 FAN. Utiliser la commande ENTER(volume) pour confirmer la selection. Utiliser la commande ON / OFF ♦ Toute machines à fumée dégage une condensation autour de son bec de sortie qui pourrait mener à une (manual) pour allumer. accumulation d'humidité au-dessus de l'appareil. Prenez cela en considération lors du choix de l'emplacement 2.
  • Page 10 A correspond exactement à cette adresse initiale DMX. En général, les machines à fumée d’Antari contrôlés par DMX ont les données de puissance suivantes: 1. Température de fonctionnement moyenne = 250ºC 2. Durée d’intervalle avec un débit de fumée maximal env. 30 secondes 3.
