Z-1200II USER MANUAL
Z-1200II BEDIENUNGSANLEITUNG
Mode D'Emploi des Z-1200II Machines à Fumée
Congratulations on the purchase of your new
ANTARI Z-SERIES II FOG MACHINE.
Wir beglückwünschen Sie zum Kauf Ihres neuen ANTARI Z-SERIES NEBELGERÄTES.
Nous vous félicitons pour l'achat de votre nouvelle
Z-SERIES machine à fumée d'ANTARI.
Read and save these instructions
♦ Bitte lesen Sie diese Anweisungen und bewahren Sie sie gut auf
♦ Lisez et Gardez ces instructions
 2005 Antari Lighting and Effects Ltd.
User Manual

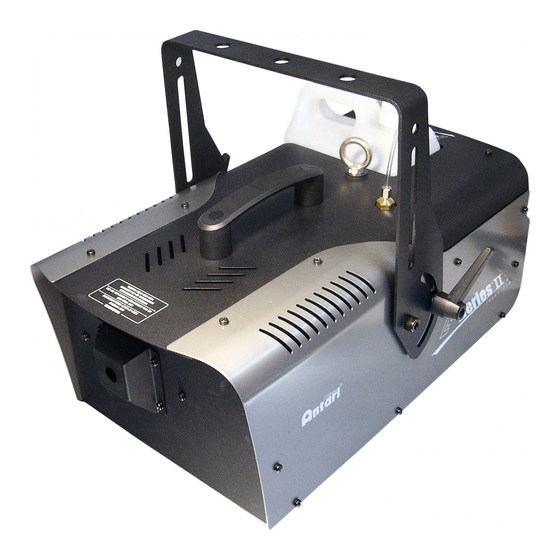

Antari Z 1200II Fog Machine
Congratulations on the purchase of your new
ANTARI Z-Series II FOG MACHINE.
Introduction
Thank you for choosing ANTARI Z-Series II Fog Machine. You now own a rugged and powerful state-of-
the-art machine. Prior to use, we suggest that you carefully read all of the instructions. By following the
suggestions found in this user manual, you can look forward to the reliable and satisfactory performance of
your ANTARI Fog Machine for years to come.
Please follow these operation, safety and maintenance instructions to ensure a long and safe life for your
fog machine.
CAUTION:
Risk of electric shock. Disconnect the appliance from the electric supply before refilling liquid, cleaning or
performing maintenance on the machine.
Danger of Electric Shock
Keep this device dry.
For inside use only. Not designed for outside use.
For the 110V models, use 3-prong grounded electrical outlet only. Prior to use take care to determine that
the unit is installed at the rated voltage.
Always unplug your ANTARI Z-Series II Fog Machine before filling its tank.
Always keep fog machine in upright position.
Turn off or unplug the machine when not in use.
This machine is not water-proof. If moisture, water, or fog fluid gets inside the housing, immediately unplug
the unit and contact a service technician or your ANTARI dealer before using it again.
No user serviceable parts inside. Refer to your ANTARI dealer or other qualified service personnel.
Danger of Burns
For adult use only and must be installed out of the reach of children. Never leave the unit running
unattended.
Never aim the output nozzle directly at people.
Fog machine output is very hot. Avoid coming within 60 cm of the output nozzle during operation.
Locate the fog machine in a well-ventilated area. Never cover the unit's vents. In order to guarantee
adequate ventilation, allow a free air space of at least 20 cm around the sides and top of the unit.
Never aim the output nozzle at open flames.
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z 1200II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Antari Z 1200II

  • Page 1 Introduction ANTARI Z-SERIES II FOG MACHINE. Thank you for choosing ANTARI Z-Series II Fog Machine. You now own a rugged and powerful state-of- Wir beglückwünschen Sie zum Kauf Ihres neuen ANTARI Z-SERIES NEBELGERÄTES. the-art machine. Prior to use, we suggest that you carefully read all of the instructions. By following the suggestions found in this user manual, you can look forward to the reliable and satisfactory performance of Nous vous félicitons pour l’achat de votre nouvelle...
  • Page 2: Operation

    Never drink fog liquid. If it is ingested, call a doctor immediately. If fog liquid comes in contact with skin or damage the unit. Return the machine to your ANTARI dealer. eyes, rinse thoroughly with water. Specification Note: Pay attention to all warning labels and instructions printed on the exterior of your ANTARI Fog Machine Model Number Z-1200II Power Supply...
  • Page 3: Maintenance

    Note: In the example above, if the machine were assigned the DMX address of 124, Channel A would correspond to DMX address 124. In general, Antari fog machines with onboard DMX conform to the following performance specifications: 1. Average Operating temperature = 250ºC 2.
  • Page 4: Bedienung

    Betrieb ohne Nebelfluid führt zu Pumpenschäden und zur Überhitzung des Heizelementes. ♦ Sollte Ihr ANTARI Nebelgerät einmal nicht mehr ordnungsgemäß arbeiten, schalten Sie es bitte sofort ab. Einleitung Entleeren Sie den Tank vollständig, verpacken Sie das Gerät sorgfältig (am besten in der Originalverpackung) und schicken Sie es bei Ihrem ANTARI-Händler ein.
  • Page 5: Wartung

    Reinigungsanleitung beschrieben. Dadurch vermeinden Sie, daß Partikel innerhalb der Pumpe oder der Stecker das Modell ANTARI Z-1200II fernbedienen läßt. Mit dem Intervallknopf kann die Zeit zwischen den Nebelproduktionen eingestellt werden, wenn der Timer aktiviert ist. Der Bereich beträgt 10 Sekunden ~ 250 Heizung kondensieren.
  • Page 6 Kanal A Introduction Nous vous remercions d’avoir choisi une machine à fumée d’ANTARI Z. Vous êtes en possession d’un produit robuste et puissant. En vue d’utiliser correctement votre nouvel appareil, veuillez lire attentivement ce mode d’emploi. Si vous respectez les instructions suivantes, vous profiterez d’une performance solide et convaincante de votre machine à...
  • Page 7: Installation

    Le bouton rouge CONTINOUS cause que l’appareil ait une production constante de fumée. Pour activer ♦ Remplissez le réservor de liquide à fumée d'ANTARI ou d'un autre liquide à fumée de haute qualité à base cette fonction, pressez le bouton rouge. Le bouton volume peut être utilisé pour régler le volume du d'eau.
  • Page 8 S’il vous plaît faites attention que si la machine était codée sur l’adresse initiale DMX 124 dans l’exemple en haut, le canal A correspond exactement à cette adresse initiale DMX. En général, les machines à fumée d’Antari contrôlés par DMX ont les données de puissance suivantes: 1. Température de fonctionnement moyenne = 250ºC 2.
