INSTALLING FILAMENT GUIDE TUBE AND SPOOL HOLDER

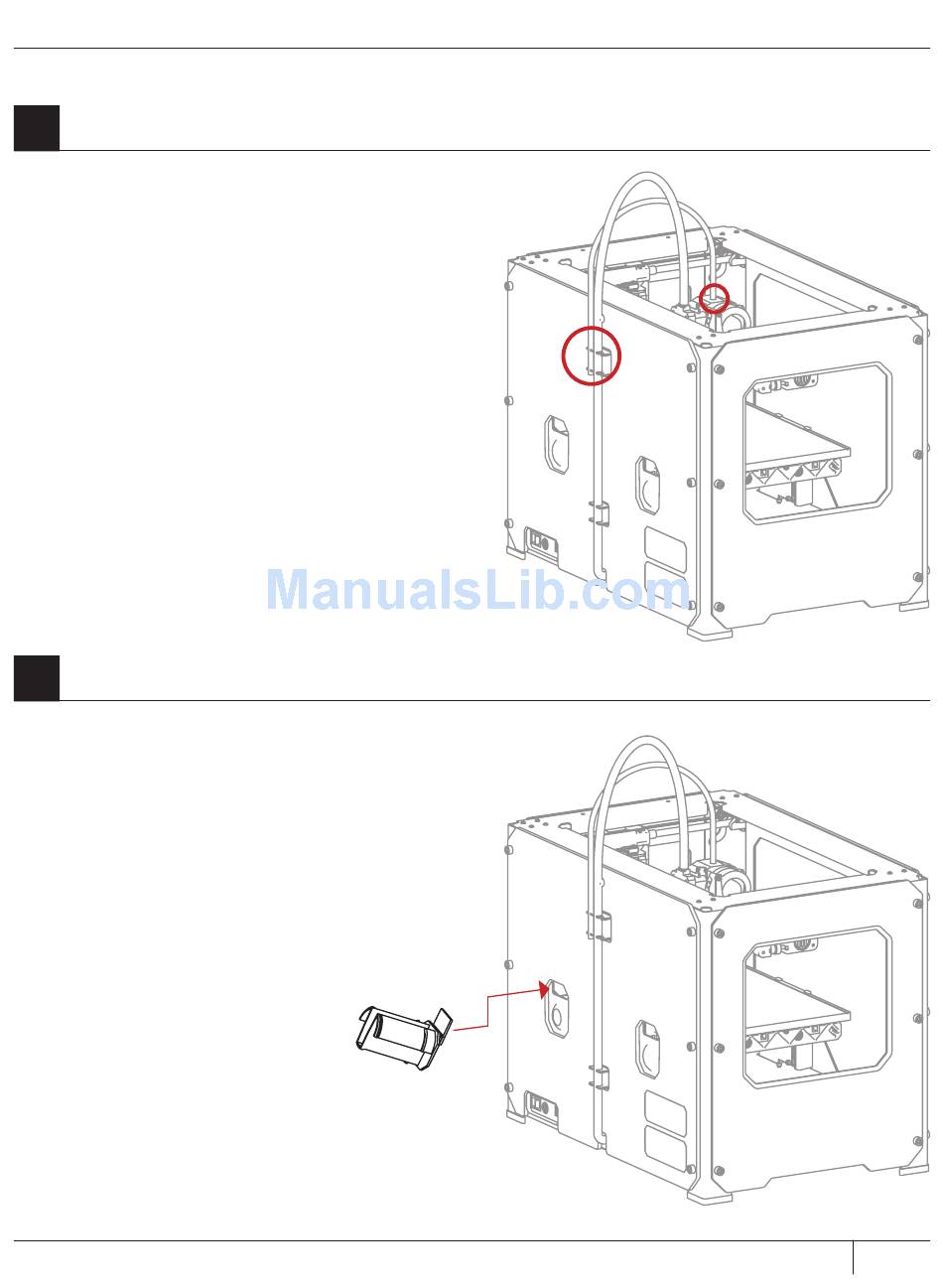

Installing the Filament Guide Tube
5
5a. Locate the filament guide tube. Insert one
end into the hole at the top of the extruder
and push the tube in as far as it will go.
5b. Insert the other end of the filament guide
tube into the left guide tube holder [when
viewed from the back] on the back of the
MakerBot Replicator 2. Make sure that the
end of the filament guide tube is flush with
the bottom of the guide tube holder. The
filament guide tube should not hang down
past the bottom of the guide tube holder.
Installing the Spool Holder
6
6a. Locate the spool holder. Tilt the spool
holder and insert the square end into
the left side opening on the back of the
MakerBot Replicator 2 [when viewed from
the back].
