Icom IC-F2721 Service Manual page 16

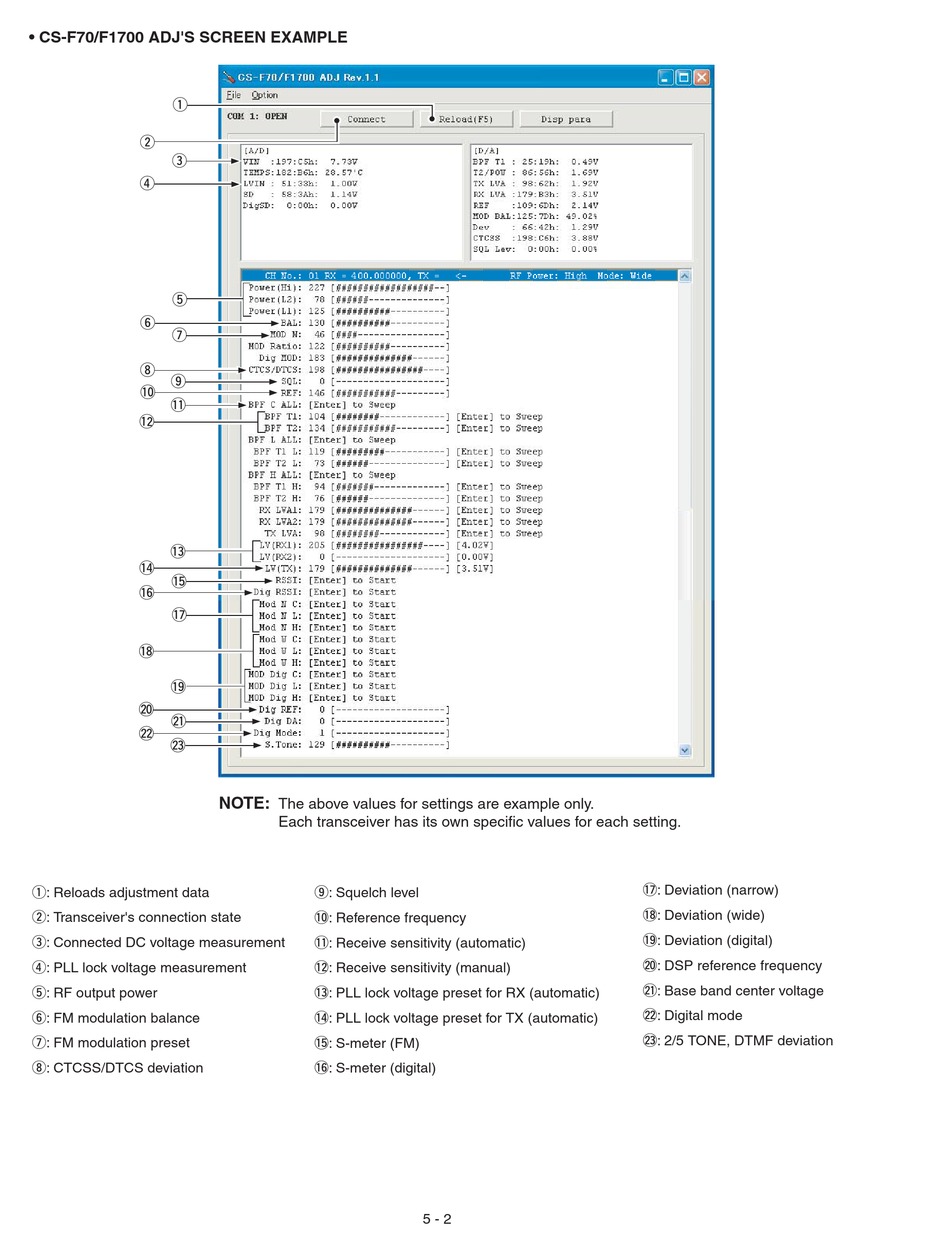

• CS-F70/F1700 ADJ'S SCREEN EXAMPLE
q
w
e
r
t
y
u
i
o
!0
!1
!3
!4
!5
!6
!7
!8
!9
@0
@1
@2
@3
q: Reloads adjustment data
w: Transceiver's connection state
e: Connected DC voltage measurement
r: PLL lock voltage measurement
t: RF output power
y: FM modulation balance
u: FM modulation preset
i: CTCSS/DTCS deviation
NOTE:
The above values for settings are example only.
Each transceiver has its own specific values for each setting.
o: Squelch level
!0 : Reference frequency
!1 : Receive sensitivity (automatic)
!2 : Receive sensitivity (manual)
!3 : PLL lock voltage preset for RX (automatic)
!4 : PLL lock voltage preset for TX (automatic)
!5 : S-meter (FM)
!6 : S-meter (digital)
5 - 2
!7 : Deviation (narrow)
!8 : Deviation (wide)
!9 : Deviation (digital)
@0 : DSP reference frequency
@1 : Base band center voltage
@2 : Digital mode
@3 : 2/5 TONE, DTMF deviation
