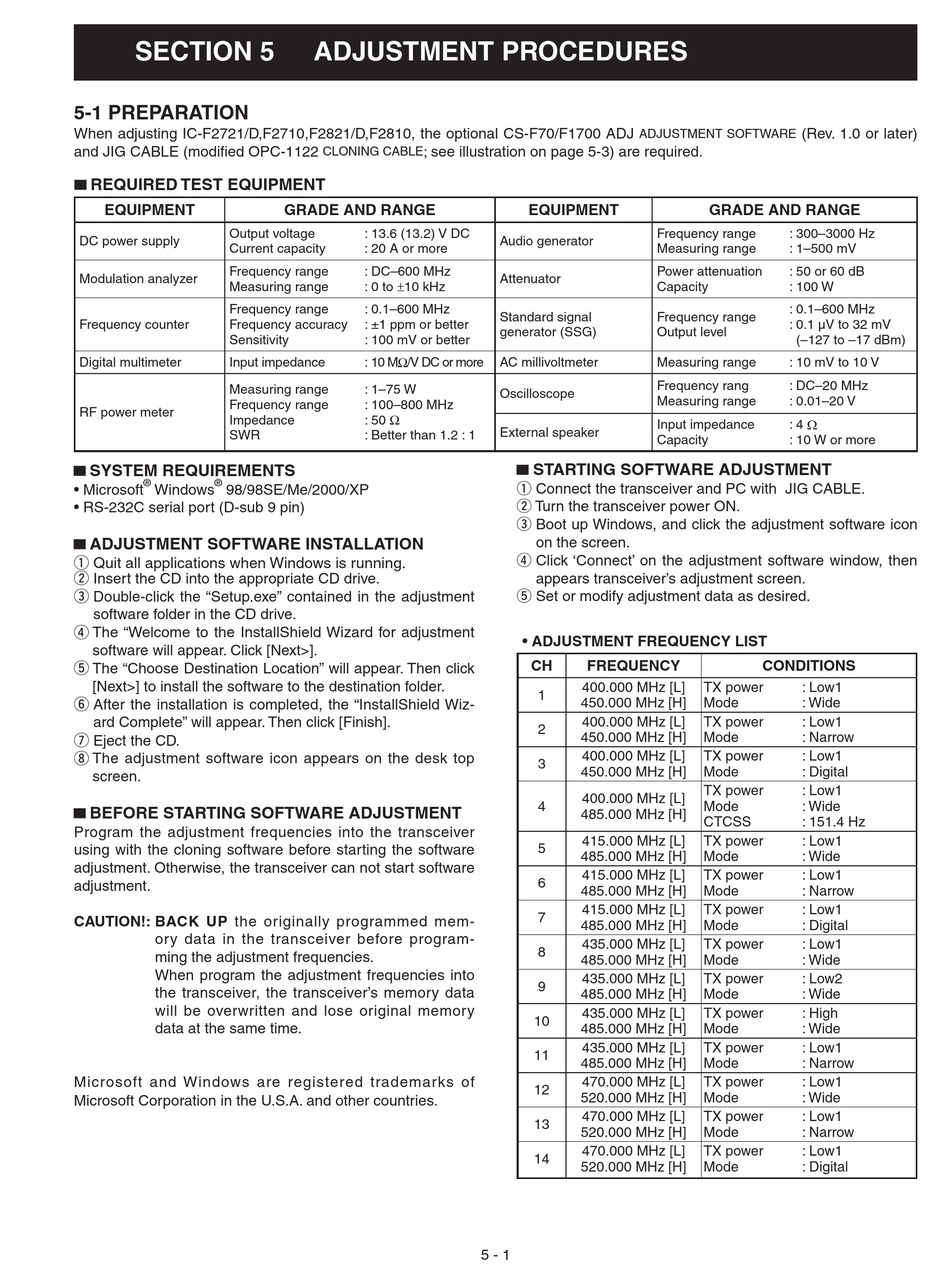

SECTION 5

5-1 PREPARATION

When adjusting IC-F2721/D,F2710,F2821/D,F2810, the optional CS-F70/F1700 ADJ
and JIG CABLE (modifi ed OPC-1122
▄ REQUIRED TEST EQUIPMENT
EQUIPMENT
Output voltage
DC power supply
Current capacity
Frequency range
Modulation analyzer
Measuring range
Frequency range
Frequency counter Frequency accuracy
Sensitivity
Digital multimeter Input impedance
Measuring range
Frequency range
RF power meter
Impedance
SWR
▄ SYSTEM REQUIREMENTS
® ®
• Microsoft Windows 98/98SE/Me/2000/XP
• RS-232C serial port (D-sub 9 pin)
▄ ADJUSTMENT SOFTWARE INSTALLATION
q Quit all applications when Windows is running.
w Insert the CD into the appropriate CD drive.
e Double-click the "Setup.exe" contained in the adjustment
software folder in the CD drive.
r The "Welcome to the InstallShield Wizard for adjustment
software will appear. Click [Next>].
t The "Choose Destination Location" will appear. Then click
[Next>] to install the software to the destination folder.
y After the installation is completed, the "InstallShield Wiz-
ard Complete" will appear. Then click [Finish].
u Eject the CD.
i The adjustment software icon appears on the desk top
screen.
▄ BEFORE STARTING SOFTWARE ADJUSTMENT
Program the adjustment frequencies into the transceiver
using with the cloning software before starting the software
adjustment. Otherwise, the transceiver can not start software
adjustment.
CAUTION!: BACK UP the originally programmed mem-
ory data in the transceiver before program-
ming the adjustment frequencies.
When program the adjustment frequencies into
the transceiver, the transceiver's memory data
will be overwritten and lose original memory
data at the same time.
Microsoft and Windows are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.

ADJUSTMENT PROCEDURES

; see illustration on page 5-3) are required.
CLONING CABLE
GRADE AND RANGE
: 13.6 (13.2) V DC
: 20 A or more
: DC–600 MHz
: 0 to ±10 kHz
: 0.1–600 MHz
: ±1 ppm or better
: 100 mV or better
: 10 MΩ/V DC or more
: 1–75 W
: 100–800 MHz
: 50 Ω
: Better than 1.2 : 1
ADJUSTMENT SOFTWARE
EQUIPMENT
Frequency range
Audio generator
Measuring range
Power attenuation
Attenuator
Capacity
Standard signal Frequency range
generator (SSG) Output level
AC millivoltmeter Measuring range
Frequency rang
Oscilloscope
Measuring range
Input impedance
External speaker
Capacity
▄ STARTING SOFTWARE ADJUSTMENT
q Connect the transceiver and PC with JIG CABLE.
w Turn the transceiver power ON.
e Boot up Windows, and click the adjustment software icon
on the screen.
r Click 'Connect' on the adjustment software window, then
appears transceiver's adjustment screen.
t Set or modify adjustment data as desired.
• ADJUSTMENT FREQUENCY LIST
CH FREQUENCY
400.000 MHz [L]
1
450.000 MHz [H]
400.000 MHz [L]
2
450.000 MHz [H]
400.000 MHz [L]
3
450.000 MHz [H]
400.000 MHz [L]
4
485.000 MHz [H]
415.000 MHz [L]
5
485.000 MHz [H]
415.000 MHz [L]
6
485.000 MHz [H]
415.000 MHz [L]
7
485.000 MHz [H]
435.000 MHz [L]
8
485.000 MHz [H]
435.000 MHz [L]
9
485.000 MHz [H]
435.000 MHz [L]
10
485.000 MHz [H]
435.000 MHz [L]
11
485.000 MHz [H]
470.000 MHz [L]
12
520.000 MHz [H]
470.000 MHz [L]
13
520.000 MHz [H]
470.000 MHz [L]
14
520.000 MHz [H]
5 - 1
