Device overview

2. Device overview

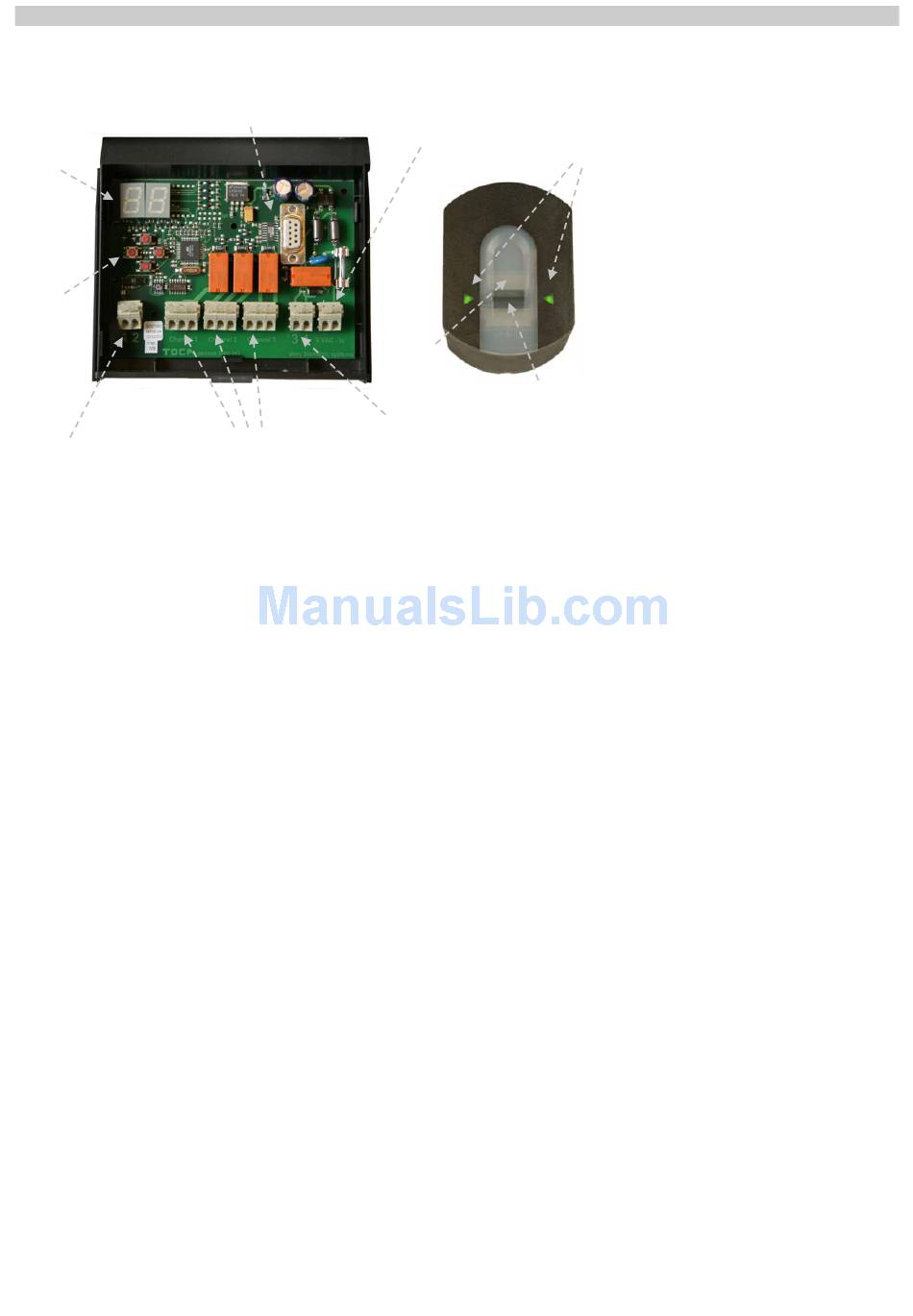

display
4 operation
keys
clamp 1 and 2
comes with one relay, ekey
(connection with
TOCAhome 3 and TOCAhome
outside unit)
pc with three relays in order
to connect door openers etc.
Your product is set up with a finger scanner. This finger scanner reads special characteristics of your
finger lines and uses them for identification. Each of your fingers is unique and differs from the fingers of
other persons.
Model ekey TOCAhome
This model provides 1 relay.
Model ekey TOCAhome 3
This model provides 3 relays. You can assign these relays to different fingers. This can be used for
example to switch a door opener, a garage opener or an alarm device.
Model ekey TOCAhome pc
Like TOCAhome 3 this model also provides 3 relays. Moreover, you can connect the inside unit to a
personal computer using a serial interface cable.
serial interface (only for
ekey TOCAhome pc
connecting clamp for
ekey TOCA home
(connection with
power supply
sensor
status
display
clamp 3 and 4
outside unit)
- 4 -
marking
arrows
